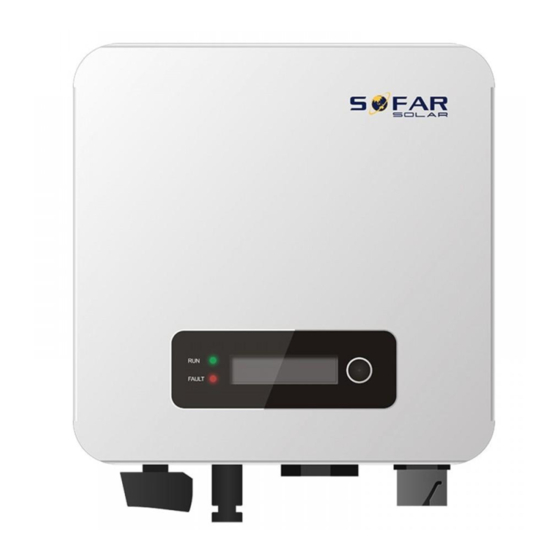

- Page 1 User manual Solar Grid-tied Inverter Product Model: SOFAR 1.1K-3.3KTL-G3 S h e n z h e n S O FA R S O L A R C O . , L t d .
-
Page 2: Table Of Contents
User manual SOFAR 1.1K~3.3KTL-G3 Contents Preface............................. III 1. Basic safety information....................- 1 - 1.1. Safety instructions....................- 1 - 1.2. Symbols and signs....................- 4 - 2. Product characteristics...................... - 6 - 2.1. Product dimensions..................... - 6 - 2.2. Function characteristics..................- 8 - 2.3. - Page 3 User manual SOFAR 1.1K~3.3KTL-G3 Notice This manual contains important safety instructions that must be followed during installation and maintenance of the equipment. Save these instructions! This manual must be considered as an integral part of the equipment. The manual must always accompany the equipment,even when it is transferred to another user or field.
-
Page 4: Preface
User manual SOFAR 1.1K~3.3KTL-G3 Preface Outline Please read the product manual carefully before installation,operation or maintenance.This manual contains important safety instructions and installation instructions that must be followed during installation and maintenance of the equipment. Scope This product manual describes the installation,electrical connections, commissioning,maintenance and troubleshooting of SOFAR 1.1K~3.3KTL-G3 inverters: 1100TL-G3... - Page 5 User manual SOFAR 1.1K~3.3KTL-G3 Danger indicates a hazardous situation which, if not avoided, will result in death or serious injury. Danger Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury. Warning Caution indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
-
Page 6: Basic Safety Information
User manual SOFAR 1.1K~3.3KTL-G3 1. Basic safety information If you have any question or problem when you read the following information, please contact Shenzhen SOFARSOLAR Note Co., Ltd. Outlines of this chapter Safety instruction It mainly introduce the safety instruction when install and operate the equipment. - Page 7 User manual SOFAR 1.1K~3.3KTL-G3 Qualified persons The customer must make sure the operator has the necessary skill and training to do his/her job.Staff in charge of using and maintaining the equipment must be skilled,aware and mature for the described tasks and must have the reliability to correctly interpret what is described in the manual.
- Page 8 User manual SOFAR 1.1K~3.3KTL-G3 SOFARSOLAR Co.Ltd for help if necessary. Transport of the equipment, especially by road, must be carried out with by suitable ways and means for protecting the components (in particular, the electronic components) from violent shocks, humidity, vibration, etc. Electric connection Please comply with all the current electrical regulations about accident prevention in dealing with the solar invert.
-
Page 9: Symbols And Signs
User manual SOFAR 1.1K~3.3KTL-G3 Maintenance and repair Before any repair work, turn OFF the AC circuit breaker between the inverter and electrical grid first, then turn OFF the DC switch. After turning OFF the AC circuit breaker and DC switch, wait for 5 minutes at least before carrying out any maintenance or repair Danger work. - Page 10 User manual SOFAR 1.1K~3.3KTL-G3 Signs on the inverter There are some symbols which are related to security on the inverter. Please read and understand the content of the symbols, and then start the installation. There is a residual voltage in the inverter! Before opening the equipment, operator should wait for five minutes to ensure the capacitor is discharged completely.
-
Page 11: Product Characteristics
User manual SOFAR 1.1K~3.3KTL-G3 2. Product characteristics Outlines of this chapter Product dimensions It introduces the field of use, and the overall dimensions of SOFAR 1.1K~3.3KTL-G3 inverters. Function description It introduces how SOFAR 1.1K~3.3KTL-G3 inverters work and the function modules inside. Efficiency curves It introduces the efficiency curves of in the inverter. - Page 12 User manual SOFAR 1.1K~3.3KTL-G3 during normal operation must not exceed the limits specified in the technical specifications. Only the photovoltaic modules can be connected to the input of the inverter (do not connect batteries or other sources of power supply). The choice of optional parts of inverter should be made by a qualified technician who knows the installation conditions clearly.
-
Page 13: Function Characteristics
User manual SOFAR 1.1K~3.3KTL-G3 Figure 2-4 Bracket dimensions of SOFAR 1.1K~3.3KTL-G3 Labels on the equipment The labels must NOT be hidden with objects and extraneous parts (rags,boxes,equipment,etc.);the y must be cleaned regularly and kept visible at all times. 2.2. Function characteristics DC power generated by PV array is filtered through Input Board before entering into Power Board. - Page 14 User manual SOFAR 1.1K~3.3KTL-G3 Function module A. Energy management unit This control can be used to switch the inverter on/off through an external (remote) control. B. Feeding reactive power into the grid The inverter is able to produce reactive power and can therefore feed it into the grid through the setting of the phase shift factor.
-
Page 15: Efficiency Curve
User manual SOFAR 1.1K~3.3KTL-G3 Electrical block diagram Figure 2-5 Electrical block diagram 2.3. Efficiency curve - 10 - Copyright © Shenzhen SOFARSOLAR Co., Ltd... -
Page 16: Installation
User manual SOFAR 1.1K~3.3KTL-G3 3. Installation Outlines of this chapter This topic describes how to install the SOFAR 1.1K~3.3KTL-G3 . Installation notes Do NOT install the SOFAR 1.1K~3.3KTL-G3 on flammable material. Do NOT install the SOFAR 1.1K~3.3KTL-G3 in an area used to store Flammable or explosive material. - Page 17 User manual SOFAR 1.1K~3.3KTL-G3 Therefore, check the outer packing materials before installing the inverter. Check the outer packing materials for damage, such as holes and cracks. If any damage is found, do not unpack the SOFAR 1.1K~3.3KTL-G3 and contact the dealer as soon as possible.
- Page 18 User manual SOFAR 1.1K~3.3KTL-G3 M5Hexagon screws 2pcs Expansion bolts 3pcs M5 flat washer 5pcs spring shim 5pcs Self-tapping screw 3pcs Manual 1pcs The warranty card 1pcs Outgoing inspection report 1pcs Registration Form 1pcs AC output terminal 1pcs - 13 - Copyright ©...
-
Page 19: Product Overview
User manual SOFAR 1.1K~3.3KTL-G3 485 terminal (2pin) 1pcs Stick Logger 1pcs M4X14 Cross round head triple set screw（Only for DC 1pcs switch lock） 3.3. Product Overview SOFAR 1.1K~3.3KTL-G3 inverter is 100% strictly inspected before package and delivery. It is forbidden to put the SOFAR 1.1K~3.3KTL-G3 inverter upside down during delivery. -
Page 20: Tools
User manual SOFAR 1.1K~3.3KTL-G3 impossible to twist the DC switch from OFF to ON, or ON to OFF. Remove the screw before turning the DC switch from OFF to ON or ON to OFF. 3.4. Tools Prepare tools required for installation and electrical connections. Table 3-3 shows the tools required for installation and electrical connections. -
Page 21: Determining The Installation Position
User manual SOFAR 1.1K~3.3KTL-G3 Measuring tape Used to measure distances Used to ensure that the rear panel Level is properly installed ESD gloves Operators wear Safety goggles Operators wear Anti-dust respirator Operators wear 3.5. Determining the Installation Position Determine an appropriate position for installing the SOFAR 1.1K~3.3KTL-G3 inverter. - Page 22 User manual SOFAR 1.1K~3.3KTL-G3 Figure 3-4 clearance for single SOFAR 1.1K~3.3KTL-G3 Inverter Figure 3-5 Installation of multiple SOFAR 1.1K~3.3KTL-G3 inverter - 17 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
-
Page 23: Moving The Sofar 1.1K~3.3Ktl-G3
User manual SOFAR 1.1K~3.3KTL-G3 3.6. Moving the SOFAR 1.1K~3.3KTL-G3 This topic describes how to move the to the installation position Horizontally SOFAR 1.1K~3.3KTL-G3. Step 1 Open the packaging, insert hands into the slots on both sides of the inverter and hold the handles, as shown in Figure 3-6 and Figure 3-7. Figure 3-6 Moving the inverter (1) Figure 3-7 Moving the inverter (2) Step 2 Lift the SOFAR 1.1K~3.3KTL-G3 from the packing case and move it... -
Page 24: Installing Sofar 1.1K~3.3Ktl-G3
User manual SOFAR 1.1K~3.3KTL-G3 to the installation position. To prevent device damage and personal injury, keep balance when moving the inverter because the inverter is heavy. Do not put the inverter with its wiring terminals contacting the floor because the power ports and signal ports are not designed to support the weight of the inverter. - Page 25 User manual SOFAR 1.1K~3.3KTL-G3 Figure 3-9 - 20 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
-
Page 26: Electrical Connections
User manual SOFAR 1.1K~3.3KTL-G3 4. Electrical Connections Outlines of this chapter This topic describes the SOFAR 1.1K~3.3KTL-G3 inverter electrical connections. Read this part carefully before connecting cables. NOTE: Before performing electrical connections, ensure that the DC switch is OFF. Since the stored electrical charge remains in a capacitor after the DC switch is turned OFF. So it’... -
Page 27: Electrical Connection
User manual SOFAR 1.1K~3.3KTL-G3 Interface PV input interface DVCC AC output interface DVCC USB interface DVCA RS485 interface DVCA CT interface DVCA Logic interface DVCA WiFi/GPRS/Ethernet interface DVCA 4.1. Electrical connection Figure 4-1 Shows the flowchart for connecting cables to the inverter. Connect Connect PGND Start... - Page 28 User manual SOFAR 1.1K~3.3KTL-G3 stripper, as shown in Figure 4-2. Figure 4-2 Preparing a ground cable (1) Note： L2 is 2 to 3mm longer than L1 Step 2 Insert the exposed core wires into the OT terminal and crimp them by using a crimping tool, as shown in Figure 4-3.
-
Page 29: Connecting Dc Input Power Cables
User manual SOFAR 1.1K~3.3KTL-G3 1.M5 screw、2.OT Terminal、3.Tapped hole 4.3. Connecting DC Input Power Cables Table 4-1 Recommended DC input cable specifications Cross-Sectional Area (mm ²) External Cable Diameter(mm) Range Recommended Value 4.0~6.0 4.5~7.8 Step 1 Remove cable glands from the positive and negative connectors. Step 2 Remove the insulation layer with an appropriate length from the positive and negative power cables by using a wire stripper as show in Figure 4-5. - Page 30 User manual SOFAR 1.1K~3.3KTL-G3 Note: L2 is 2 to 3 mm longer than L1. Step 3 Insert the positive and negative power cables into corresponding cable glands. Step 4 Insert the stripped positive and negative power cables into the positive and negative metal terminals respectively and crimp them using a clamping tool.
-
Page 31: Connecting Ac Output Power Cables
User manual SOFAR 1.1K~3.3KTL-G3 Note: Insert the stoppers into the unused DC connectors. Follow-up Procedure To remove the positive and negative connectors from the inverter, insert a removal wrench into the bayonet and press the wrench with an appropriate strength, as shown in Figure 4-8. - Page 32 User manual SOFAR 1.1K~3.3KTL-G3 Figure 4-9 NOT allowed: connect loads between inverter and circuit breaker Table 4-2 Recommended AC output cable specifications Model SOFAR SOFAR SOFAR SOFAR SOFAR SOFAR 1100TL-G3 1600TL-G3 2200TL-G3 2700TL-G3 3000TL-G3 3300TL-G3 Cable(Copper) ≧4mm² ≧4mm² ≧4mm² ≧6mm² ≧6mm²...
- Page 33 User manual SOFAR 1.1K~3.3KTL-G3 Inverter is equipped with two types of IP66 AC connector Type connector Ⅰ are randomly equipped with one), and the AC output cable needs Type connector Ⅱ to be wired by the customer. The appearance of is shown in figure AC connector 4-11.
- Page 34 User manual SOFAR 1.1K~3.3KTL-G3 Step 3 Connect AC output cable as per the following requirements: Connect the yellow-green wire to the hole labeled "PE", fasten the wire using an Allen wrench; Connect the brown wire to the hole labeled "L", fasten the wire using an Allen wrench; Connect the blue wire to the hole labeled "N", fasten the wire using an Allen wrench;...
- Page 35 User manual SOFAR 1.1K~3.3KTL-G3 Removing the AC connector Pull out the AC connector by rotating the knob counterclockwise. Figure 4-17 Make sure the grid is disconnected before removing the AC connector. Caution instructions ModeⅡ connector installation Step 1 Select appropriate cables Step 2 Disassemble the AC connector according to Table 4-2, Remove the according to the figure shown below: insert...
- Page 36 User manual SOFAR 1.1K~3.3KTL-G3 Step 3 Connect AC output cable as per the following requirements: Connect the yellow-green wire to the hole labeled "PE", fasten the wire using an Cross screwdriver; Connect the brown wire to the hole labeled "L", fasten the wire using an Cross screwdriver;...
-
Page 37: Rs485,Ct,Inverter Logic Interface Connection
User manual SOFAR 1.1K~3.3KTL-G3 Removing the AC connector Hold the button to unlock and rotate the knob counterclockwise to the unlock position, then pull out the AC connector. Figure 4-23 Hold the button to unlock Make sure the grid is disconnected before removing the AC connector. - Page 38 User manual SOFAR 1.1K~3.3KTL-G3 Table 4-3 Recommended communication cable size are shown below,The wiring methods are the same for RS485 and CT,this part describes their wiring methods and logic interface wiring method. Communication function RS485 Cable size 0.5~1.5mm² 0.5~1.5mm² Outside diameter 2.5~6mm 2.5~6mm Step1 Remove the communication waterproof cover using a screwdriver;...
- Page 39 User manual SOFAR 1.1K~3.3KTL-G3 Step3 Select appropriate cable according Table4-2,remove the insulation layer using a wire stripper, the length of the wire core is about 6mm,insert the cable through the cable gland and waterproof cover, according to Table4-4,connect the wires as per the labels, and secure the wire using a slotted screwdriver.as shown in the figure below: Table 4-4 Function description of the communication terminals Type...
- Page 40 User manual SOFAR 1.1K~3.3KTL-G3 response modes (DRMs). The inverter will detect and initiate a response to all supported demand response commands within 2 s. The inverter will continue to respond while the mode remains asserted. Table 4-5 Function description of the DRMs terminal Pin NO.
- Page 41 User manual SOFAR 1.1K~3.3KTL-G3 Table 4-6 Function description of the terminal Pin NO. Pin name Description Connected to (RRCR) Relay contact 1 input K1 - Relay 1 output Relay contact 2 input K2 - Relay 2 output Relay contact 3 input K3 - Relay 3 output Relay contact 4 input K4 - Relay 4 output...
- Page 42 User manual SOFAR 1.1K~3.3KTL-G3 Table 4-8 Function description of the terminal Pin NO. Pin name Description Connected to (RRCR) Relay contact 1 input K1 - Relay 1 output Not Connected Not Connected Not Connected Not Connected Not Connected Not Connected K1 - Relay 1 output Not Connected Not Connected...
-
Page 43: Wifi/Gprs Module Installation Procedure
User manual SOFAR 1.1K~3.3KTL-G3 Figure 4-31 4.6. WIFI/GPRS module installation procedure Step1: Remove wifi/GPRS waterproof cover using screw driver. Step2: Install WIFI/GPRS module. Stpe3: Fasten WIFI/GPRS module using screws. 4.7. Communication method SOFAR 1.1K~3.3KTL-G3 gird-connected inverters offer RS485 (standard) and Wi-Fi (optional) communication modes: A. - Page 44 User manual SOFAR 1.1K~3.3KTL-G3 Figure 4-32 WI-FI Refer to the figure shown below: (wireless function required for the PC).(NOTE4) Figure 4-33 The operation information (generated energy, alert, operation status) of the inverter can be transferred to PC or uploaded to the server via Wi-Fi. You can register on the website.
- Page 45 User manual SOFAR 1.1K~3.3KTL-G3 inverters, refer to section 4.5 of this manual for wire connection methods. Connect the TX+ and TX- of the inverter to the TX+ and TX- of the RS485→USB adapter; connect the USB port of the adapter to the computer. A maximum of 31 inverters can be connected in one daisy chain.(NOTE2) Figure 4-34 2.
- Page 46 User manual SOFAR 1.1K~3.3KTL-G3 differentiate the inverters. Note3: S/N number of the Wi-Fi module is located on the side. - 41 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
-
Page 47: Commissioning Of Inverter
User manual SOFAR 1.1K~3.3KTL-G3 5. Commissioning of inverter 5.1. Safety inspection before commissioning Ensure that DC and AC voltages are within the acceptable range of the inverter. Attention 5.2. Start inverter Step 1: Turn ON the DC switch.(optional) Step 2: Turn ON the AC circuit breaker. When the DC power generated by the solar array is adequate, the SOFAR 1.1K~3.3KTL-G3inverter will start automatically. -
Page 48: Operation Interface
User manual SOFAR 1.1K~3.3KTL-G3 6. Operation interface Outlines of this chapter This section introduces the display, operation, buttons and LED indicator lights of SOFAR 1.1K~3.3KTL-G3 Inverter. 6.1. Operation and Display Panel Buttons and Indicator lights Button: Long press the button to enter the next menu or confirm the selection Short press the button to achieve the next page turning function Turn down the loop once to exit Indicator Lights:... -
Page 49: Standard Interface
User manual SOFAR 1.1K~3.3KTL-G3 6.2. Standard Interface - 44 - Copyright © Shenzhen SOFARSOLAR Co., Ltd... - Page 50 User manual SOFAR 1.1K~3.3KTL-G3 When power-on, LCD interface displays INITIALIZING, refer below picture. When control board successfully connected with communication board, the LCD display the current state of the inverter，display as shown in the figure below. - 45 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
-
Page 51: Main Interface
User manual SOFAR 1.1K~3.3KTL-G3 Inverter states includes: wait、check、normal、fault and permanent Wait:Inverter is waiting to Check State at the end of reconnection time. In this state, grid voltage value is between the max and min limits and so on; If not, Inverter will go to Fault State or Permanent State. - Page 52 User manual SOFAR 1.1K~3.3KTL-G3 Normal ------Long press the button 1.Enter Setting 2.Event List 3.SystemInfo 4.Display Time 5.Software Update (A) “Enter Setting” Interface as below: 1.Enter Setting ------Long press the button 1.Set time 12.Set Safety Voltage 2.Clear Energy 13.Set Safety Frequency 3.Clear Events 14.Insulation Resistance 4.Set Country...
- Page 53 User manual SOFAR 1.1K~3.3KTL-G3 Clean the inverter of the total power generation. 3. Clear Events Clean up the historical events recorded in the inverter. 4. Set Country Set up the safety regulation country that meets the current use conditions and requirements.
- Page 54 User manual SOFAR 1.1K~3.3KTL-G3 Italy CEI0-16 Mexico LV UK-G98 FAR Arrete23 Greece island Denmark Tr322 EU EN50438 Wide-Range-60HZ IEC EN61727 Ireland EN504 5. On-Off Control Inverter on-off local control. 6. Enable Set Country Enable this option before setting the country. Attention: when inverter working for power generation over 24h, country setting is forbidden, it can only be set after LCD setting.
- Page 55 User manual SOFAR 1.1K~3.3KTL-G3 13. Set Safety Frequency 14. Insulation Resistance User can modify the above 4 parameters of the machine through the SD card, and the user needs to copy the parameter information that needs to be modified into the SD card in advance.
- Page 56 User manual SOFAR 1.1K~3.3KTL-G3 Event List is used to display the real-time event records, including the total number of events and each specific ID No. and happening time. User can enter Event List interface through main interface to check details of real-time event records, Event will be listed by the happening time, and recent events will be listed in the front.
-
Page 57: Update Software Online
Step 2 Insert the usb flash drive into the compute. Step 3 SOFAR SOLAR will send the Software code to the user who needs to update. After user receive the file,please decompressing file and cover the original file in usb flash drive. - Page 58 User manual SOFAR 1.1K~3.3KTL-G3 screen extinguish,then recover the communication waterproof and then turn on the DC breaker and AC breaker again,the inverter will enters the running state. User can check the current software version in Systemlnfo>>3.SoftVersion. - 53 - Copyright © Shenzhen SOFARSOLAR Co., Ltd...
-
Page 59: Trouble Shooting
User manual SOFAR 1.1K~3.3KTL-G3 7. Trouble shooting Outlines of this chapter This topic describes how to perform daily maintenance and troubleshooting to ensure long term proper operation of the inverter. 7.1. Trouble shooting This section contains information and procedures for solving possible problems with the inverter. - Page 60 User manual SOFAR 1.1K~3.3KTL-G3 monitoring. If an Earth Fault Alarm occurs, the fault will be displayed on the LCD screen, the red light will be on, and the fault can be found in the history of the fault. For the machine installed with Wi-Fi/GPRS, the alarm information can be seen on the corresponding monitoring website, and can also be received by the APP on the mobile phone.
- Page 61 User manual SOFAR 1.1K~3.3KTL-G3 automatically returns to normal operating status after correct adjustments. Input current is not Check the input mode(parallel mode/ ID10 IpvUnbalance balanced independent mode) setting of inverter according to Section 6.3 (C) 6.Input Mode of this user manual, If it’s incorrect, change it according to PvConfigSet Incorrect input...
- Page 62 User manual SOFAR 1.1K~3.3KTL-G3 then turn ON the “DC switch”. Check whether The bus voltage is ID27 VbusUnbalan the fault is rectified. If no, please contact not balanced technical support. Check the input mode (parallel mode/ independent mode) setting of inverter according ID28 DciOCP The Dci is too high...
- Page 63 User manual SOFAR 1.1K~3.3KTL-G3 Check the insulation resistance between the The insulation ID56 PvIsoFault PV array and earth(ground), if a short circuit resistance is too low occurs, rectify the fault. OverTempFault_ The inverter temp is Ensure the installation position and ID57 too high installation method meet the requirements of...
-
Page 64: Maintenance
User manual SOFAR 1.1K~3.3KTL-G3 Ensure the installation position and The inverter has installation method meet the requirements of OverTemp derated because of Section 3.4 of this user manual. Check whether ID81 Derating the temperature is the ambient temperature of the installation too high position exceeds the upper limit. - Page 65 User manual SOFAR 1.1K~3.3KTL-G3 should not be blocked by dust, dirt or any other items.Before the cleaning, make sure that the DC SWITCH is turned OFF and the circuit breaker between inverter and electrical grid is turned OFF. Wait at least for 5 minutes before the Cleaning. Inverter cleaning ...
-
Page 66: Technical Data
User manual SOFAR 1.1K~3.3KTL-G3 8. Technical data Outlines of this chapter This topic lists the technical specifications for all SOFAR 1.1K~3.3KTL-G3 inverters. 8.1. Input parameters (DC) SOFAR SOFAR SOFAR SOFAR SOFAR SOFAR Technical Data 1100TL- 1600TL- 2200TL- 2700TL- 3000TL- 3300TL- Recommended Max. -
Page 67: Output Parameters (Ac)
User manual SOFAR 1.1K~3.3KTL-G3 8.2. Output parameters (AC) SOFAR SOFAR SOFAR SOFAR SOFAR SOFAR Technical Data 1100TL- 1600TL- 2200TL- 2700TL- 3000TL- 3300TL- Rated Output power 1100W 1600W 2200W 2700W 3000W 3300W Max.Output power 1100VA 1600VA 2200VA 2700VA 3000VA 3300VA Rated Output 4.8A 9.6A 11.8A... -
Page 68: Efficiency,Protection And Communication
User manual SOFAR 1.1K~3.3KTL-G3 8.3. Efficiency,Protection and Communication SOFAR SOFAR SOFAR SOFAR SOFAR SOFAR Technical Data 1100TL- 1600TL- 2200TL- 2700TL- 3000TL- 3300TL- Max.Efficiency 97.5% 97.7% Euro Efficiency 96.9% 97.2% MPPT Efficiency >99.9% Self-consumption at <1W night Safety protection Anti islanding,RCMU,Ground fault monitoring EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3 Safety standards IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30), IEC 62109-1/2... -
Page 69: General Date
User manual SOFAR 1.1K~3.3KTL-G3 8.4. General Date SOFAR SOFAR SOFAR SOFAR SOFAR SOFAR Technical Data 1100TL- 1600TL- 2200TL- 2700TL- 3000TL- 3300TL- Topology Transformerless Ambient temperature -30~60℃ range Permissible humidity 0~100% range Noise figure <25dB DC Switch Optional Cooling Natural convection Max.Operating 2000m altitude... -
Page 70: Quality Assurance
User manual SOFAR 1.1K~3.3KTL-G3 9. Quality Assurance Standard warranty period The standard warranty period of inverter is 60 months (5 years).There are two calculation methods for the warranty period: 1. Purchase invoice provided by the customer: the first flight provides a standard warranty period of 60 months (5 years) from the invoice date;... - Page 71 User manual SOFAR 1.1K~3.3KTL-G3 they fail during the extended warranty period, customers need to purchase and replace them from the our company. Once the extended warranty service is purchased, our company will issue the extended warranty card to the customer to confirm the extended warranty period. Invalid warranty clause Equipment failure caused by the following reasons is not covered by the warranty: The "warranty card"...
- Page 72 User manual SOFAR 1.1K~3.3KTL-G3 Statement If you have purchased this product in Australia, you should be aware that this warranty is provided in addition to other rights and remedies held by a consumer at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
- Page 73 ADD: 401, Building 4, AnTongDa Industrial Park, District 68,XingDong Community, XinAn Street, BaoAn District, Shenzhen, GuangDong.P.R. China Email: service@sofarsolar.com Tel: 0510-6690 2300 Web: www.sofarsolar.com...
