9.4 Operation

9.4.1 EDID Data Inspection and Writing to the D-SUB Connector (Analog)
1) Connect the EDID data writing unit.
2) Create a unique directory in the PC, and copy all the files of service tool (Ver. 3.40) into that directory.
3) Start the service tool with file [Service2.EXE].

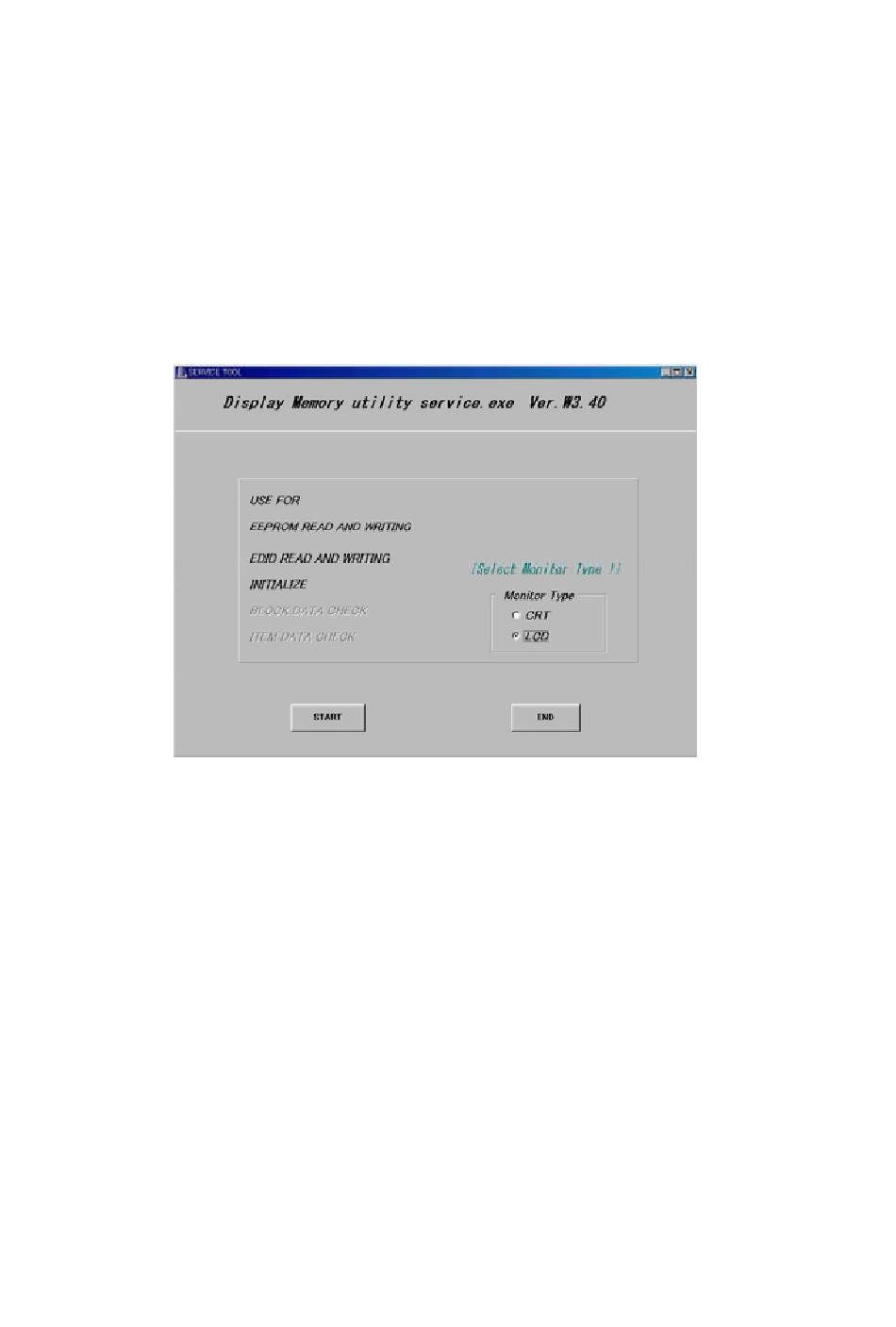

4) When the screen as shown below appears, click the [LCD] button of [Monitor Type] and press the
[START] button.
5-24
