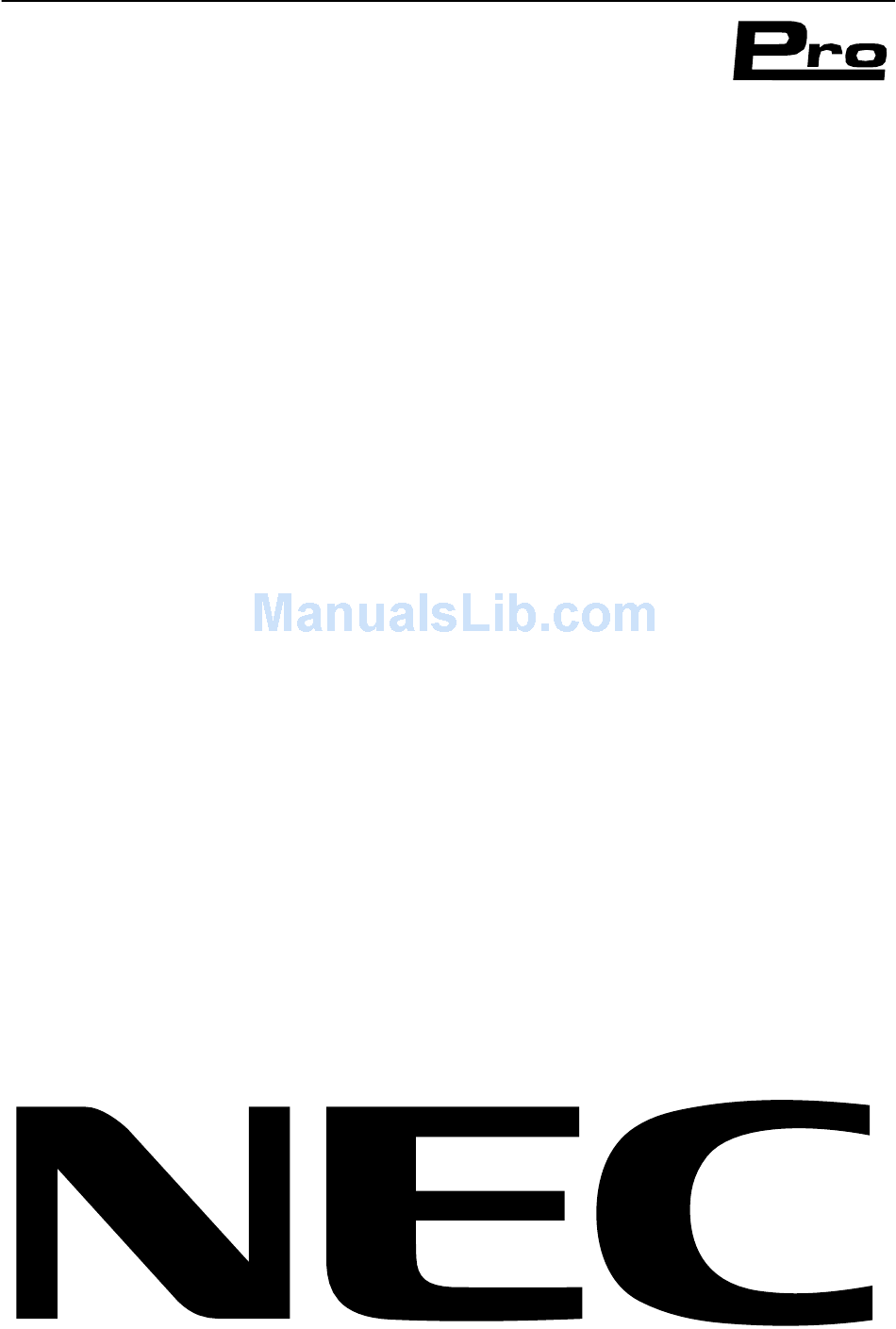

- Page 1 MultiSync 20WGX User’s Manual...
-
Page 2: Table Of Contents
Index Warning, Caution ........................English-1 Declaration ..........................English-1 Canadian Department of Communications Compliance Statement ........... English-2 Declaration of Conformity ......................English-2 Contents ............................English-3 Quick Start ..........................English-4 Controls ............................English-8 Recommended use ........................English-11 Specifications ..........................English-13 Features ............................English-14 Troubleshooting .......................... -
Page 3: English
NaViSet is a trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. MultiSync is a registered trademark of NEC Display Solutions, Ltd. in the countries of U.K., Italy, Austria, Netherlands, Switzerland, Sweden, Spain, Denmark, Germany, Norway and Finland. -
Page 4: Canadian Department Of Communications Compliance Statement
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Blvd, Suite 1100 Itasca, Illinois 60143 Tel. -
Page 5: Contents
Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync 20WGX Pro monitor with tilt/swivel adjust stand • Power Cord • Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male) • Video Signal Cable (DVI-D to DVI-D) •... -
Page 6: Figure C
Figure C.1 Figure C.2 DVI Cable A Type A Type DC-OUT* B Type Input2 (D-Sub) A Type Input1 (DVI) B Type Figure C.3 Figure C.3a Power Cord * NEC optional product attachment. Do not use this connector unless specified. English-4... - Page 7 6. Place the connector cover onto the back cabinet (Figure C.4). 7. Place all cables into the hooks (Figure C.5). 8. Place hands on each side if the monitor to tilt the LCD panel back 5° (Figure C.6). Figure C.4 Figure C.5 9.
-
Page 8: Remove Monitor Stand For Mounting
Tilt and Swivel Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1). NOTE: Handle with care when tilting and swivelling the monitor screen. Figure TS.1 Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1. -
Page 9: Flexible Arm Installation
5. Lift up the stand to unlatch the upper hooks and remove the stand (Figure M.4). 6. Remove the 2 screws on the top of the monitor (Figure M.5). The monitor is now ready for mounting in an alternate manner. 7. -
Page 10: Controls
Controls OSM (On-Screen Manager) control buttons on the front of the monitor function as follows: To access OSM menu, press any of the control buttons (MENU/EXIT, Left, Right, Down, Up). To change signal input, press the SELECT button. To change DV MODE, press the RESET/DV MODE button. NOTE: OSM must be closed in order to change signal input. -
Page 11: Menu Tools
Image Controls (Analog input only) LEFT / RIGHT Controls Horizontal Image Position within the display area of the LCD. DOWN / UP Controls Vertical Image Position within the display area of the LCD. H.SIZE Adjusts the horizontal size by increasing or decreasing this setting. FINE Improves focus, clarity and image stability by increasing or decreasing this setting. - Page 12 Information The Information menu indicates the current input, display resolution, horizontal and vertical frequency, and polarity settings of the monitor. The model and serial numbers of your monitor are also indicated. OSM Warning OSM Warning menus disappear with Exit button. NO SIGNAL: This function gives a warning when there is no Horizontal or Vertical Sync.
-
Page 13: Recommended Use
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. - Page 14 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR: • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
-
Page 15: Specifications
Specifications Monitor Specifications MultiSync 20WGX Pro Monitor Notes LCD Module Diagonal: 43.3 cm/20.1 inches Active matrix; thin film transistor (TFT) Viewable Image Size: 43.3 cm/20.1 inches liquid crystal display (LCD); 0.258 mm dot Native Resolution (Pixel Count): 1680 x 1050 pitch;... -
Page 16: Features
Features Thin-frame design creates more desktop space for you to work and play, while the flat screen’s crisp, bright images and crystal- clear text deliver a comfortable viewing experience. Xtra View technology allows for wide -angle viewing. No Touch Auto Adjust automatically adjusts your optimal image settings upon initial power-on. Colour Control System allows you to change between six colour settings on your display to match your personal preference. -
Page 17: Troubleshooting
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommend displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. -
Page 18: Tco'03
TCO’03 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment. -
Page 19: Tco'06
TCO’06 Congratulations! The product you have just purchased carries the TCO’06 Media Displays label. This means that your display is designed and manufactured according to some of the strictest performance and environmental criteria in the world. The manufacturer of this display has selected it to be certified to TCO’06 Media Displays as a sign of usability, high performance and reduced impact on the natural environment. -
Page 20: Manufacturer's Recycling And Energy Information
Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
