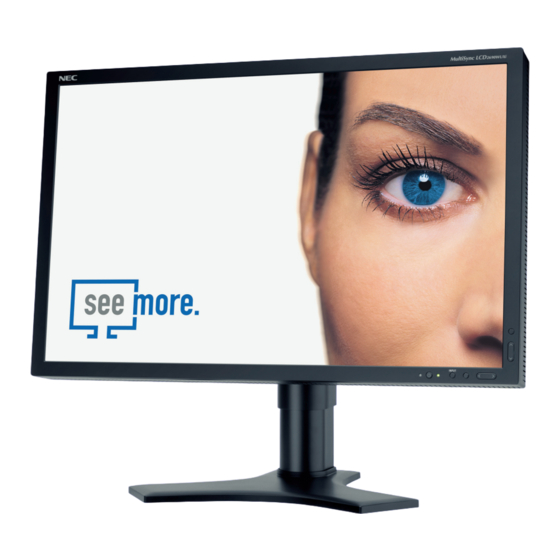

NEC SpectraView 2690 User Manual

Nec display solutions colour monitor user's manual 2690
Hide thumbs

Advertisement

MultiSync LCD2690WUXi
SpectraView 2690
User's Manual

Advertisement

loading

  Related Manuals for NEC SpectraView 2690

  Summary of Contents for NEC SpectraView 2690

  • Page 1 MultiSync LCD2690WUXi SpectraView 2690 User’s Manual...
  • Page 2: Table Of Contents

    Index Warning, Caution ... English-1 Declaration ... English-1 Canadian Department of Communications Compliance Statement ... English-2 Declaration of Conformity ... English-2 Contents ... English-3 Quick Start ... English-4 Controls ... English-8 Recommended use ... English-13 Specifications ... English-15 Features ... English-16 Troubleshooting ...
  • Page 3: Warning, Caution

    Therefore, it should be read carefully in order to avoid any problems. Caution: When operating the MultiSync LCD2690WUXi or the SpectraView 2690 with a 220-240V AC power source in Europe, use the power cord provided with the monitor.
  • Page 4: Canadian Department Of Communications Compliance Statement

    C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information Use the attached specified cables with the MultiSync LCD2690WUXi or the SpectraView 2690 colour monitor so as not to interfere with radio and television reception.
  • Page 5: Contents

    Contents Your new NEC monitor box* should contain the following: • MultiSync LCD2690WUXi or SpectraView 2690 monitor with tilt/swivel/pivot/height adjust stand • Power Cord (European Continental) • Power Cord (UK) • Video Signal Cable (15-pin mini D-SUB male to DVI-A) •...
  • Page 6: Quick Start

    Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables. Highest Stand Position DVI-I DVI-D DC-OUT D-SUB Figure C.1 NEC optional product attachment. Do not use this connector unless specified. Figure A.2 30˚ Tilt Power cord English-4 Macintosh Cable Adapter Figure B.1 (not included) Figure C.2...
  • Page 7 Figure C.3 7. Hold all cables firmly and place the cable cover onto the stand (Figure D.1). To remove the cable cover, lift the cover off as shown in Figure D.2. 8. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet. NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.
  • Page 8: Raise And Lower Monitor Screen

    Raise and Lower Monitor Screen The monitor may be raised or lowered in either Portrait or Landscape mode. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1). NOTE: Handle with care when raising or lowering the monitor screen.
  • Page 9: Remove Monitor Stand For Mounting

    Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1. Disconnect all cables. 2. Place hands on each side of the monitor and lift up to the highest position. 3. Place monitor face down on a non-abrasive surface (Figure S.1). 4.
  • Page 10: Controls

    Controls OSM (On-Screen Manager) control buttons on the front of the monitor function as follows: To access OSM menu, press the EXIT button. To change signal input, press the INPUT/SELECT button. NOTE: OSM must be closed in order to change signal input. 1 AMBIBRIGHT SENSOR Detects the level of ambient lighting allowing the monitor to make adjustments to various settings resulting in a more comfortable viewing experience.
  • Page 11: Eco Mode

    ECO MODE Decreases the amount of power consumed by reducing the brightness level. 1: Decreases the brightness by 25%. 2: Decreases the brightness by 50%. CUSTOM: Decreases the brightness level as determined by the user. Refer to the Advanced OSM menu for custom setting instructions. AUTO BRIGHTNESS There are three settings for Auto Brightness.
  • Page 12: Color Control Systems

    AUTO FINE (Analog input only) This function automatically and periodically adjusts the “FINE” setting for change in signal condition. This function adjusts approximately every 33 minutes. EXPANSION Sets the zoom method. FULL: The image is expanded to 1920 x 1200, regardless of the resolution. ASPECT: The image is expanded without changing the aspect ratio.
  • Page 13: Off Timer

    VIDEO DETECT Selects the method of video detection when more than one computer is connected. FIRST: The video input has to be switched to “FIRST” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.
  • Page 14: Hot Key

    OSM LOCK OUT This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. There are four types of OSM LOCK OUT: OSM LOCK OUT with BRIGHTNESS and CONTRAST control: To activate the OSM Lock Out function, press SELECT, then “UP”...
  • Page 15: Recommended Use

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 16 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
  • Page 17: Specifications

    60 Hz (Digital) 1200 x 1920* at 60 Hz 1680 x 1050* at 60 Hz to 75 Hz (Analog) NEC DISPLAY SOLUTIONS cites 1680 x 1050* at 60 Hz (Digital) 1920 x 1200 at 60 Hz... display performance. AC 100-240 V ~ 50/60 Hz 1.5-0.75A (with option)
  • Page 18: Features

    Allows for the monitor to be mounted on a wall or an arm using any third party compliant device. NaViSet: Is a ground-breaking software family, developed by NEC Display Solutions Europe GmbH, providing intuitive access to all monitor setting controls and remote diagnosis via the Windows interface, based upon the VESA standard, DDC/CI. Using a standard VGA or DVI signal cable, NaViSet can either benefit single users or, with NaViSet Administrator, can reduce the Total Cost of Ownership through remote network-wide maintenance, diagnosis and asset-reporting.
  • Page 19: Troubleshooting

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 20: Appendix

    Appendix If you need detailed information about the controls, please use the advanced menu. <How to use the advanced menu> • Turn off your monitor. • Turn on your monitor by pushing the “POWER” and “INPUT/SELECT” button at the same time for at least one second simultaneously.
  • Page 21 Tag2 R-H.position Adjusts the position of the red component of the image. Press “Left” or “Right” to adjust. (Analog input only) G-H.position Adjusts the position of the green component of the image. Press “Left” or “Right” to adjust. (Analog input only) B-H.position Adjusts the position of the blue component of the image.
  • Page 22 H. Size Adjusts the horizontal size of the screen. (Analog input only) If the “AUTO Adjust function” do not give you a satisfactory picture setting, a further tuning can be performed using the “H.Size (V.Size)” function (dot clock). For this a Moiré test pattern could be used.
  • Page 23 Tag6 Color Control Colour Control Systems: Seven preset colour settings. For preset settings 1, 2, 3 and 5, the following levels can be adjusted: TEMPERATURE: Adjust the white temperature by increasing or decreasing this setting. A lower colour temperature will make the screen reddish and a higher colour temperature will make the screen bluish.
  • Page 24 Over Drive Turns the OVER DRIVE function on or off. Over Drive may reduce blurring that occurs in some moving images. When Over Drive is on, response time is improved. Side Border Color Adjusts the side black bars colour between black and white. For wide aspect monitors. LED Brightness Controls the brightness of the LED on the monitor.
  • Page 25 Factory Preset Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. Highlighting the control to be reset and pressing the RESET button can reset individual settings. Tag9 Grayscale Mode This function changes the display image to monochrome. There are 3 types of settings.
  • Page 26 TagA Tile Matrix TagB Date & Time TagC Schedule TagD Eco Mode Information TagE Information Tile Matrix demonstrates multiple screens. This feature provides a single large screen using up to 25 monitors. It will be able to divide up to 5 each H and V. This requires you to feed the PC output into each of the monitors through a distributor.
  • Page 27: Using The Auto Brightness Function

    Using the Auto Brightness function The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly.
  • Page 28: Tco'03

    TCO’03 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •...
  • Page 29: Manufacturer's Recycling And Energy Information

    Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

This manual is also suitable for:

Multisync lcd2690wuxi
