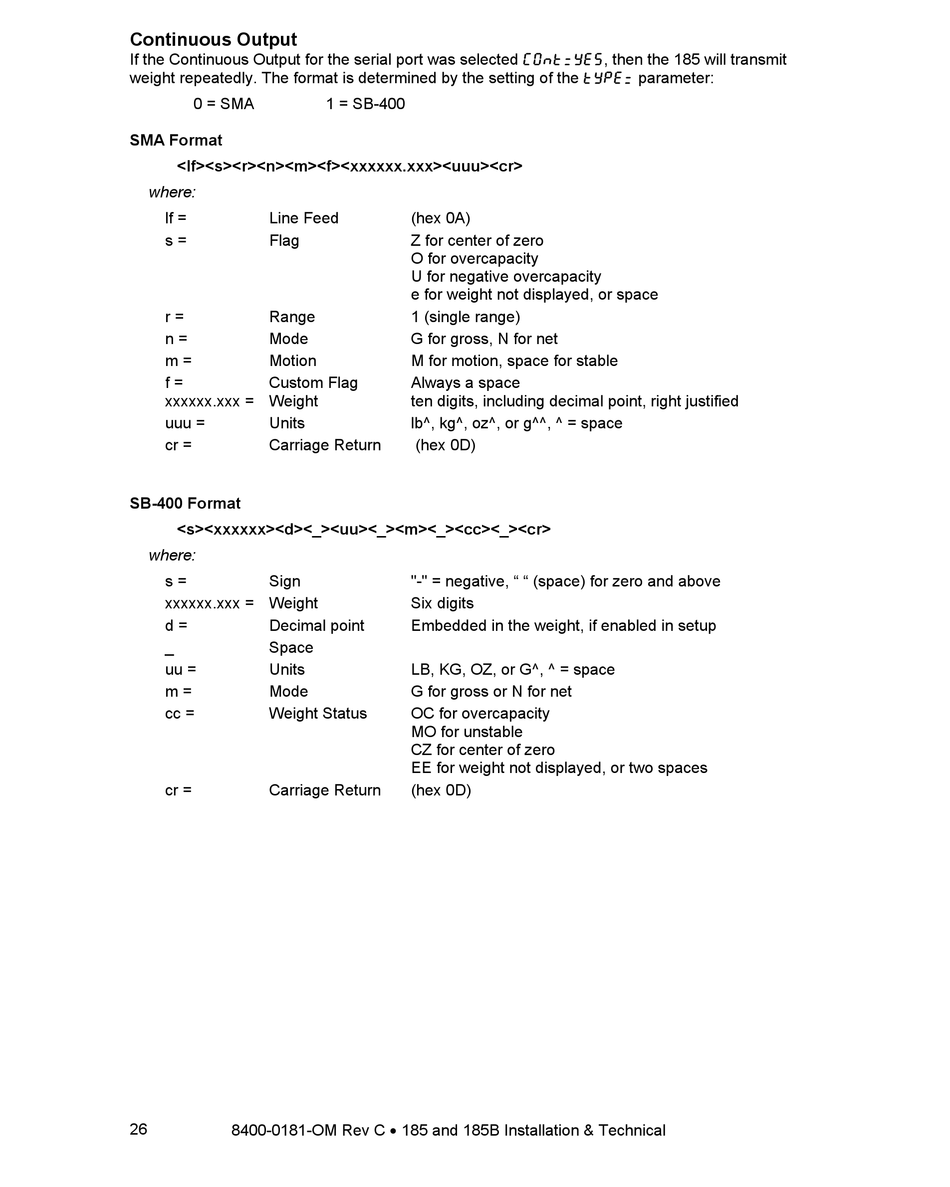

Continuous Output

If the Continuous Output for the serial port was selected COnt=yes, then the 185 will transmit
weight repeatedly. The format is determined by the setting of the tyPE= parameter:
0 = SMA
SMA Format
<lf><s><r><n><m><f><xxxxxx.xxx><uuu><cr>
where:
lf = Line Feed
s = Flag
r = Range
n = Mode
m = Motion
f = Custom Flag
xxxxxx.xxx = Weight
uuu = Units
cr = Carriage Return
SB-400 Format
<s><xxxxxx><d><_><uu><_><m><_><cc><_><cr>
where:
s = Sign
xxxxxx.xxx = Weight
d = Decimal point
_ Space
uu = Units
m = Mode
cc = Weight Status
cr = Carriage Return
8400-0181-OM Rev C  185 and 185B Installation & Technical
26
1 = SB-400
(hex 0A)
Z for center of zero
O for overcapacity
U for negative overcapacity
e for weight not displayed, or space
1 (single range)
G for gross, N for net
M for motion, space for stable
Always a space
ten digits, including decimal point, right justified
lb^, kg^, oz^, or g^^, ^ = space
(hex 0D)
"-" = negative, " " (space) for zero and above
Six digits
Embedded in the weight, if enabled in setup
LB, KG, OZ, or G^, ^ = space
G for gross or N for net
OC for overcapacity
MO for unstable
CZ for center of zero
EE for weight not displayed, or two spaces
(hex 0D)
