Specifications - Cardinal 185 Installation And Technical Manual

Power Requirements:
Model 185:
Model 185B:
Construction:
Operating Environment:
Weight Display:
Load Cell Excitation:
Signal Input Range:
Number of Load Cells:
Load Cell Cable Length:
Division Value:
Sensitivity:
NON-COMMERCIAL
NTEP
OIML
Scale Divisions:
NON-COMMERCIAL
NTEP
OIML
Internal Resolution:
Tare Capacity:
Sample Rate:
Auto Zero Range:
Weighing Units:
Keypad:
Keys:
Standard I/O:
Standard Features:
Enclosure Dimensions:
Net Weight:
Model 185:
Model 185B:
Shipping Dimensions:
Shipping Weight:
Model 185:
Model 185B:
Country of Origin:
Certifications:
8400-0181-OM Rev C  185 and 185B Installation & Technical

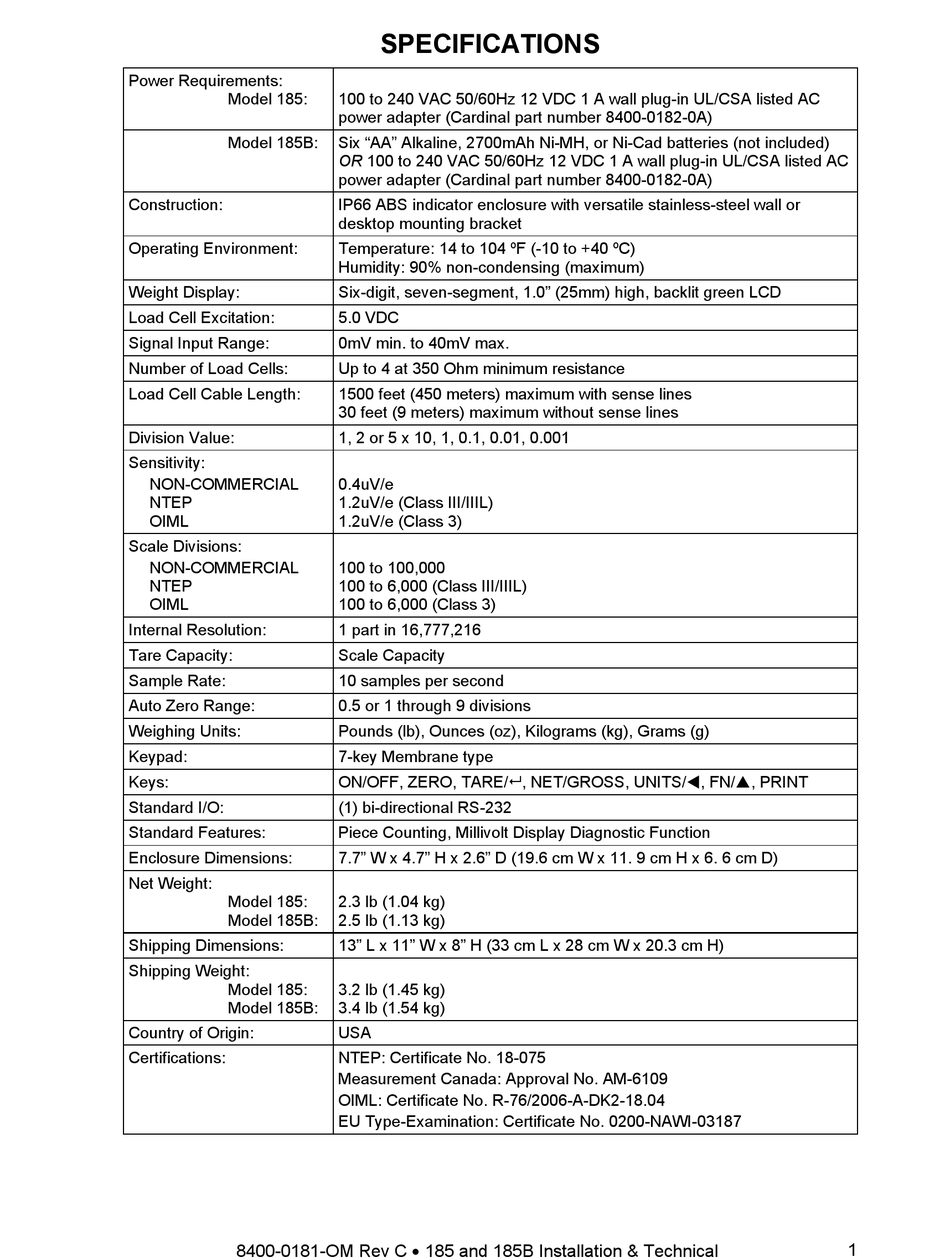

SPECIFICATIONS

100 to 240 VAC 50/60Hz 12 VDC 1 A wall plug-in UL/CSA listed AC
power adapter (Cardinal part number 8400-0182-0A)
Six "AA" Alkaline, 2700mAh Ni-MH, or Ni-Cad batteries (not included)
OR 100 to 240 VAC 50/60Hz 12 VDC 1 A wall plug-in UL/CSA listed AC
power adapter (Cardinal part number 8400-0182-0A)
IP66 ABS indicator enclosure with versatile stainless-steel wall or
desktop mounting bracket
Temperature: 14 to 104 ºF (-10 to +40 ºC)
Humidity: 90% non-condensing (maximum)
Six-digit, seven-segment, 1.0" (25mm) high, backlit green LCD
5.0 VDC
0mV min. to 40mV max.
Up to 4 at 350 Ohm minimum resistance
1500 feet (450 meters) maximum with sense lines
30 feet (9 meters) maximum without sense lines
1, 2 or 5 x 10, 1, 0.1, 0.01, 0.001
0.4uV/e
1.2uV/e (Class III/IIIL)
1.2uV/e (Class 3)
100 to 100,000
100 to 6,000 (Class III/IIIL)
100 to 6,000 (Class 3)
1 part in 16,777,216
Scale Capacity
10 samples per second
0.5 or 1 through 9 divisions
Pounds (lb), Ounces (oz), Kilograms (kg), Grams (g)
7-key Membrane type
ON/OFF, ZERO, TARE/ , NET/GROSS, UNITS/, FN/, PRINT
(1) bi-directional RS-232
Piece Counting, Millivolt Display Diagnostic Function
7.7" W x 4.7" H x 2.6" D (19.6 cm W x 11. 9 cm H x 6. 6 cm D)
2.3 lb (1.04 kg)
2.5 lb (1.13 kg)
13" L x 11" W x 8" H (33 cm L x 28 cm W x 20.3 cm H)
3.2 lb (1.45 kg)
3.4 lb (1.54 kg)
USA
NTEP: Certificate No. 18-075
Measurement Canada: Approval No. AM-6109
OIML: Certificate No. R-76/2006-A-DK2-18.04
EU Type-Examination: Certificate No. 0200-NAWI-03187
1
