Compact™ IO Isolated Thermocouple Module
User's Manual Pub. 0300244-01 Rev. A
Enter the settings from the table below.
Table C-2 (Module ID Codes)
Vendor ID
58
Product Type
10
Product Code
100
Series
A
Input Words
8
Output Words
0
Extra Data Length
16

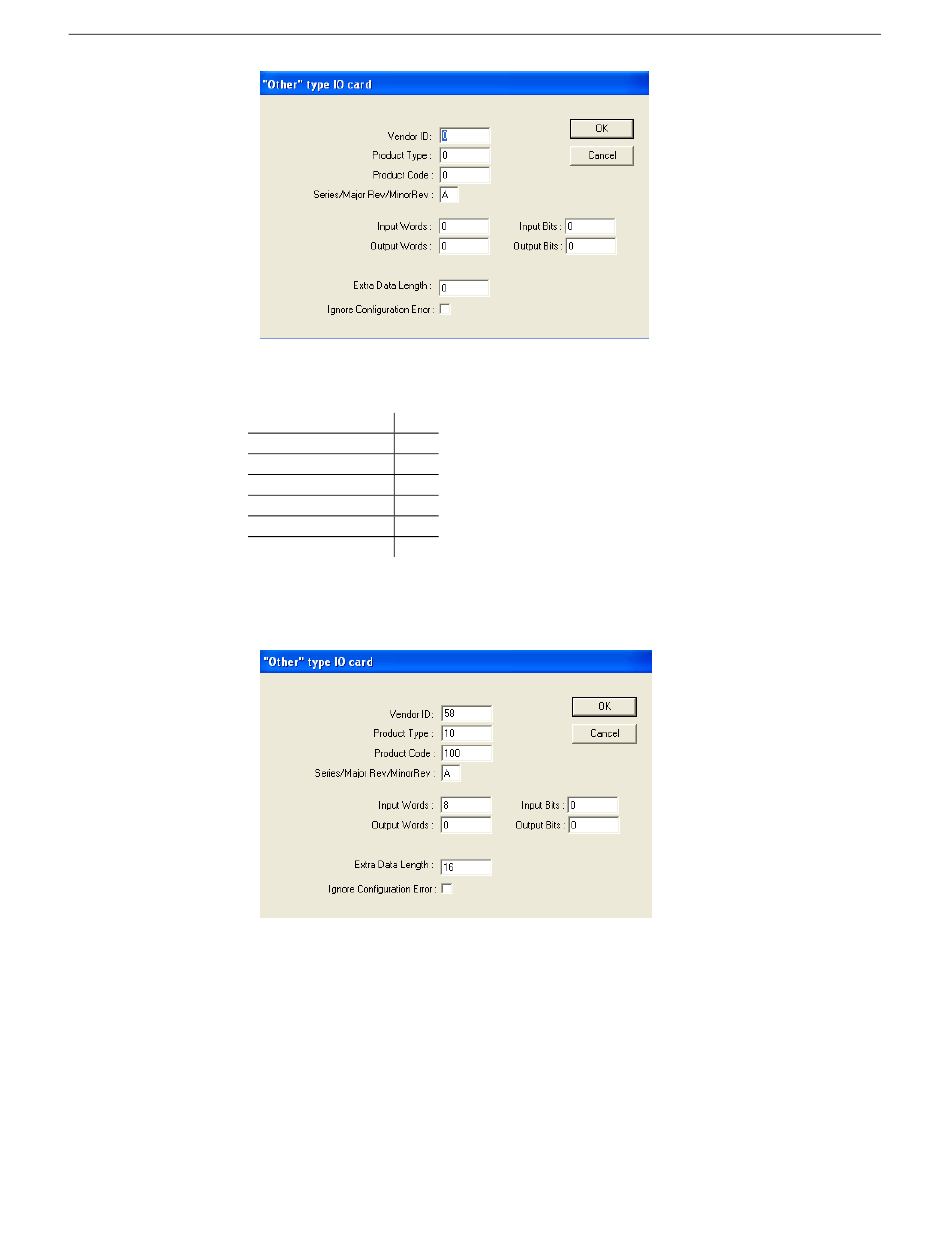

After entering the data from the table above, the screen should look like the one shown
below.
Click the "OK" button when finished.
To complete the configuration, double-click on the module from the IO configuration
screen and select the "Generic Extra Data Confi" tab. The screen below should appear.
