Section C.1
Module
Addressing
User's Manual Pub. 0300244-01 Rev. A
Appendix C
Module Configuration Using
MicroLogix 1500 and
RSLogix 500
This appendix examines the 1769sc-IT6I module's addressing scheme and describes
module configuration using RSLogix 500 and a MicroLogix 1500 controller.

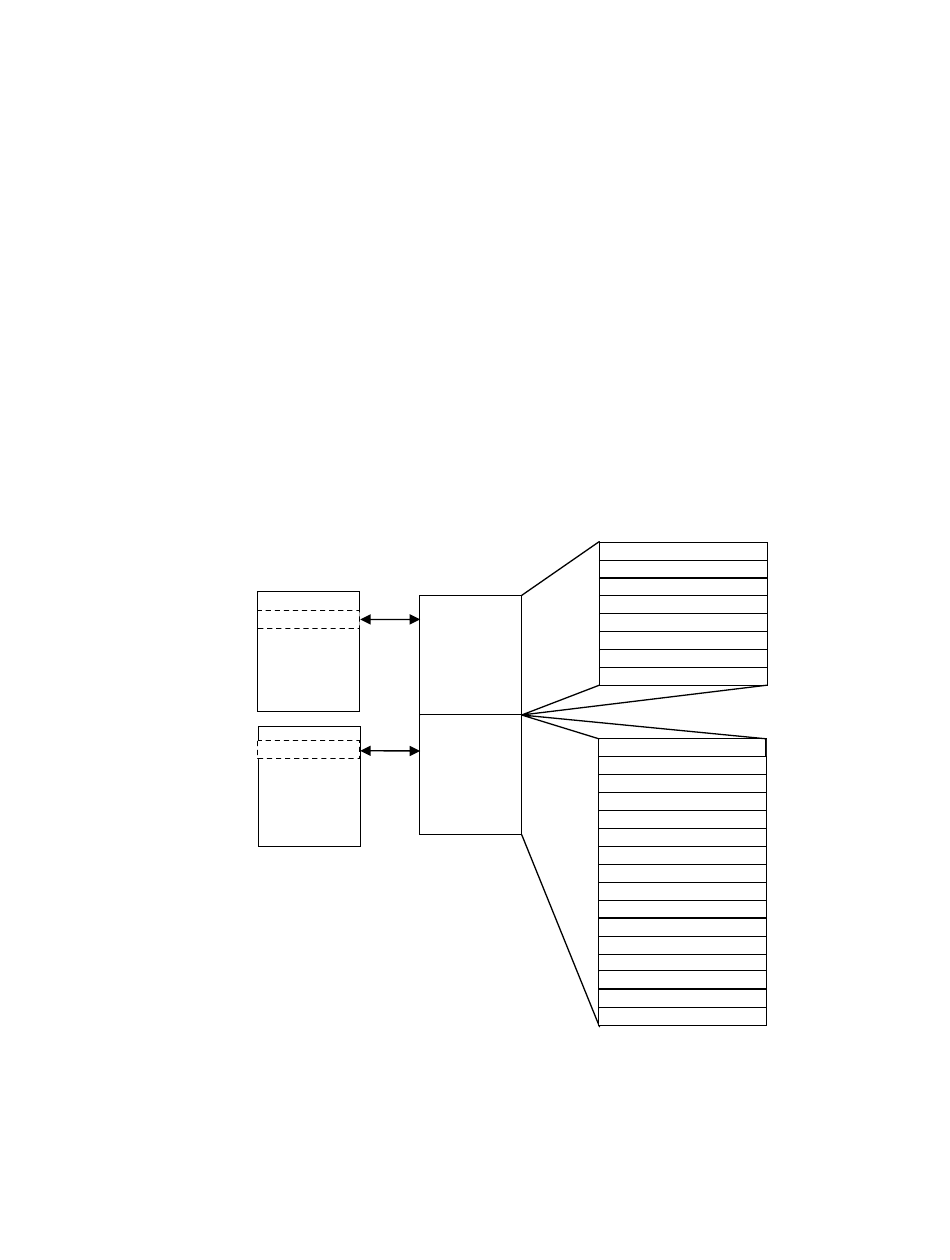

The following memory map shows the input and configuration image tables for the
module. Detailed information on the image table is located in Chapter 4.
Slot e
Input Image
File
Slot e
Configuration
File
Input Image
8 words
General/Open-circuit Status
Over/Under Range Status Bits
Channel 0 Configuration Word
Configuration
Channel 1 Configuration Word
File
Channel 2 Configuration Word
16 Words
Channel 3 Configuration Word
Channel 4 Configuration Word
Channel 5 Configuration Word
Memory Map
Channel 0 Data Word
Word 0
Channel 1 Data Word
Word 1
Channel 2 Data Word
Word 2
Channel 3 Data Word
Word 3
Channel 4 Data Word
Word 4
Channel 5 Data Word
Word 5
Word 6
Bits
Word 7
Word 0
Word 1
Word 2
Word 3
Word 4
Word 5
Not Used
Word 6
Not Used
Word 7
Not Used
Word 8
Not Used
Word 9
Not Used
Word 10
Not Used
Word 11
Not Used
Word 12
Not Used
Word 13
Not Used
Word 14
Not Used
Word 15
