Compact™ IO Isolated Thermocouple Module
User's Manual Pub. 0300244-01 Rev. A

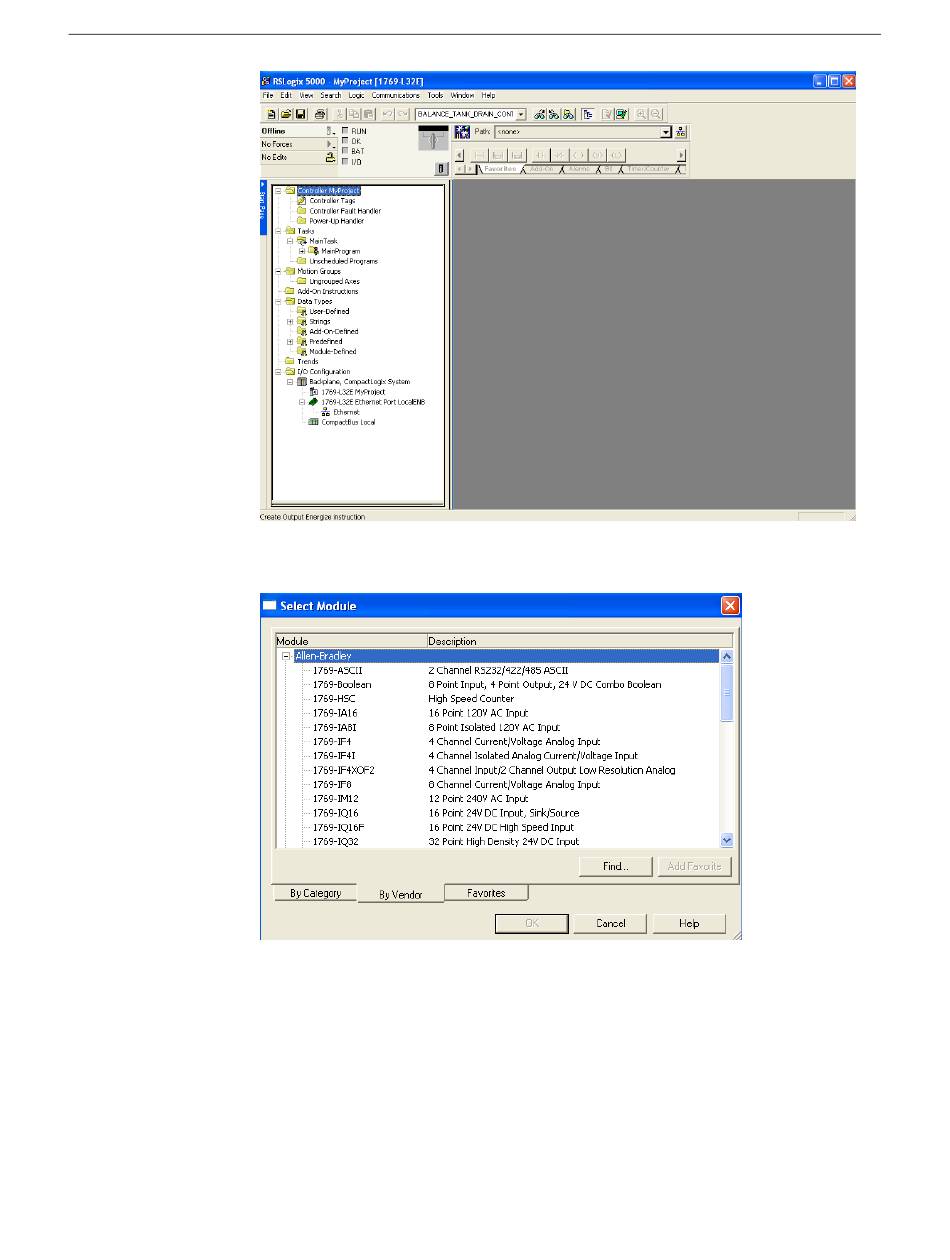

In the Controller Organizer on the left of the screen, right click on "CompactBus Local",
select New Module, and the following screen appears:
This screen is used to narrow your search for I/O modules to configure into your system.
From the list select the "Generic 1769 Module". Click the OK button and the following
default Generic Profile screen appears:
