E-2
Compact™ IO Isolated Thermocouple Module
User's Manual Pub. 0300244-01 Rev. A

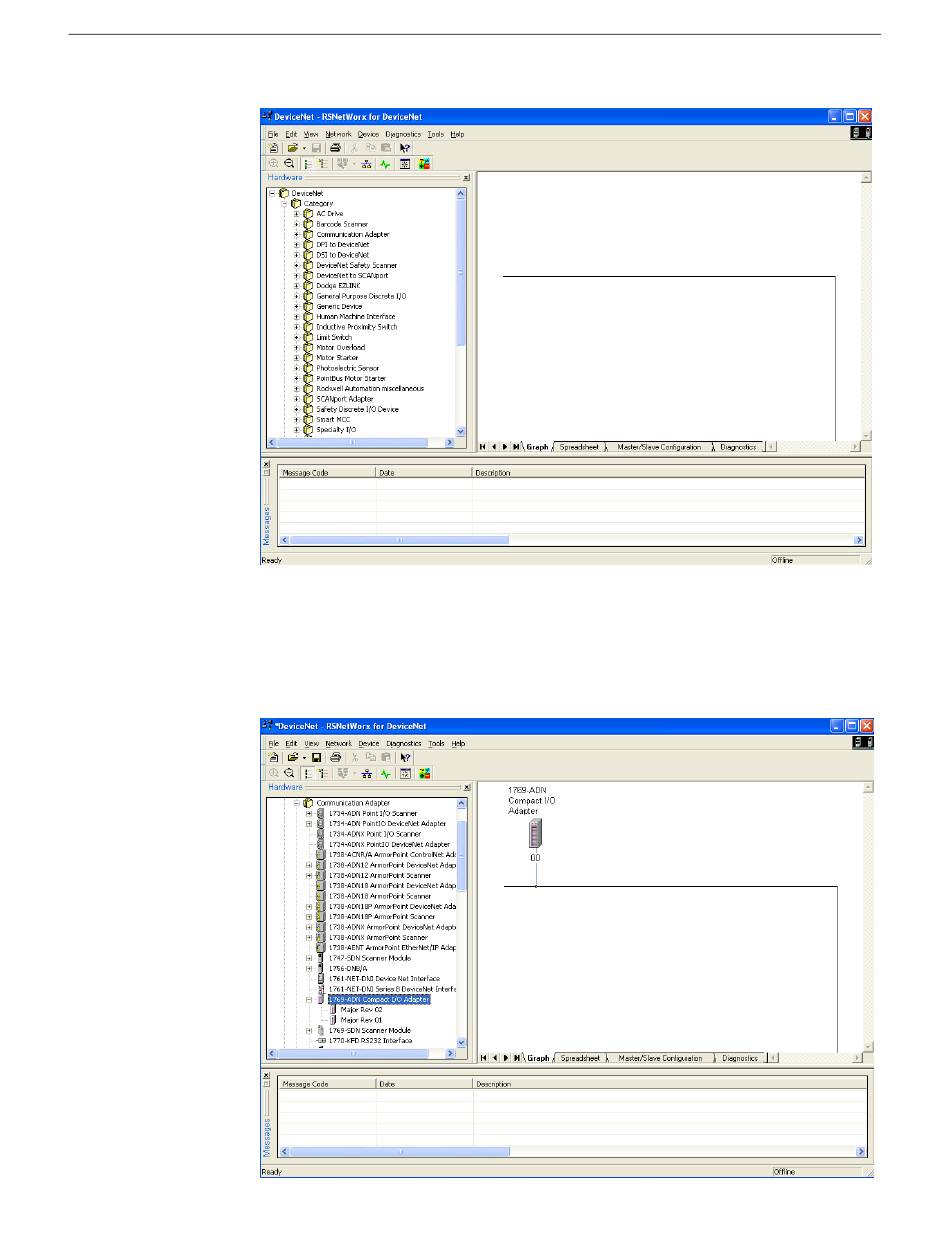

Start RSNetworx for DeviceNet. The following screen appears:
In the left column under Category, click on the "+" sign next to Communication
Adapters. The list of products under Communication Adapters contains the 1769-
ADN/A. Should this adapter not appear under Communication Adapters, your
RSNetworx for DeviceNet software is not version 6.00 or later. To continue, you will
need to obtain an upgrade for your software. If the 1769-ADN/A does appear, double-
click it and it will be placed on the network to the right as shown below.
