Summary of Contents for Skyrc e680

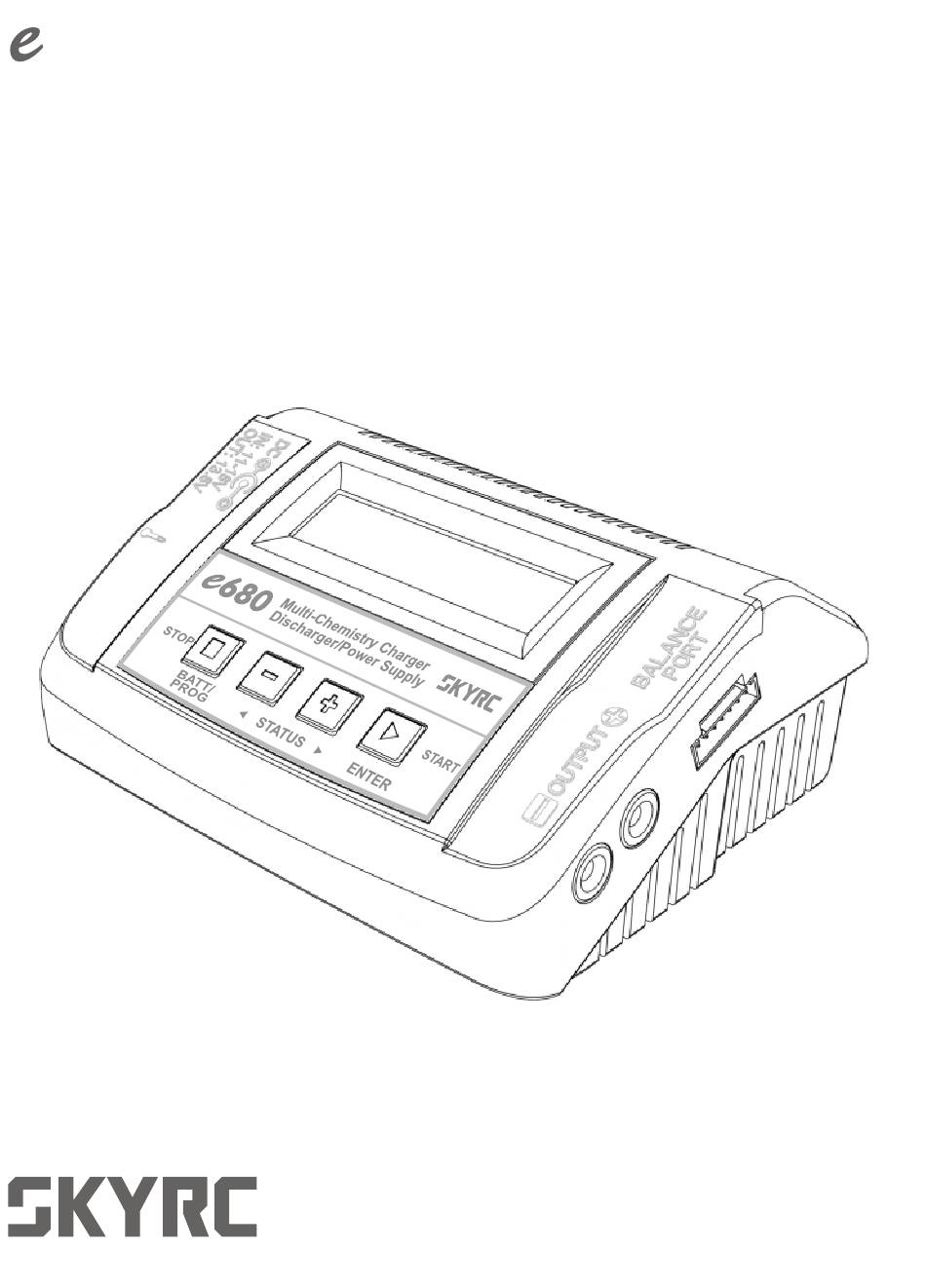

- Page 1 Multi-Chemistry Charger / Discharger / Power Supply Instruction Manual [Version 1.1]...
-
Page 2: Table Of Contents
Table of Contents Introduction Special Features Warning and Safety Notes Program Flow Chart Explanation of Buttons Power and Battery Connection Charge Operation Lithium Battery Program (LiPo/LiFe/Lilon/LiHV) NiMH/NiCd Battery Program Pb Lead-acid Battery Program Dji Mavic Battery Program DC Power Supply Battery Memory Set and Call Out System Setting Battery Voltage Meter... -
Page 3: Introduction
Polymer (LiPo), Lithium iron phosphate (LiFe), Lithium-ion (LiIon) and Lithium High Voltage (LiHV) battery with max. 8A charge current and 80W charge power. For PB battery, e680 adds AGM and cold charge modes. It can charge AGM battery, and Pb battery can be charged in cold charge mode in cold days. - Page 4 Scroll Through the Main Menu Stop Any Charge Processes Alter Values See the Status of Individual Cells in Balance Charge Mode Resume or Start Charge Processes Output Socket 4mm Banana Plug Cooling Fan DC Input AC Socket 100-240V Temperature Sensor Port · 02 e680...
-
Page 5: Special Features
SkyRC e680 charger supports charging DJI Mavic battery. PB AGM and Cold Charge For PB battery, e680 adds AGM and cold charge modes. It can charge AGM battery, and Pb battery can be charged in cold charge mode in cold days. - Page 6 If the temperature limit is reached, the process will be terminated. This function is available by connecting optional temperature probe, which is not included in the package. Processing Time Limit: You can also limit the maximum process time to avoid any possible defect. · 04 e680...
-
Page 7: Warning And Safety Notes
3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell 3.1-3.4V/cell 0.1-1.1V/cell 0.1-1.1V/cell 1.8V/cell Voltage Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage to the batteries. Incorrect settings could cause the cells to fire or explode. e680 05 ·... - Page 8 Always refer to the manual by battery manufacturer about charging methods, recommended charging current and charging time. Especially, the lithium battery should be charged according the charging instruction provided by the manufacturer strictly. · 06 e680...
- Page 9 This is a memory effect. It is said that NiCd and NiMH batteries are suffering from memory effect. NiCd has more memory effect than NiMH. e680 07 ·...
-
Page 10: Program Flow Chart
[ BATT MEMORY 3 ] SAVE PROGRAM SAVE PROGRAM 2.0A 2.0V (1P) Pb 4.0V (2P ) LOAD…… C:3.3A D:1.5A SAVE…. ENTER ENTER ENTER>3Seconds Pb AGM CHG Pb COLD CHG Pb DISCHARGE 0.1A 2.0V (1P) 0.1A 2.0V (1P) 1.5A 4.0V(2P) · 08 e680... -
Page 11: Explanation Of Buttons
If you have no request for LiPo Battery program, please press the BATT PROG/STOP button to enter BATT PROGRAM screen. e680 09 ·... -
Page 12: Power And Battery Connection
Power and Battery Connection 1. Connecting to power source There are two kinds of inputs for SKYRC e680, DC 11-18V and AC 100-240V. AC 100-240V power source connection. 12V DC Battery / DC power supply connection. · 10 e680... - Page 13 In the other modes, there is no request to connect the balance wire to the balance socket in the charger. But we suggest to charge your battery in balance mode for better performance. 2) NiMH/NiCd or Pb Battery Connection NiMH e680 11 ·...
-
Page 14: Charge Operation
AGM CHG This mode is for charging AGM battery. This mode is for charging Pb battery in cold days when the temperature is COLD CHG 5 ℃ to -20 ℃. DISCHARGE This mode is for discharging Pb battery. · 12 e680... -
Page 15: Lithium Battery Program (Lipo/Life/Lilon/Lihv)
INC and DEC to change the value and press START/ ENTER to confirm your setting. START/ENTER Program Start LiPo BALANCE 2.0A 11.1V (3S) Press and hold START/ENTER for 3 seconds to start the program. START/ENTER > 3 Seconds e680 13 ·... - Page 16 [ Time: 00: 45: 32 ] 16.8V 2600mAh elapsed time. Program Stop During the charging process, press STOP to stop the charging process. Please scan and watch the tutorial video about how to charge LiPo Video battery in balance mode. Tutorial · 14 e680...
- Page 17 Temperature probe needs to be connected to show Int. Temp 37°C external temperature. Temp Cut-Off Cut-off temperature. Safety Timer Safety timer ON and duration of time in minutes. ON 200min Capacity Cut-Off Capacity cut-off ON and value of the set capacity limit. 5000mAh e680 15 ·...
-
Page 18: Nimh/Nicd Battery Program
Discharge, Re-Peak and Cycle. Selecting the Battery Type: After powering on the e680, press the INC or DEC button repeatedly until you reach the appropriate program for the battery type you wish to charge. For this example we have chosen the “NiMH BATT“ or “NiCd BATT” program. Now press the ENTER button to enter the desired program. - Page 19 Follow the instructions provided on your battery when setting the voltage cut-off. The e680 will stop discharging when the battery has reached the preset voltage cut-off. Press and hold the START button for 3 seconds to start NiMH 1.3A 10.42V...
- Page 20 A five-minute cool-down delay occurs after each re- peak charge. IN RE-PEAK MODE, THE e680 USES THE CHARGE AMPERAGE AND VOLTAGE SETTINGS ENTERED IN CHARGE MODE. After selecting the correct battery type, use the INC or DEC NiMH RE-PEAK button to select the “RE-PEAK”...
- Page 21 Pressing the START button again will cause the cycle count to begin flashing. Use the INC or DEC button to change this to the number of cycles you want the e680 to run. The e680 can cycle the battery a maximum of 5 times consecutively.
-
Page 22: Pb Lead-Acid Battery Program
Pb Lead-acid Battery Program Additional NiMH/NiCd Process Information: During the NiMH/NiCd battery charging/discharging process the e680 can display a variety of information. Using the INC or DEC buttons, you can also view the following information: Delta Peak Voltage NiMH Sensitivity... - Page 23 Press the START button again and the nominal battery pack Pb COLD CHG voltage will begin flashing. Use the INC or DEC button to set 1.5A 12.0V(6P) the voltage and the number of cells. Press and hold the START button for 3 seconds to start charging. e680 21 ·...
- Page 24 “FINISHED” and the charger will emit a ringing sound. Additional Pb Process Information: During the Pb battery charging/discharging process the e680 can display a variety of information. Using the INC or DEC buttons you can also view the following information:...
-
Page 25: Dji Mavic Battery Program
65% of total power in order to prevent swelling. If the battery level is below 65%(15.6V), you need recharge it to 65%. Turn ON the battery before you put it in storage mode. BATT/PROGRAM Click +/- to locate DJI Mavic BATT program DJI Mavic BATT e680 23 ·... -
Page 26: Dc Power Supply
TURN ON BATTERY DC Power Supply To use e680 as a power supply, the user must connect it to AC power source. When the green LED on the left side turns on, then the user is free to use the power supply, the power of DC output is adjustable from 10W to 80W. -
Page 27: Battery Memory Set And Call Out
T V C = Y O U R R I S K Set the terminal voltage(4.18-4.25V). 4 . 2 0 V DEC INC S A V E P R O G R A M Press ENTER to save program. E N T E R START/ENTER e680 25 ·... - Page 28 L O A D L i P o B A L A N C E C H G Press START/ENTER for 3 seconds to start the process. 4 . 9 A 7 . 4 V ( 2 S ) · 26 e680...
-
Page 29: System Setting
Fahrenheit you like. A rest time allowing the battery to cool R e s t T i m e 1-60Min down between charging/discharging C H G > D C H G 1 0 M i n cycle. e680 27 ·... - Page 30 L o a d F a c t o r y S e t E n t e r setting. It indicates the hardware and firmware V e r s i o n H W : 1 . 0 0 F W : 1 . 1 0 version. · 28 e680...
-
Page 31: Battery Voltage Meter
M A I N 2 5 . 1 3 V The screen indicate the total voltage, the highest H 4 . 2 0 0 V L 4 . 1 8 2 V voltage and the lowest voltage. e680 29 ·... -
Page 32: Battery Resistance Meter
The screen indicate each cell's resistance. 0 0 6 m Ω The screen indicate the total resistance, the highest T A T A L :2 8 mΩ H :1 2 mΩ L :5 mΩ resistance and the lowest resistance. · 30 e680... -
Page 33: Warning And Error Message
B A T T E R Y W A S F U L L which the user sets when charging in balance mode. N O P O W E R No power allocate to the charger. D I S T R I B U T E D e680 31 ·... -
Page 34: The Set Contains
The Set Contains THESETCONTAINS 1. SKYRC e680 Charger 2. Power Cord 3. XT60 Connector Charging Cable 4. DC Cable with Alligator Clip Connector 5. XH Adaptor · 32 e680... -
Page 35: Recommended Accessories
Recommended Accessories DC Power Distributor Temperature Sensor SK-600114-02 SK-600040-01 DJI Mavic charging cable Tamiya charging cable SK-600023-06 5201-0030-01 EC3 charging cable Crocodile clip charging cable 5201-0034-01 5201-0031-01 Dean charging cable JST/BEC charging cable 5203-0016-01 5201-0043-01 e680 33 ·... -
Page 36: Specification
Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1V/cell LiPo: 3.0-3.3V/cell LiHV: 3.1-3.4V/Cell LiFe: 2.6-2.9V/cell LiIon: 2.9—3.2V/cell Pb: 1.8-2.0V/cell Discharge Wattage: 10W Balance Cells: 2-6 cells Memory: 10 different charge/discharge profiles Charge Method: CC/CV for lithium types and lead (Pb) batteries Delta-peak Sensitivity for NiMH/NiCd. · 34 e680... -
Page 37: Conformity Declaration
Conformity Declaration SkyRC e680 satisfy all relevant and mandatory EC directives and FCC Part 15 Subpart B. Requirements for Household Appliances, electric EN 55014-1:2017 tools, and similar apparatus –Part 1: Emission Electromagnetic compatibility Requirements for Household Appliances, electric EN 55014-2:2015 tools, and similar apparatus –... -
Page 38: Commonly Used Terms
13.2 volts (4x3.3). If the nominal voltage of the battery is not printed on the battery's label, consult your battery manufacturer or supplier. Do not guess the rated voltage of battery. · 36 e680... -
Page 39: Warranty And Service
Liability exclusion This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. - Page 40 Latest version can be downloaded from www.skyrc.com If you have any question about this document, please contact SkyRC by sending a message to info@skyrc.cn All Rights Reserved. All specifications and figures are subject to change without notice. Printed in China 2019.03...
