Appendix
LATCH - ON VS OFF:
The relay can either be an independent relay (high level, low level or pump protection) with Latch OFF or can
be a latching relay (automatic fill or empty) with Latch ON.
With Latch OFF, the relay will only
respond to INPUT A. INPUT B will
be ignored while Latch is OFF.
With Latch ON, the relay will
actuate when INPUT A and INPUT
B are in the same condition. The
relay will not change its condition
until both inputs reverse their
state.
Note: Some sensors (particularly buoyancy sensors) may have their own inverting capability (wired NO or
NC). This will change the logic of the invert switch. Check your system design.

CONTROLLER LOGIC:

Please use the following guide to understand the operation of the controllers.
1. Power LED: Make sure the Green power LED is ON when power is supplied to the controller.
2. Input LED(s): The input LED(s) on the controller will be Amber when the switch(es) is/are wet and OFF
when the switch(es) is/are dry. If the LED's are not switching the input LED, test the level switch.
3. LC10 series only: When the input LED turn OFF and ON, the relay LED will also switch. With invert OFF,
the relay LED will be ON when the input LED is ON and OFF when the input LED is OFF. With invert ON,
the relay LED will be OFF when the input LED is ON and ON when the input LED is OFF.
4. LC11 series only: When both inputs are wet (Amber LED's ON), the relay will be energized (Red LED
ON). After that, if one switch becomes dry, the relay will remain energized. Only when both switches are
dry (both amber LED's OFF) will the controller de-energize the relay. The relay will not energize again until
both switches are wet. See the Relay Latch Logic Chart below for further explanation.

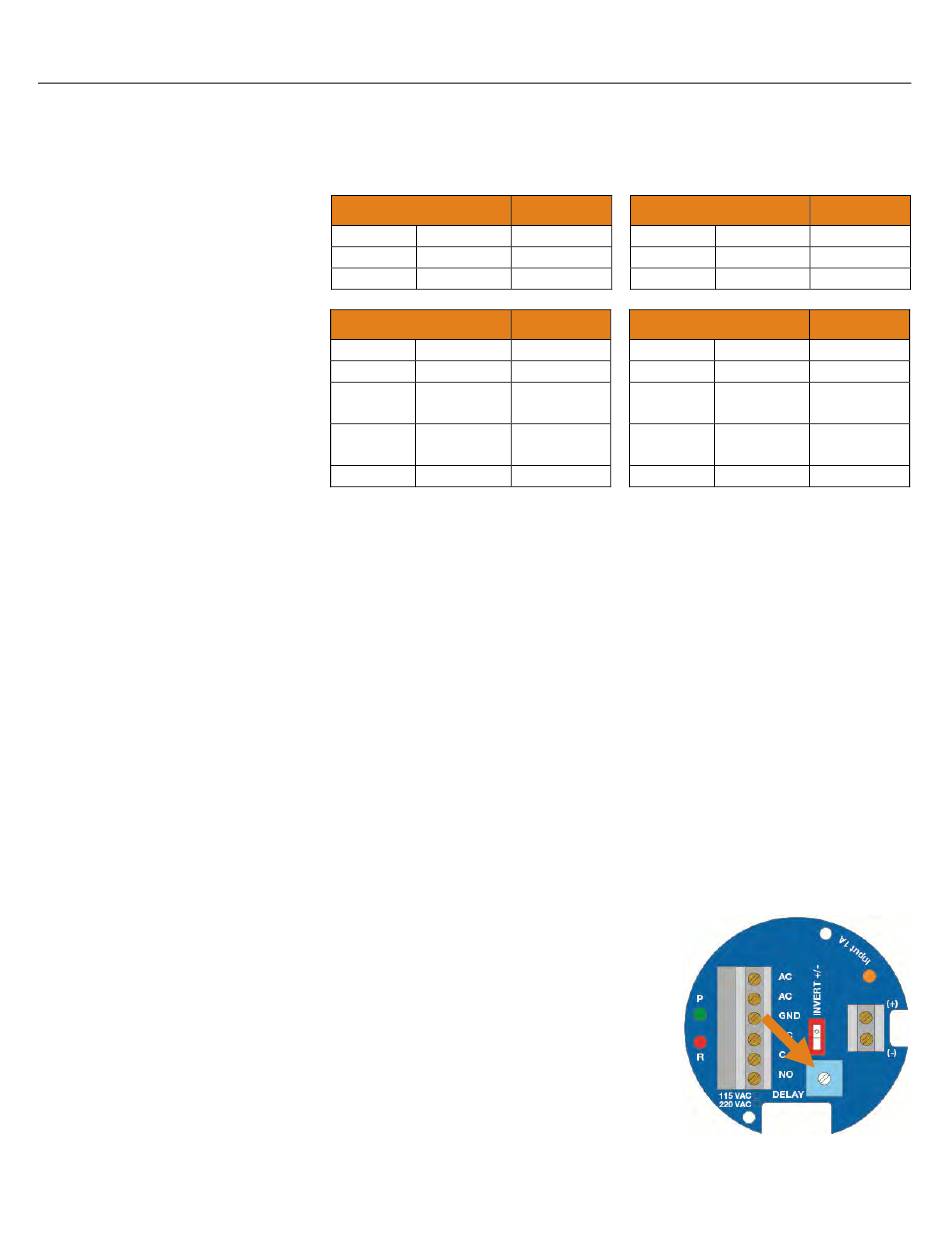

TIME DELAY:

The time delay can be adjusted from 0.15 seconds to 60 seconds. The delay
applies to both the Make and Break side of the relay. The delay can be used
to prevent relay chatter, especially when you have a liquid level that is
turbulent. Typically, a slight rotation clockwise, from a position of all the way
counter-clockwise, is enough to prevent relay chatter.
Note: The delay has stops on each end of its 270° rotation.
| 18
Invert OFF
Input A* Input B*
ON No Effect
OFF No Effect
Invert OFF
Input A* Input B*
ON ON
OFF ON
ON OFF
OFF OFF
Latch OFF Invert ON
Relay Input A*
ON ON
OFF OFF
Latch ON Invert ON
Relay Input A*
ON ON
No
OFF
Change
No
ON
Change
ON OFF
Step Eight
Latch OFF
Input B* Relay
No Effect OFF
No Effect ON
Latch ON
Input B* Relay
ON OFF
No
ON
Change
No
OFF
Change
OFF ON
