Wiring

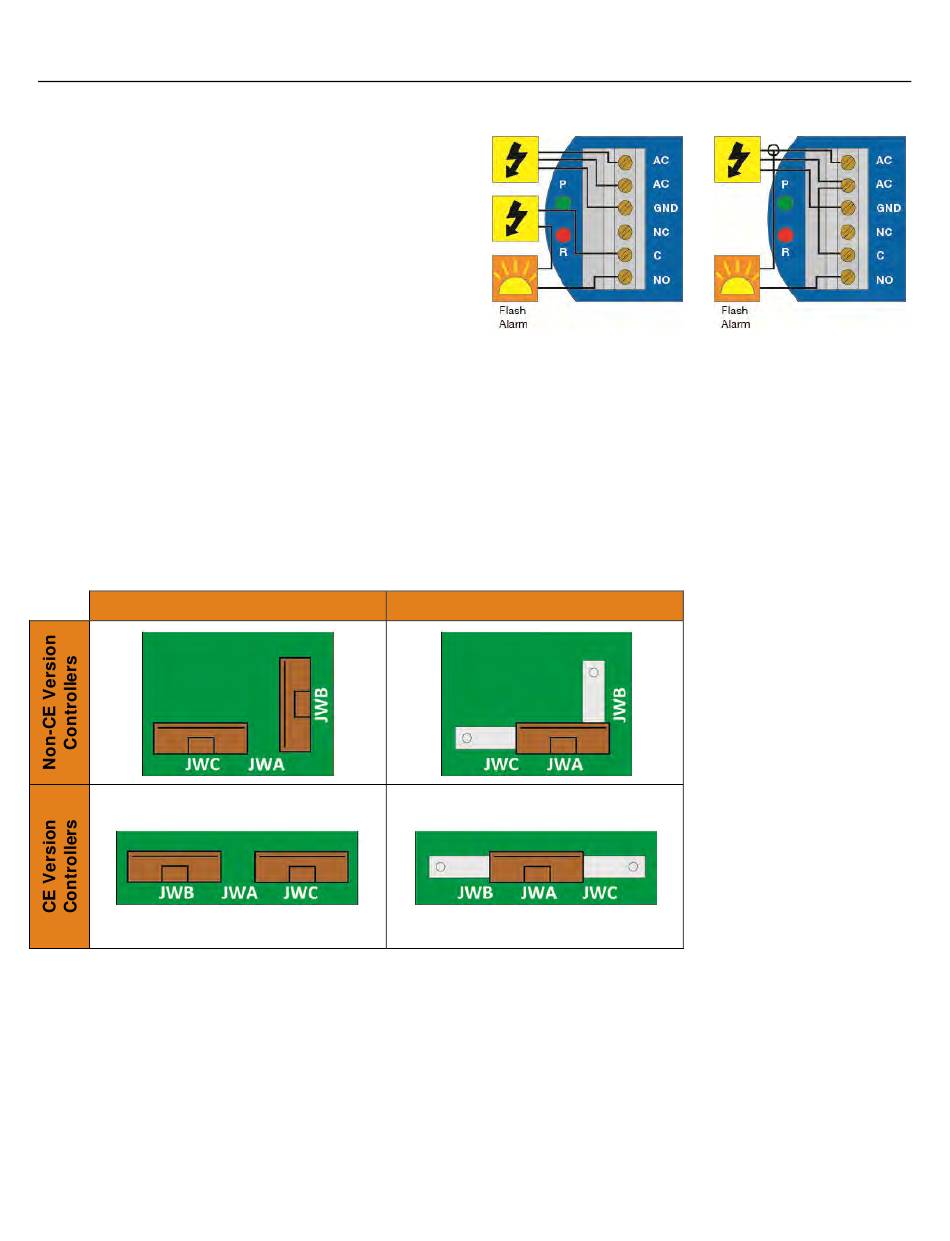

STROBE ALERT OUTPUT:

While wired NO, Strobe Alert can be used as a high or
low level alarm, depending on the setting for the invert
switch. The Strobe Alert can also be wired NC.
Note: Strobe Alert needs to be powered. Since the
relay is a true dry contact, power will need to be
added. Power can be added via a separate power
supply or shared from the supply powering the
controller.

CHANGING FROM 120 TO 240 VAC:

1. Remove the two screws from the top of the printed circuit board (PCB) and gently slide the PCB from the
housing. Use caution when removing the PCB.
2. Located jumpers JWA, JWB and JWC on the PCB.
3. To change to 240 VAC, remove jumpers from JWB and JWC and place a single jumper across JWA. To
change to 120 VAC, remove jumper JWA and place jumpers across JWB and JWC.
4. Gently return PCB into housing and replace the two screws.
120 VAC
240 VAC OPTION:
When ordering any 240 VAC version of the LC10 series, the sensor will arrive configured for 240 VAC
operation. If a Strobe Alert is included, then the Strobe Alert will also be configured for 240 VAC power.
240 VAC versions will include a –E to the part number (i.e. LC10-1001-E).
| 12
Separate Power Supply
240 VAC
Step Five
Shared Power Supply
MN301510 Rev A1
