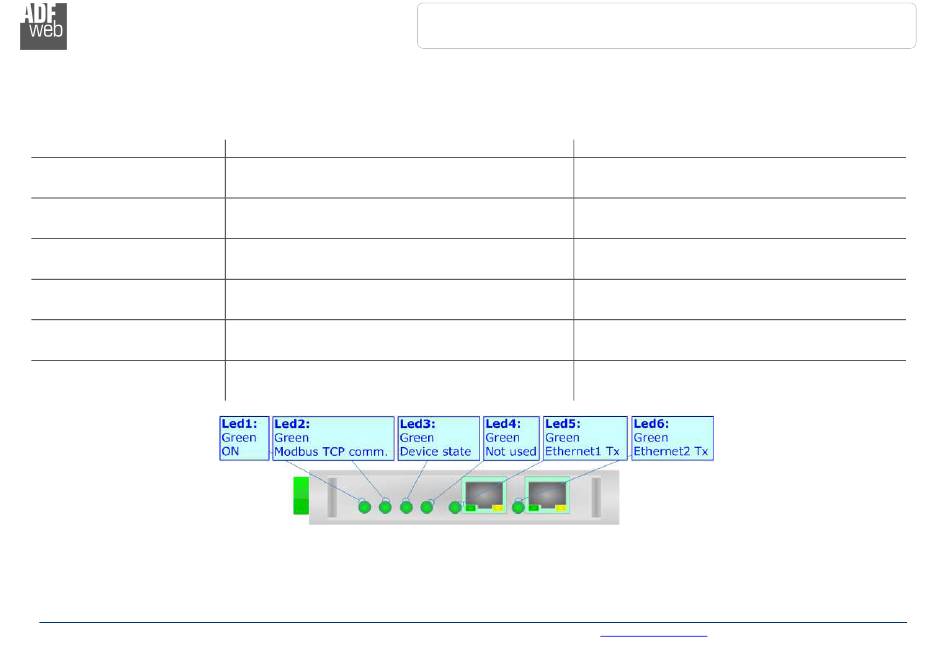

LEDS:

The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: Modbus TCP
communication (green)
3: Device State (green)
4: Not used (green)
5: Ethernet1 Tx (green)
6: Ethernet2 Tx (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks when a Modbus TCP request is received
Blinks slowly (~1Hz)
OFF
Blinks when is transmitting Ethernet frames
Blinks when is transmitting Ethernet frames
User Manual EtherNet/IP Master / Modbus TCP Slave
Document code: MN67665_ENG
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO: www.adfweb.com
Revision 1.000 Page 9 of 25
Boot Mode
