ETHERNET/IP ACCESS:
By Pressing the
"EtherNet/IP
appears (Fig. 4).
This section is used to define the list of the EtherNet/IP slaves to read/write with the Modbus TCP Master.

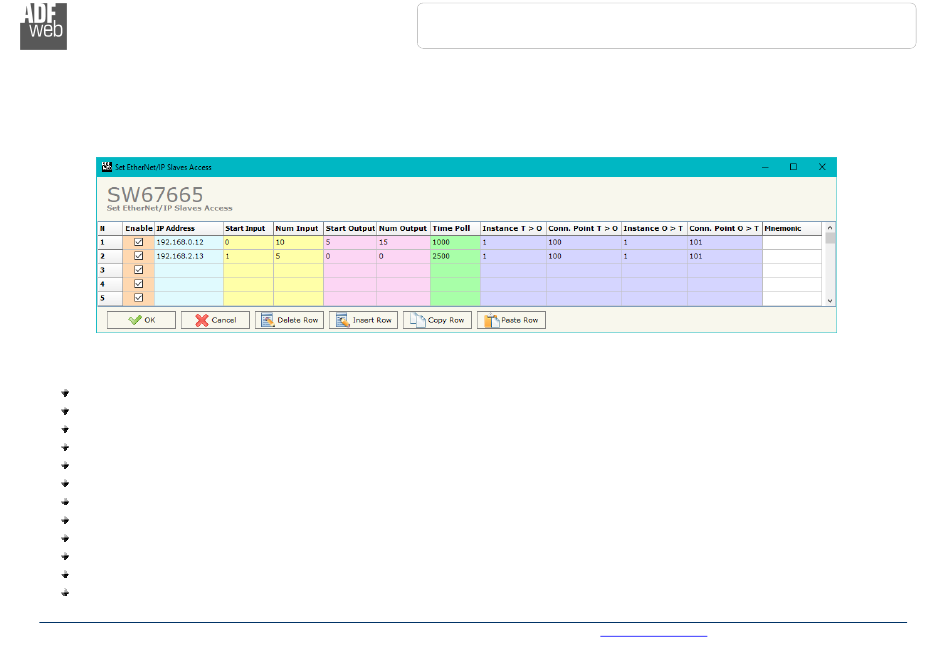

Figure 4: "Set EtherNet/IP Slaves Access" window
The means of the fields are:
If the field "Enable" is checked, the polling to the EtherNet/IP slave is enabled;
In the field
"IP
Address" the IP Address of the EtherNet/IP slave is defined;
In the field
"Start
Input" the starting Input byte of the EtherNet/IP slave to map on Modbus TCP side is defined;
In the field
"Num
Input" the number of consecutive Input byte to map on Modbus TCP side is defined;
In the field
"Start
Output" the starting Output byte of the EtherNet/IP slave to write from Modbus TCP side is defined;
In the field
"Num
Output" the number of consecutive Output byte to write from Modbus TCP side is defined;
In the field
"Time
Poll" the polling time in ms is defined;
In the field
"Instance T >
In the field
"Conn. Point T >
In the field
"Instance O >
In the field
"Conn. Point O >
In the field "Mnemonic" a brief description is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Access" button from the main window for SW67665 (Fig. 2) the window "Set EtherNet/IP Slaves Access"
O" the instance of the assembly for the Target to Originator data direction is defined;
O" the connection point of the assembly for the Target to Originator data direction is defined;
T" the instance of the assembly for the Originator to Target data direction is defined;
T" the connection point of the assembly for the Originator to Target data direction is defined;
User Manual EtherNet/IP Master / Modbus TCP Slave
Document code: MN67665_ENG
INFO:
www.adfweb.com
Revision 1.000
Page 17 of 25
