Industrial Electronic Devices
FUNCTION MODES:

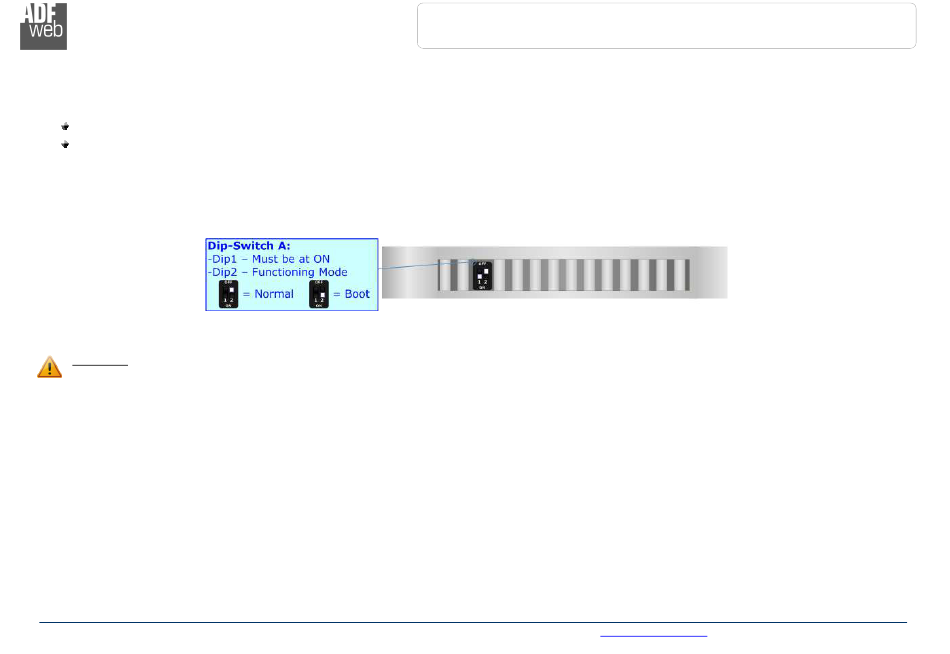

The device has got two functions mode depending of the position of the Dip2 of 'Dip-Switch A':
The first, with Dip2 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip2 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating (see 'UPDATE DEVICE' section).
According to the functioning mode, the LEDs will have specifics functions (see 'LEDS' section).
Warning:
Dip1 of 'Dip-Switch A' must be at ON position to work even if the Ethernet cable is not inserted.
