To ensure correct operation, the socket shall
be placed at a height of approximately 1.5 me-
tres from the fl oor, far from heat sources (direct
sunlight, etc.) and doors/windows.

Electric connections

Lower the terminal protection door prior to
making the connections.
Actuator connection

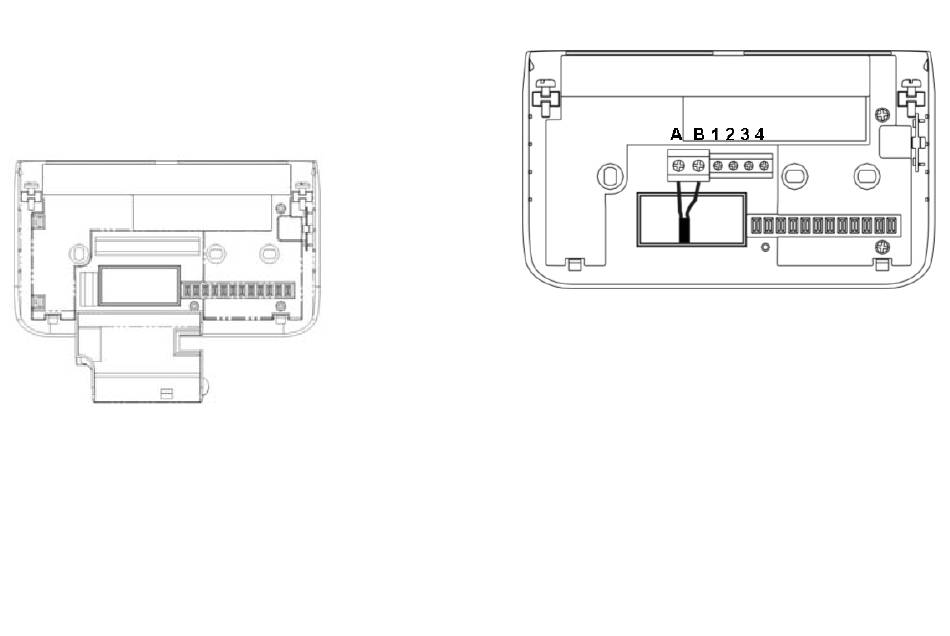

Connect the power supply wires running from
the CH172D actuator with terminals A and B,
as illustrated in the fi gure.
The terminals take fl exible conductors having
a maximum section of 2.5 mm2.
