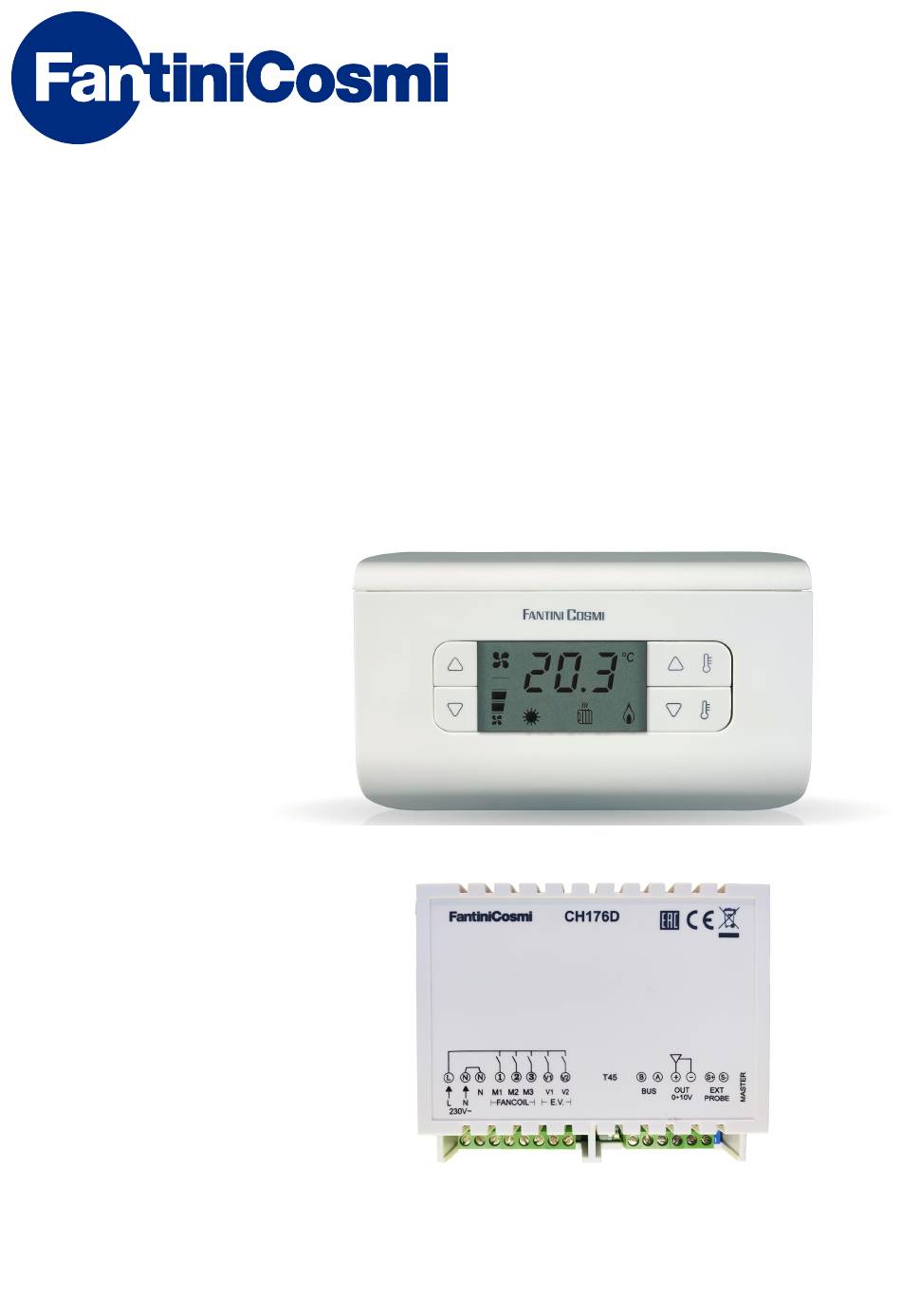

- Page 1 INSTRUCTIONS FOR USE KIT CH130ARR2 ROOM THERMOSTAT AND ACTUATOR FOR FAN COIL CONTROL FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
-
Page 2: Operation
Please read this instruction manual carefully and always keep it at hand should you need to consult it for any reason. The documentation reflects the characteristics of the product. However, for regulatory or commercial developments, customers should verify the availability of updates relating to this documentation on the FANTINI COSMI S.p.A. website: pdf.fantinicosmi.it... -
Page 3: Description Of Display Keys
CH130ARR2 FAN COIL ROOM THERMOSTAT DESCRIPTION OF DISPLAY KEYS CONTROLS Increases the fan speed or sets automatic ventilation Reduces the ventilation speed or sets OFF mode (thermostat off). Increases the current temperature set point Decreases the current temperature set point Thermostat reset without loss of settings ADVANCED CONTROLS Simultaneously pressing the two keys enables the following... -
Page 4: Technical Features
CH130ARR2 FAN COIL ROOM THERMOSTAT TECHNICAL FEATURES Power supply via remote actuator CH176D Exit Proprietary BUS Auxiliary input for potential-free contact Probe input NTC 10KOhm (Fantini EC15-EC18-EC19-EC20) Electrical connections screw clamps Protection rating IP20 Degree of pollution Settings memorisation non-volatile memory Software Class A Temperature adjustment field... -
Page 5: Table Of Contents
CH130ARR2 FAN COIL ROOM THERMOSTAT CONTENTS OPERATION ..............2 4 - KEY LOCK ..............11 CONTENTS OF PACKAGE ..........2 4.1 - TEMPORARY KEY UNLOCK ..........11 5 - FAULTS ..............11 DESCRIPTION OF DISPLAY KEYS ........3 6 - MAINTENANCE ............11 TECHNICAL FEATURES ........... -
Page 6: Installation
CH130ARR2 FAN COIL ROOM THERMOSTAT 1 - INSTALLATION ATTENTION! Installation must be carried out by qualified personnel, in compliance with the requirements concerning installation of electrical devices. Make sure that the power network is disconnected before making any connections or working on the device. The thermostat CH130AR2 is supplied with a base suitable for assembly both wall-mounted and recessed in rectangular 3-place box (503) or round. -
Page 7: Electrical Connection
CH130ARR2 FAN COIL ROOM THERMOSTAT 2 - ELECTRICAL CONNECTION For further information regarding connection of the thermostat-actuator-fan coil system, refer to the connection diagrams in the CH176D unit installation manual. Electrical connections must be carried out as shown in the connection diagram. Please note that connection of the external probe (EXP1) and input for remote control (SEL1), are subject to certain configuration parameter settings. -
Page 8: Directions
CH130ARR2 FAN COIL ROOM THERMOSTAT 3 - DIRECTIONS 3.1 - START-UP To start the thermostat after installation, follow the procedure below: 1. Configure the functional parameters (by the installer). 2. Set the operating mode (Summer or Winter). 3. Set the operating mode (Comfort or Economy). 4. -
Page 9: Comfort Mode
CH130ARR2 FAN COIL ROOM THERMOSTAT 3.4 - COMFORT MODE In this mode, the thermostat controls the temperature in order to keep the set Comfort temperature constant. To change from Economy to Comfort, simultaneously press keys 3 and 4. To check the currently set Comfort temperature, press key 3 or 4. To change the set Comfort temperature value, repeatedly press key 3 (to increase it) or key 4 (to decrease it). -
Page 10: Fan Speed Setting
CH130ARR2 FAN COIL ROOM THERMOSTAT 3.7 - FAN SPEED SETTING There are three different fan speeds: minimum, medium, and maximum. The speed can be set manually by selecting one of the three speeds, or automatic. In AUTO, the thermostat will use the most suitable fan speed to reach and maintain the requested room temperature. -
Page 11: Key Lock
CH130ARR2 FAN COIL ROOM THERMOSTAT 4 - KEY LOCK To enable the key lock function, useful in preventing the thermostat from being used by unauthorised persons, follow the steps below: ■ Enter the thermostat configuration menu ■ In parameter P01 enter a password other than 000 ■... -
Page 12: Thermostat Configuration
CH130ARR2 FAN COIL ROOM THERMOSTAT 7 - THERMOSTAT CONFIGURATION ATTENTION! Thermostat parameters configuration must only be carried out by qualified technical personnel. Thermostat operation in relation to a specific design is subject to correct setting of certain operation configuration parameters, which can be consulted and/or edited by accessing a technical menu, as described below: ■... -
Page 13: System Installation Parameters (Hidden Menu)
CH130ARR2 FAN COIL ROOM THERMOSTAT 7.2 - SYSTEM INSTALLATION PARAMETERS (HIDDEN MENU) PARAMETER DESCRIPTION DEFAULT FIELD Plant type (PLANT) 2P: 2 pipes 4P: 4 pipes Hot water/electrical resistance valve selection 1: hot water valve 2: electrical resistance Ventilation modes 1: continuous 2: continuous-stop winter mode 3: continuous-stop summer mode 4: subordinated to valve status... - Page 14 CH130ARR2 FAN COIL ROOM THERMOSTAT PARAMETER DESCRIPTION DEFAULT FIELD Display mode 1: Troom view 2 = set point view OFF display mode 1: ‘OFF’ view 2: view from Key lock mode 1 All keys locked 2: Setpoint + W/S + E/C key lock 3: W/S + E/C key lock Regulation differential in winter mode Std / 0.3°C …...
- Page 15 CH130ARR2 FAN COIL ROOM THERMOSTAT PARAMETER DESCRIPTION DEFAULT FIELD Exit the user parameters menu + save parameters * Parameters not visible if the remote actuator CH172D is selected in parameter P50 P06 Plant type (plant) 2P 2-PIPE SYSTEM: the thermostat only manages valve V1 (on/off type) regardless of heating or cooling operation. 4P 4-PIPE SYSTEM: the thermostat manage valve V1 (on/off type) for heating and valve V2 (ONE/OFF type) for cooling.
- Page 16 CH130ARR2 FAN COIL ROOM THERMOSTAT AIR RETURN SENSOR: connecting a temperature probe in the air return point (usually under the fan coil), the thermostat manages temperature control with the temperature read by this probe. Note: by selecting option 4 SUMMER/WINTER mode cannot be changed manually. P12 Temperature sensor on external temperature sensor input NOT CONNECTED: the input is not used.
- Page 17 CH130ARR2 FAN COIL ROOM THERMOSTAT P20 Key lock mode With active password, select the number and type of locked keys. All keys locked Key lock applied to set-point editing, changing from summer to winter mode and vice versa, and changing from comfort set-point to economy set-point and vice versa.
-
Page 18: Ch176D Actuator Technical Features
CH130ARR2 FAN COIL ROOM THERMOSTAT 8 - DIN RAIL CH176D ACTUATOR OPERATION The CH130AR2 unit is an actuation model which, connected to a thermostat for fan coil CH133AR2 - CH133RR - CH130AR2 - CH130ARR - CH130RR via a bipolar cable, allows to remotely control the two valves, the three-speed motor or a 0 .. 10V, motor, and accept a temperature sensor connected to the appropriate input. - Page 19 CH130ARR2 FAN COIL ROOM THERMOSTAT INSTALLATION The device is designed for installation on DIN rail, but its small size facilitate the installation inside the fan coil also. ATTENTION! The end parts (live) of the CH176D must be installed in a container or fan coil inaccessible by the user. Installation must be carried out by qualified personnel, in compliance with the requirements concerning installation of electrical devices.
- Page 20 CH130ARR2 FAN COIL ROOM THERMOSTAT CONNECTING SEVERAL MODULES TO ONE THERMOSTAT A CH133AR2 - CH133RR - CH130AR2 - CH130ARR - CH130RR thermostat can control up to five fan-coils simultaneously, using only two wires to connect to the various actuation modules. In this case, only one of the two CH176D modules must have the “BUS selector”...
- Page 21 CH130ARR2 FAN COIL ROOM THERMOSTAT OPERATING MODE SELECTION If thermostats CH133RR - CH130RR - CH130ARR are connected to the actuation module, it must be configured in CH172D mode. The selection is made by switching on the actuation module by means of the configuration of the probe input according to the following diagram: CH176D: probe input free or connected to a temperature probe CH172D: temperature probe input permanently short-circuited by means of a conductor cable...
-
Page 22: Disposal
CH130ARR2 FAN COIL ROOM THERMOSTAT DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. They will be separated at the recycling facilities. A black bar indicates that the product was placed on the market after 13 August 2005. -
Page 23: General Warranty Conditions
CH130ARR2 FAN COIL ROOM THERMOSTAT GENERAL WARRANTY CONDITIONS The conventional warranty lasts 24 months, starting from the date the equipment is installed. The warranty covers all parts of the equipment, with the exception of those subjected to normal wear through use. - Page 24 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
