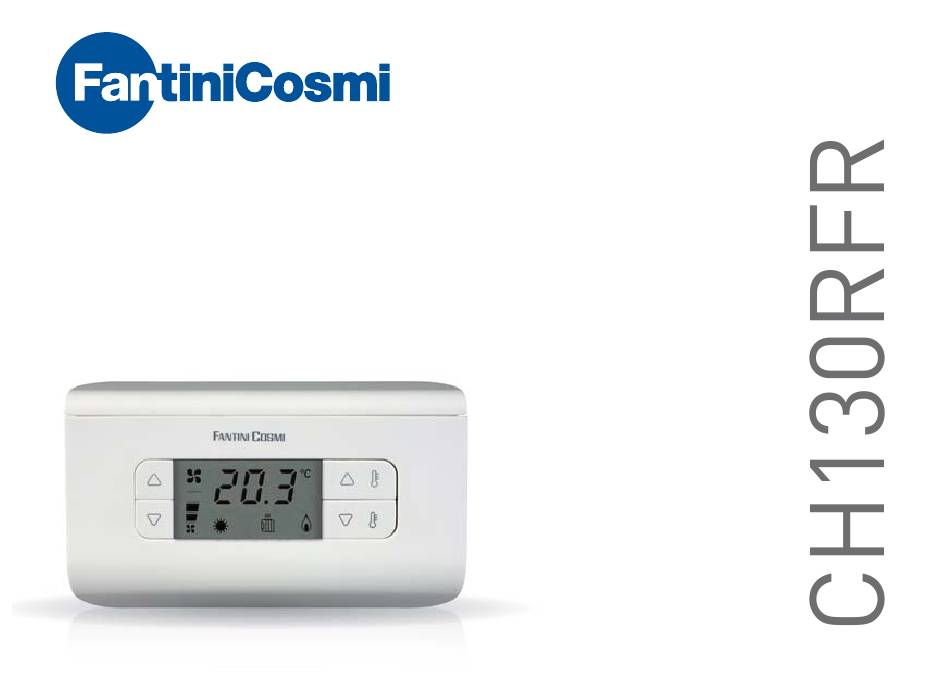

- Page 1 RADIO FREQUENCY AMBIENT THERMOSTAT FOR FAN-COILS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Inserting and replacing the batteries ....9 CH172DRF self-learning procedure ....9 Introduction ..............3 Thermostat confi guration .........10 Controls and signals ..........4 Technical features of the thermostat ......13 Controls .............4 DIN bar CH172DRF actuator .........13 Signals ...............4 Application and use .........13 User’s manual ............5 Fastening and connecting .......14 “Summer / Winter”... -
Page 3: Introduction
Introduction The settings and data are stored in a perma- This fan-coil thermostat control kit CH130RFR nent memory capable of keeping the same is made up of a CH130RF thermostat and a even when the batteries are not inserted. DIN bar CH172DRF actuator. -
Page 4: Controls And Signals
Controls and signals Signals Controls 1. Measured temperature 2. “Comfort” symbol 1. Fan speed increase button 3. “Economy” symbol 2. Fan speed decrease button 4. “Summer” symbol 3. Selected program temperature value 5. “Winter” symbol increase button 6. Fan speed symbols 4. -
Page 5: User's Manual
User’s manual “Summer / Winter” selection To switch from the “Winter” operation (i.e. heat- First of all, make sure that the self-learning ing system) to the “Summer” operation (i.e. procedure has already been performed (page cooling system), and vice versa, press the 1+2 8);... -
Page 6: Operating Modes
Operating modes “Economy” operating mode The CH130RF thermostat features three dif- With the “Economy” operating mode, the ther- ferent manual operating modes: “Comfort”, mostat regulates the heating or cooling system “Economy”, and the “OFF” function (OFF). operation in order to always keep the same economy temperature set. -
Page 7: Off" Function (Off)
Maintenance “OFF” function (OFF) The “OFF” function can be achieved by setting The thermostat should be cleaned by using the fan speed to zero: in this case, the thermo- a soft cotton cloth. No detergent should be stat will carry out no heat regulation, not even used. -
Page 8: Fastening The Socket
Fastening the socket corner. The thermostat is supplied complete with a socket suitable for mounting both on the wall To ensure correct operation, the socket shall and to rectangular or round built-in 3-seat be placed at a height of approximately 1.5 me- boxes (503). -
Page 9: Fastening The Thermostat Onto The Socket
Fastening the thermostat onto the socket range is approximately 30 metres in the free Insert and screw the thermostat down to the air). socket (make sure that the multi-pole connec- To perform self-learning, proceed as follows: tor is engaged correctly). keep the CH172DRF button depressed for at least 5 seconds, until the multicolour LED Inserting and replacing the batteries... -
Page 10: Thermostat Confi Guration
Thermostat confi guration ton “3”. Once all parameters have been set, press Warning! The confi guration shall be performed button “1” until the “END” message appears, only by qualifi ed personnel. then press button “3”. Now the thermostat will The thermostat confi guration allows you to save the modifi... - Page 11 P01: Type of system Index Parameter Values Preset 1 two-tube system: the thermostat will drive only the valve (ON/OFF type) used for heat- Type of system ing both during the heating and the cooling: in External probe 3-4-5 fact, the valve will control both hot water and Display cold water.
- Page 12 P03: display visualization (“Comfort” and “Economy”) in the heating 1 ambient temperature: the ambient tempera- mode. ture will be shown on the display. 2 set-point: the current set point will be shown P10: “Summer” lower limit set-point tem- on the display. perature It can be adjusted from 2.0 to 40.0°C.
-
Page 13: Technical Features Of The Thermostat
Technical features of the thermostat 2006/95/CE, Conforming to the 2004/108/CE, directives 1993/68/CE Two “AA” batteries Power supply (1.5 V) R&TTE EN 300 220-3, Complying with the EN 60730-1, EN60730- Outputs RF module standards Inputs External probe input ErP classifi cation: ErP Class IV; 2% (EU Reg. Electric connections Screwed terminals 811/2013 - 813/2013) -
Page 14: Fastening And Connecting
Fastening and connecting Operation The unit has been designed to be built in (in- The unit operating status is indicated by the side fan-coils, special panels or other suitable LED represented by housings). • GREEN: good RF signal level. The unit shall be installed by qualifi ed person- •... -
Page 15: Operation Check
Operation check CH130RF will be able to communicate. Refer to the preceding instruction manual for • Switch over, on the thermostat, the fan mo- the use of the CH130RF thermostat. tor speed (3 relays) and the valve control (2 • Make sure that the actuator is close enough relays), then verify that they have actually to the thermostat (30 m, in free air –... -
Page 16: Technical Features Of The Actuator
R&TTE EN 300 220-3, EN 301 489-3 Voltage-free 2 valve outputs switching contacts Fantini Cosmi S.p.A. reserve the right to make any Network voltage 3 motor contact outputs necessary technical and construction modifi cation switching contacts without any obligation to give prior notice. - Page 17 WARNING: SELF-LEARNING PROCEDURE SUPPLEMENT In case of multiple kits (CH130-- plus CH172DRF) installation, proceed as follows: 1) Make sure that all CH130 are not powered (battery out). 2) Insert batteries in the fi rst CH130--. 3) Start self-learning procedure between the CH130-- and relevant CH172DRF (as per manual instruction) 4) Remove batteries from the fi...
- Page 18 NOTES...
- Page 19 DISPOSAL OF PRODUCTS The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005.
- Page 20 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 Fax +39 02 95307006 | info@fantinicosmi.it EXPORT DEPARTMENT Ph +39 02 95682229 export@fantinicosmi.it www.fantinicosmi.com...
