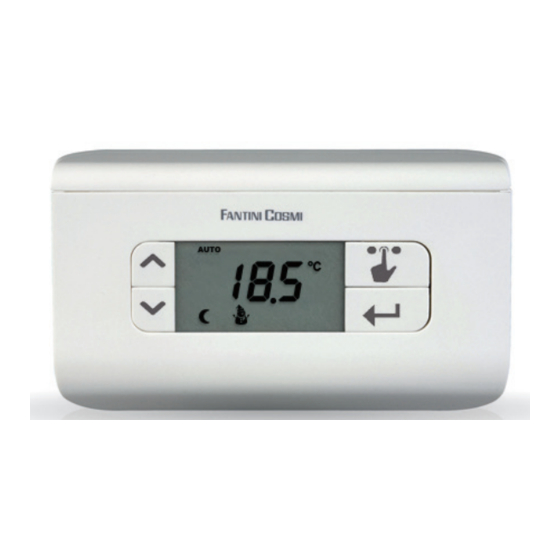

- Page 1 INSTRUCTIONS FOR USE CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
-
Page 2: Operation
Please read this instruction manual carefully and always keep it at hand should you need to consult it for any reason. The documentation reflects the characteristics of the product. However, for regulatory or commercial developments, customers should verify the availability of updates relating to this documentation on the FANTINI COSMI S.p.A. website: pdf.fantinicosmi.it... -
Page 3: Description Of Display Keys
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT DESCRIPTION OF DISPLAY KEYS Date and time setting Operating mode: AUTO - MAN - OFF Hourly programming setting (profile) Configurations Room temperature Celsius Menu selection key Press and hold: ESC (the already changed values are still assigned). -
Page 4: Technical Features
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT TECHNICAL FEATURES Battery power supply 2 AA 1.5V alkaline batteries Battery life >1 year Temperature regulation scale 2 - 40 °C, increase 0.1°C Measurement scale/room T display - 50 to + 50 °C, resolution 0.1°C... -
Page 5: Table Of Contents
4.2 - SELECTING THE OPERATING PROGRAM......11 6.2 - PROGRAMMING CH119NFC ..........20 4.3 - SETTING THE “AUTO” PROGRAM tE/tC TEMPERATURE ...12 6.3 - GENERAL CH119NFC SETTINGS ........22 6.4 - HOME SETTINGS ..............30 4.4 - SETTING THE “MAN” PROGRAM TEMPERATURE .....12 6.5 - APP SETTINGS: PUSH NOTIFICATIONS ......30 4.5 - DISPLAYING THE TEMPERATURE WITH THE PROGRAM... -
Page 6: Installation
Installation operations must be performed with the system’s power disconnected. The CH119NFC programmable thermostat comes with a panel suitable for wall-mounting or on recessed boxes, with 3 modules or round. It must be installed at a height of about 1.5m from the floor, in a suitable position to detect the room temperature correctly. -
Page 7: Battery Replacement
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT Undo the screw as shown in figure 1 and release the panel from the appliance. Connect to terminals 1-2 1.1 - BATTERY REPLACEMENT... -
Page 8: Electrical Connection
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 2 - ELECTRICAL CONNECTION ATTENTION! Electrical connections must be made by qualified personnel. ATTENTION! Electrical connection operations must be done with the system’s power disconnected. Electrical connections must be made by making reference to the following diagram. -
Page 9: Programming Guide
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 3 - PROGRAMMING GUIDE The first time any key is pressed has no effect, but only activates the functions of the buttons. After 30 seconds of no interaction, the display goes back to the main screen. -
Page 10: Hourly Programming Setting (Profile)
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 3.2 - HOURLY PROGRAMMING SETTING (PROFILE) The profiles are set based on whether the WINTER or SUMMER mode is selected. 24.7 Note: the SELECTION key makes the icons at the top of the display flash cyclically every time it is pressed. The icon flashes for 3 seconds, after which, if nothing has been pressed, it goes back to the “initial”... -
Page 11: Operation
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 4 - OPERATION The CH119NFC programmable thermostat is a device that controls cooling and heating systems. 4.1 - OPERATING PROGRAMS The CH119NFC programmable thermostat has different operating modes, called programs. [ AUTO ] 24.7 ■ WEEKLY PROGRAM The device manages the set Economy and Comfort temperatures depending on the hourly programs. -
Page 12: Setting The "Auto" Program Te/Tc Temperature
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 4.3 - SETTING THE “AUTO” PROGRAM tE/tC TEMPERATURE Comfort Temperature (tC) = 24.7 Economy Temperature (tE) = Note: use the arrows to change the temperature value tE or tC (depending on whether tE or tC is set). Pressing the key once does not change the value but displays the set point. -
Page 13: Configuration Menu
NFC WEEKLY PROGRAMMABLE THERMOSTAT 5 - CONFIGURATION MENU From this menu, it is possible to change certain configuration parameters of CH119NFC. Note: the SELECTION key makes the icons at the top of the display flash cyclically every time it is pressed. The icon flashes for 3 seconds, after which, if nothing has been pressed, it goes back to the “initial”... -
Page 14: Daylight Saving / Standard Time (Default = Auto)
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT CEL = Celsius PRESS FAH = Fahrenheit 5.3 - DAYLIGHT SAVING / STANDARD TIME (default = Auto) Automatically selects daylight saving time, applicable in Europe and some other countries. This set-up automatically updates the time when it changes (March and October). -
Page 15: Screen Lock With Password (Default = Off)
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 5.5 - SCREEN LOCK WITH PASSWORD (default = OFF) It allows you to lock the CH119NFC keyboard with a 4-digit code. It only works once and then must be re-enabled. P 01 Use the arrow keys until reaching P05, then press CONFIRM. -
Page 16: Offset Temperature (Default = 0.0°C)
5.6 - OFFSET TEMPERATURE (default = 0.0°C) It allows you to edit the temperature measured from CH119NFC. Due to incorrect wall-mounting installation (behind walls, curtains or in crannies), the sensor might not indicate the correct temperature perceived by the device. This function corrects the temperature measured ±... -
Page 17: Max Summer Temperature Limit (Default = 40°C)
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT P 08 PRESS Use the arrow keys until reaching P08, then press CONFIRM. PRESS Note: default value 2.0°C, value that can be set is between 2.0°C and the value set in P7 minus 0.1°C (if you set P7 with a value of 25.0°C, the maximum value that can be set in P8 will be 24.9°C) -
Page 18: Resetting Default Parameters (Default = Rs 0)
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 5.11 - RESETTING DEFAULT PARAMETERS (default = rS 0) This allows you to reset all the parameters (except date and time) to the factory settings. P 01 P 11 PRESS Use the arrow keys until reaching P11, then press CONFIRM. -
Page 19: Programming Via App
(an active data connection is required for this operation). Note: CH119NFC can also work without a WI-FI connection. In this case, tick GSM Mode. Add a new house by pressing ■... -
Page 20: Programming Ch119Nfc
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.2 - PROGRAMMING CH119NFC Home name Room name Season Current set point General APP settings Home settings General Thermostat settings CH119NFC update status Last CH119NFC update date Operating mode... - Page 21 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.2.1 - INITIAL PHASE Update STATUS: sync the APP with CH119NFC. 6.2.2 - MANUAL MODE To edit the mode and/or set-point. Use the Temperature cursor to increase or decrease the temperature.
-
Page 22: General Ch119Nfc Settings
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3 - GENERAL CH119NFC SETTINGS Press the icon indicated to access the list of general settings in order to manage CH119NFC. Go back to HOME For AUTO mode Various advanced settings Edit ROOM name Edit ROOM background... - Page 23 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3.1 - EDIT PROGRAMS TO AUTO Change of the weekly programs for AUTO mode (related to the season selected). Selection of the weekdays associated with the profile. Select...
- Page 24 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3.2 - EDIT AUTO TEMPERATURES Edit the Sun and Moon temperatures for AUTO mode (related to the season selected). Use the Temperature cursor to increase or decrease the temperature.
- Page 25 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3.3 - ADVANCED SETTINGS Press the icon indicated to access the list of advanced settings in order to manage CH119NFC. Edit season Edit CH119NFC date and time Edit various temperature limits...
- Page 26 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3.3.1 - ADVANCED SETTINGS: SEASON Edit the programmable thermostat operating Season (Summer/Winter). After editing the season, press SET and follow the instructions on the APP for the NFC connection. 6.3.3.2 - ADVANCED SETTINGS: DAY AND HOUR Edit the day and hour on the programmable thermostat.
- Page 27 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3.3.3 - ADVANCED SETTINGS: TEMPERATURES Edit the max and min set-point limits that can be set for Winter, Summer and Antifreeze. After editing the temperatures, press SET and follow the instructions on the APP for the NFC connection.
- Page 28 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3.4 - ROOM NAME Edit the room name where the programmable thermostat is installed. 6.3.5 - BACKGROUND Edit the room background where the programmable thermostat is installed. Note: it is possible to use default photos, or photos from your album, or take photos and add them as the background.
- Page 29 CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 6.3.7 - THERMOSTAT CONTROL General information regarding the programmable thermostat. 6.3.8 - DELETE THE PROGRAMMABLE THERMOSTAT It allows you to delete the programmable thermostat from the home it is associated with. Note: this operation cannot be reset with a «CLICK»! You must install the...
-
Page 30: Home Settings
PUSH notifications are alerts that are received on your smartphone if there are various operation faults regarding the Intelliclima+ system by FANTINI COSMI S.p.A. Note: they only work on WI-FI devices and if the data service is enabled on your smartphone. Therefore, even if the function is enabled, no fault PUSH notifications are sent regarding CH119NFC. -
Page 31: Disposal
CH119NFC NFC WEEKLY PROGRAMMABLE THERMOSTAT 7 - DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. They will be separated at the recycling facilities. A black bar indicates that the product was placed on the market after 13 August 2005. - Page 32 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
