Controls and signals

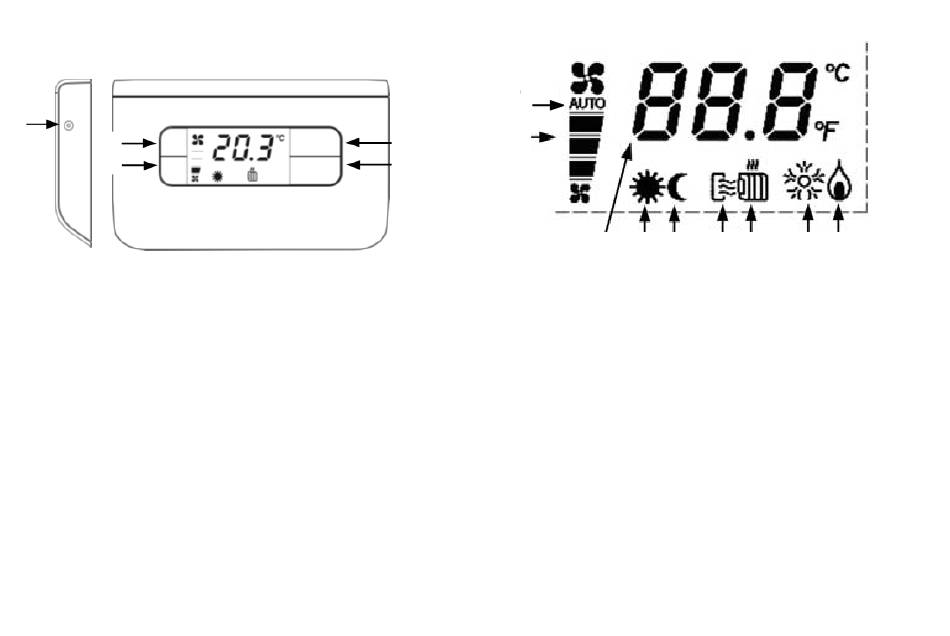

Controls

5
1
2
1. Fan speed increase button
2. Fan speed decrease button
3. Selected program temperature value
increase button
4. Selected program temperature value
decrease button
5. Thermostat reset button
Button combinations (press simultan.)
1+2 Summer/Winter switch
3+4 Comfort/Economy switch
2+4 Celsius/Fahreneit switch

Signals

7
6
3
4
1. Measured temperature
2. "Comfort" symbol
3. "Economy" symbol
4. "Summer" symbol
5. "Winter" symbol
6. Fan speed symbols
7. "Automatic" symbol
8. System "ON" in summer operation
9. System "ON" in winter operation
4
1 2 3 4 5 8 9
