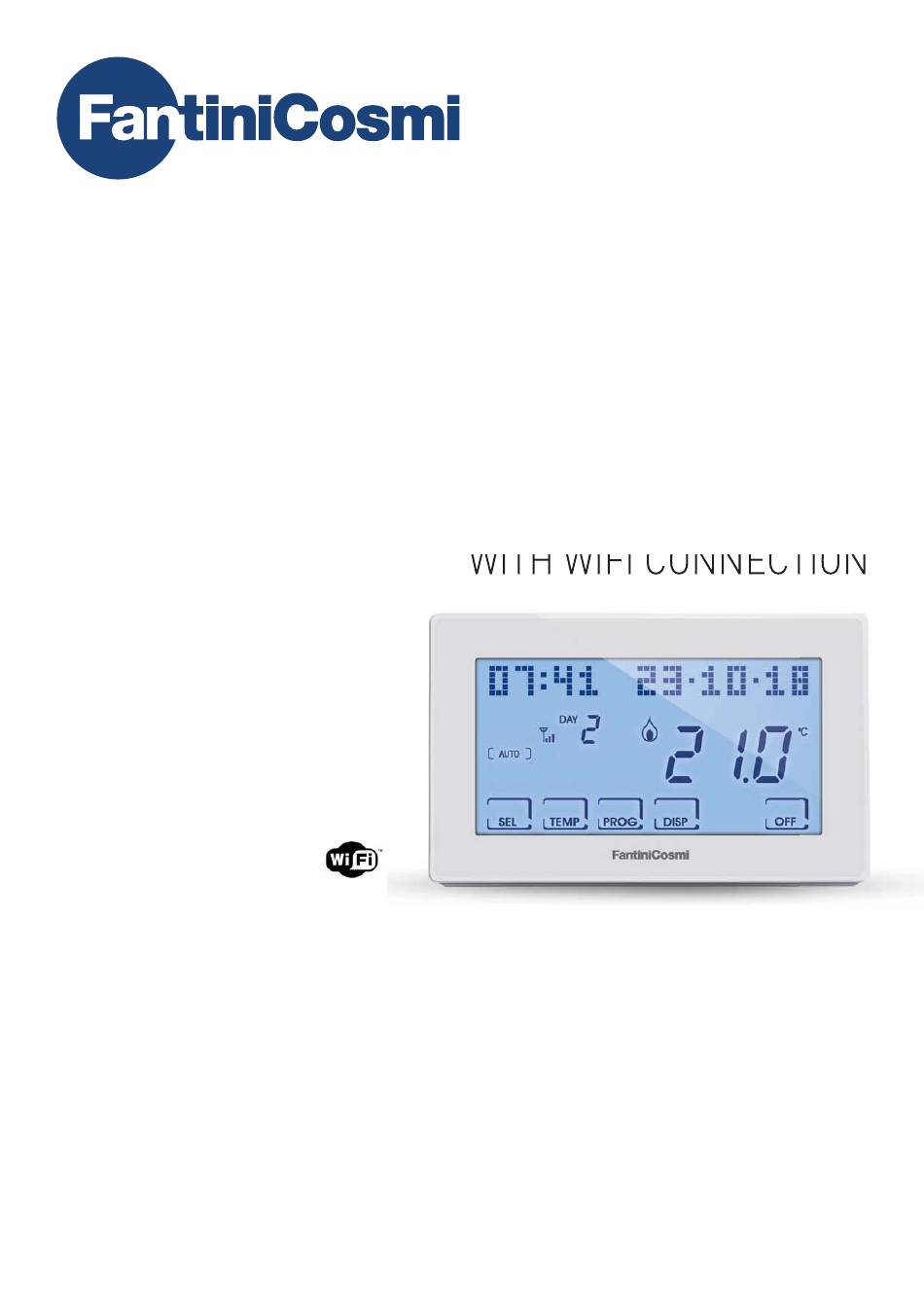

- Page 1 INSTRUCTIONS FOR USE CH180WIFI LITE TOUCH-SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
-
Page 2: Operation
OPERATION The CH180WIFI LITE is a programmable thermostat with a WiFi connection to control heating and/or cooling system either directly or via the Intelliclima+ APP on a smartphone or tablet. It has a customised temperature program on a time profi le for every season, which can be changed as needed. -
Page 3: Description Of Display Keys

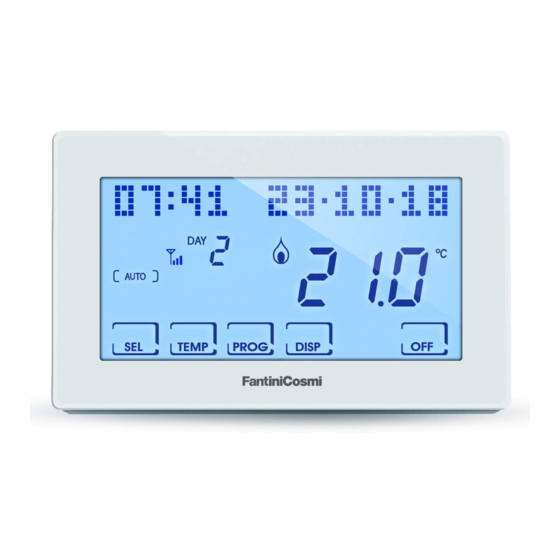

CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION DESCRIPTION OF DISPLAY KEYS The fi rst time any touch key is pressed, this activates the functions of the buttons themselves and lights up the display. AUTO ENTER COPY TEMP PROG... -
Page 4: Technical Features
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION TECHNICAL FEATURES Temperature regulation scale 2 - 40°C, 0.1°C increment Measurement scale/room T display - 50 - + 50°C Power supply 230V 50 Hz 1 relay with potential-free changeover contact Output type... -
Page 5: Table Of Contents
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION Contents OPERATION ..............2 7 - REMOTE PROGRAMMING VIA APP ......23 7.1 - WIFI ACTIVATION ..............23 CONTENTS OF PACKAGE ..........2 7.2 - INSTALLATION PROCEDURE ..........24 DESCRIPTION OF DISPLAY KEYS ........3 7.3 - WIFI STATUS ...............25... -
Page 6: Installation
Installation operations must be performed with the system’s power disconnected. The CH180WIFI LITE programmable thermostat must be installed on the wall or on a fl ush mounting box, in 3 units or round, at a height of about 1.5m from the fl oor, in a suitable position to detect the room temperature correctly. - Page 7 CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION Pry the back panel off the body by applying pressure to the specifi c groove on the lower part. Remove the insulating protection by unscrewing the specifi c waterproof screw. 230V~...
-
Page 8: Electrical Connection
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 2 - ELECTRICAL CONNECTION ATTENTION! Electrical connections must be made by qualifi ed personnel. ATTENTION! Electrical connection operations must be done with the system’s power disconnected. Electrical connections must be made by making reference to the following diagram. -
Page 9: Quick Programming Guide (Prog)
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 3 - QUICK PROGRAMMING GUIDE (PROG) The fi rst time any touch key is pressed has no effect, but only activates the functions of the buttons themselves and lights up the display. -
Page 10: Winter/Summer Setting
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 3.2 - WINTER/SUMMER SETTING 12:01 01-01-18 23.0 TEMP PROG DISP USER PROGR DATE AND TIME WINTER PRESS PRESS ENTER DATE AND TIME WINTER WINTER SUMMER LOCK NO ENTER PROG... -
Page 11: Setting Keyboard Lock With Password
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 3.3 - SETTING KEYBOARD LOCK WITH PASSWORD 12:01 01-01-18 23.0 TEMP PROG DISP USER PROGR DATE AND TIME LOCK NO PRESS DATE AND TIME LOCK NO WINTER LOCK YES LOCK NO... -
Page 12: Operation (Sel)
TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 4 - OPERATION (SEL) The CH180WIFI LITE programmable thermostat is a device equipped with a temperature sensor, with an output relay on board, which manages heating and/or air conditioning units. The LCD display shows you how much energy the entire system consumes through an intuitive graph. -
Page 13: Selecting The Operating Program
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 4.2 - SELECTING THE OPERATING PROGRAM The programs are selected by cyclic sequence. 12:01 01-01-18 23.0 [ MAN ] TEMP PROG DISP 12:01 01-01-18 12:01 01-01-18 12:01 01-01-18 23.0 24.4 24.4... -
Page 14: Setting "Auto" Program Temperature
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 4.3 - SETTING “AUTO” PROGRAM TEMPERATURE You can set a tCOMF (comfort temperature) and tECO (economy temperature) temperature value between 2° and 40°C. 12:01 01-01-18 24.4 [ AUTO ] TEMP PROG DISP TCOMF = 20.1... -
Page 15: Parameter Display (Disp)
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 5 - PARAMETER DISPLAY (DISP) Pressing the DISP key allows you to cyclically view the most important parameters. 5.1 - SERIAL NUMBER 12:01 01-01-18 24.2 [ AUTO ] TEMP PROG DISP... -
Page 16: Hours Of Use
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 5.2 - HOURS OF USE The programmable thermostat records the total consumption of the heating and cooling hours. 12:01 01-01-18 24.2 [ AUTO ] TEMP PROG DISP 12:01 01-01-18 HOURS OF USE PREV. -
Page 17: Advanced Functions (Prog)
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 6 - ADVANCED FUNCTIONS (PROG) To access ADVANCED PROGRAMMING, hold down the PROG key for a few seconds. 6.1 - SECONDS DISPLAY STAYS ON Allows you to adjust the display’s backlight (sky blue light) with a duration that can be programmed between 5 and 30 seconds. -
Page 18: Daylight Saving Time
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 6.3 - DAYLIGHT SAVING TIME Automatically selects daylight saving time, applicable in Europe and some other countries. This set-up automatically updates the time when it changes (March and October) (default = YES). -
Page 19: Room Temperature Correction
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 6.5 - ROOM TEMPERATURE CORRECTION This allows you to modify the read temperature, which, due to the recessed wall installation or perhaps a non-ideal height, might not indicate the true temperature perceived. -
Page 20: Celsius / Fahrenheit
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 6.7 - CELSIUS / FAHRENHEIT This allows you to choose the temperature display scale between Celsius and Fahrenheit degrees. 12:01 01-01-18 23.0 TEMP PROG DISP ADV. PROGR LIGHT ON 5S CELSIUS 26.0... -
Page 21: Wifi
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 6.9 - WIFI This displays the WiFi connection status of the device. 12:01 01-01-18 23.0 TEMP PROG DISP ADV. PROGR LIGHT ON 5S WIFI: A.P. PRESS PRESS LIGHT ON 5S CELSIUS... -
Page 22: Resetting Default Parameters
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 6.11 - RESETTING DEFAULT PARAMETERS This allows you to reset all the parameters (except date and time) to the factory settings. 12:01 01-01-18 23.0 PROG TEMP DISP RESET NO ADV. PROGR... -
Page 23: Remote Programming Via App
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 7 - REMOTE PROGRAMMING VIA APP The WIFI signal in the programmable thermostat allows the device to be remote-controlled via the Intelliclima+ APP, available free of charge on Google Play Store and Apple App Store. -
Page 24: Installation Procedure
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 7.2 - INSTALLATION PROCEDURE Install the APP and when fi rst activated, create an account by entering the user name and password. Create a new home by pressing enter the name and press... -
Page 25: Wifi Status
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 7.3 - WIFI STATUS The antenna allows you to display the quality of the WiFi signal. 12:01 01-01-18 23.0 PROG TEMP DISP EXCELLENT signal GOOD signal POOR signal If the icon is: ■... -
Page 26: Disposal
CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 8 - DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. - Page 27 CH180WIFI LITE TOUCH SCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION...
- Page 28 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
