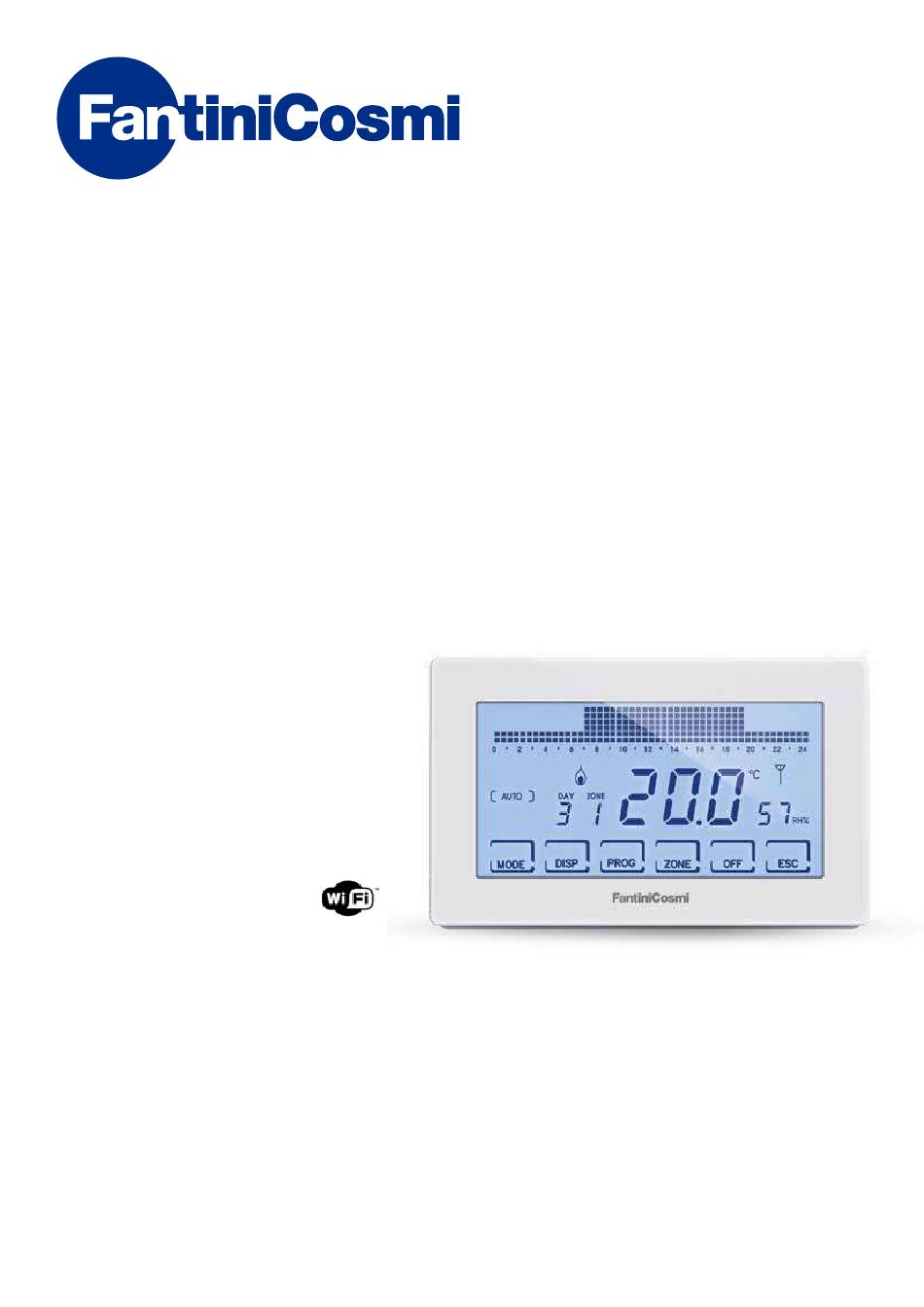

- Page 1 INSTRUCTIONS FOR USE CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
-
Page 2: Operation
The multi-zone system allows users to manage different temperature and humidity levels within the same home. The values of each zone are set on the master CH180RFWIFI and modified locally by one or more devices installed inside the rooms. Communication between all the devices occurs via radio waves. -
Page 3: Description Of Display Keys
CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION Once powered, the “MASTER” CH180RFWIFI must be included in the Intellicomfort+ system wireless network. This operation requires use of the configurator (code 1590880) which provides the operating instructions through its display. When requested by the message on the display, you must move the tip of the configurator toward the point indicated on the device to be configured to perform touch recognition. -
Page 4: Technical Features
CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION TECHNICAL FEATURES Temperature adjustment scale 2 - 40°C, increase 0.1°C Measurement scale/room T display - 50 - + 50°C Relative humidity adjustment scale 30 - 70%, increase 0.1°C Measurement scale/room relative humidity display... -
Page 5: Table Of Contents
CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION Summary OPERATION ..............2 7 - ADVANCED FUNCTIONS (PROG) ......24 MULTI-ZONE SYSTEM ............2 7.1 - DISPLAY ON TIME ...............24 7.2 - DISPLAY INTENSITY ............24 DESCRIPTION OF DISPLAY KEYS ........3 7.3 - DAYLIGHT SAVINGS TIME ...........25... -
Page 6: Installation
Make sure that the power supply is disconnected before performing installation. The CH180RFWIFI programmable thermostat must be wall or recess mounted, with 3 modules or round box, at a height of about 1.5 m from the floor, in a position suitable to correctly detect the room temperature. - Page 7 CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION Pry the back panel off the body by applying pressure to the specific groove at the bottom. Remove the insulating protection by unscrewing the specific waterproof screw. 230V~ 230V~ 5(3)A 250v~ 5(3)A 250v~ Make the electrical connections (refer to the “Electrical connections”...
-
Page 8: Electrical Connection
CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 2 - ELECTRICAL CONNECTION ATTENTION! Electrical connections must be made by qualified personnel. ATTENTION! Electrical connection operations must be done with the system’s power disconnected. Electrical connections must be made referencing the following diagram. -
Page 9: Quick Guide For Programming (Prog)
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 3 - QUICK GUIDE FOR PROGRAMMING (PROG) The first time any touch key is pressed has no effect, but only activates the functions of the buttons themselves and lights up the display. After 30 seconds of no interaction, the display goes back to the main screen. -
Page 10: Winter/Summer Setting
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 3.2 - WINTER/SUMMER SETTING 12:01 01-01-18 23.0 [ MAN ] MODE DISP PROG ZONE USER PROGR DATE AND TIME WINTER PRESS PRESS DATE AND TIME WINTER SUMMER WINTER PROFILE AUX1: ON LOCK NO 3.3 - HOURLY PROGRAMMING SETTING (PROFILE) The profiles are set based on whether WINTER or SUMMER mode was previously selected. - Page 11 CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT Pressing allows you to select the profile depending on the time. SETTABLE PROFILES: 18.0 ■ tC (comfort) = SUMMER, WINTER ZONE ■ tE (economy) = SUMMER, WINTER ■ tA (antifreeze) = for WINTER only COPY ■...
-
Page 12: Aux1 Setting
To edit it, follow the instructions in paragraph 7. 3.5 - SETTING KEYBOARD LOCK WITH PASSWORD Lets you lock the CH180RFWIFI keyboard and any CH120RF included in the network through a 3-digit numerical code. It works only once, then it must be enabled again. - Page 13 Pressing OK allows you to enter the set password and unlock the keyboard. [ MAN ] Note: with the KEYBOARD LOCK WITH PASSWORD function running, the CH120RF keys connected to the MASTER CH180RFWIFI will also be locked. A blackout does not reset the password.
-
Page 14: Operation (Mode)
To select a zone, exit from STAND-BY mode and press the ZONES key until the selected zone number is displayed. To exit from the zone, press the ESC key, or else the CH180RFWIFI will go back to the main screen after 30 seconds. -
Page 15: Selecting The Operating Program
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 12:01 01-01-18 ■ SYSTEM OFF or ANTIFREEZE PROGRAM Press the OFF key to switch off the system. The antifreeze temperature is maintained 23.0 during WINTER mode. If the OFF key is pressed again in SYSTEM OFF mode, the system will return to the [ OFF ] previously set operating mode. -
Page 16: Setting "Auto" Program
You can set the following temperature levels: tC, tE, tA/ 23.0 OFF (every half hour). [ AUTO ] The CH180RFWIFI has weekly pre-set profiles in both winter and summer, but the user can edit them. See par. 3.3, page 10. MODE DISP... -
Page 17: Setting General "Jolly" Program
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 4.4 - SETTING GENERAL “JOLLY” PROGRAM The device manages the system using a temperature that can be set over a variable amount of time (you set the hour and the day up to when you wish to keep the set temperature). -
Page 18: Setting "Auto" And "Holiday" Program Temperature
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 4.6 - SETTING “AUTO” and “HOLIDAY” PROGRAM TEMPERATURE If the device is in AUTO or in HOLIDAY, you can set a tCOMF (comfort temperature) and tECO (economy temperature) temperature value between 2° and 40°C. -
Page 19: Displaying Parameters (Disp)
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 5 - DISPLAYING PARAMETERS (DISP) Press the DISP key to view the most significant parameters cyclically. 5.1 - SEASON 12:01 01-01-18 23.0 [ AUTO ] MODE DISP PROG ZONE TCOMF = 20.1 WINTER PRESS... -
Page 20: Hours Of Use
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 5.3 - HOURS OF USE The programmable thermostat records the total consumption of the heating and cooling hours. 12:01 01-01-18 23.0 [ AUTO ] MODE DISP PROG ZONE TCOMF = 20.1 HOURS OF USE... -
Page 21: Wifi Status
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 5.4 - WIFI STATUS Allows you to view the WiFi signal quality. 12:01 01-01-18 23.0 [ AUTO ] MODE DISP PROG ZONE TCOMF = 20.1 WIFI STATUS TCOMF PRESS PRESS 24.4 TECO WINTER EXT = ---... -
Page 22: Rssi
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 5.6 - RSSI Displays the quality of the signal received from the devices connected directly to the programmable thermostat. 12:01 01-01-18 23.0 [ AUTO ] MODE DISP PROG ZONE TCOMF = 20.1 RSSI THERMOSTAT... -
Page 23: Faults
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 5.7 - FAULTS Allows you to view the presence of any faults on the programmable thermostat. The flashing icon on the display indicates that a fault is present on one of the devices making up the multi-zone system. -
Page 24: Advanced Functions (Prog)
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7 - ADVANCED FUNCTIONS (PROG) Press and hold the PROG key for a few seconds to access ADVANCED PROGRAMMING. 7.1 - DISPLAY ON TIME Allows you to adjust the display backlight time (with white light) from 5 to 30 seconds (default = 5s). -
Page 25: Daylight Savings Time
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7.3 - DAYLIGHT SAVINGS TIME Automatically selects the daylight saving time, applicable in European and some other countries. This allows you to automatically update the time at the time change (March and October) (default = YES). -
Page 26: Relative Humidity
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7.5 - RELATIVE HUMIDITY This parameter allows you to set the relative humidity limit above which make a dehumidifier starts to operate. 12:01 01-01-18 23.0 [ MAN ] MODE DISP PROG ZONE ADVAN PROGR... -
Page 27: Zone Names
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7.7 - ZONE NAMES Allows you to assign a name to each zone of the system. 12:01 01-01-18 23.0 [ MAN ] MODE DISP PROG ZONE ADVAN PROGR LIGHT ON 30S ZONE NAMES PRESS... -
Page 28: Offset
7.8 - OFFSET Allows to modify the temperature measured by CH180RFWIFI and by the heads O60RF which act as zone. Due to an incorrect wall installation or assembly of the heads on radiators located in non-ideal positions (behind walls, curtains or in crannies), the sensors might not indicate the correct temperature perceived by the devices. -
Page 29: Celsius / Fahrenheit
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7.10 - CELSIUS / FAHRENHEIT Allows you to choose the set the temperature display scale between degrees Celsius and degrees Fahrenheit. 12:01 01-01-18 23.0 [ MAN ] MODE DISP PROG ZONE ADVAN PROGR LIGHT ON 30S CELSIUS 26.0... -
Page 30: External Probe
TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7.12 - EXTERNAL PROBE The CH180RFWIFI does not have an auxiliary input but, inside a multi-one system with at least one CH120RF, it can manage the auxiliary input of the CH120RF itself, if correctly configured (see "ANTI-CONDENSATE ADJUSTMENT" and "EXTERNAL PROBE"... -
Page 31: Cool Off
DIFF: STD RESET NO If COOL OFF = YES, the CH180RFWIFI controls cooling system shut-down at the same time as dehumidifier activation (it is necessary to set a RH% threshold and the DEW function must be disabled). Note: with the control active, when a zone switches the cooling system off, the symbol flashes in the corresponding zone. -
Page 32: Aux1
Press the arrows to switch AUX1 relay on/off. Note: CH175 in AUX 1 mode can only be associated to the programmable thermostat CH180RFWIFI and must be configured as auxiliary actuator AUX 1. -
Page 33: Zone Deu
Note: Only the zones with CH180RFWIFI and CH120RF are displayed. CH175 in DEU ZONE A or in DEU ZONE B can only be associated with programmable thermostat CH180RFWIFI and must be configured as auxiliary actuator DEU ZONE A or DEU ZONE B. -
Page 34: Wifi
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7.16 - WIFI Displays device WiFi connection status. 12:01 01-01-18 23.0 [ MAN ] MODE DISP PROG ZONE ADVAN PROGR LIGHT ON 30S WIFI: A.P. PRESS PRESS LIGHT ON 30S CELSIUS INT LIGHT 5... -
Page 35: Information
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 7.17 - INFORMATION Displays the software version of the programmable thermostat. 12:01 01-01-18 23.0 [ MAN ] MODE DISP PROG ZONE ADVAN PROGR LIGHT ON 30S CH180RW V1.0 PRESS PRESS LIGHT ON 30S CELSIUS... -
Page 36: Remote Programming Via App
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 8 - REMOTE PROGRAMMING VIA APP The WiFi signal on the programmable thermostat allows you to remotely control the device via the Intelliclima+ app, available free of charge from the Google Play Store and Apple App Store. -
Page 37: Installation Procedure
CH180RFWIFI TOUCHSCREEN WIRELESS WEEKLY PROGRAMMABLE THERMOSTAT 8.2 - INSTALLATION PROCEDURE Install the app and, upon first activation, create an account by entering a user name and password. Create a new house by pressing the key. Enter the desired name and... -
Page 38: Connection Problems
CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 8.3 - CONNECTION PROBLEMS If the router does not connect to the server: 1. Check that the router password is correct, repeating the steps in paragraphs 8.1 and 8.2; 2. Check that the router supports standard 802.11 b/g/n;... -
Page 39: Disposal
CH180RFWIFI WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION 9 - DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. - Page 40 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
