TABLE OF CONTENTS Thermostat confi guration .........10 Technical features of the thermostat ......15 Introduction ..............3 DIN bar CH172D actuator ........15 Controls and signals ..........4 Application and use .........15 Controls .............4 Fastening and connecting .......16 Signals ...............4 Electric connections ........17 User’s manual ............5 Connecting several actuators with a thermostat “Summer / Winter”...

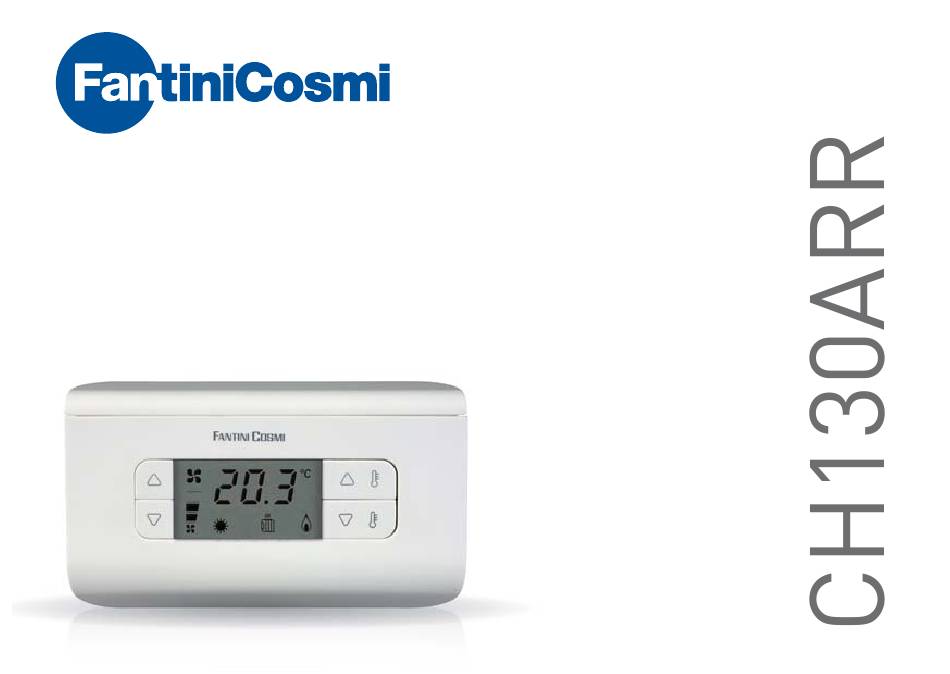

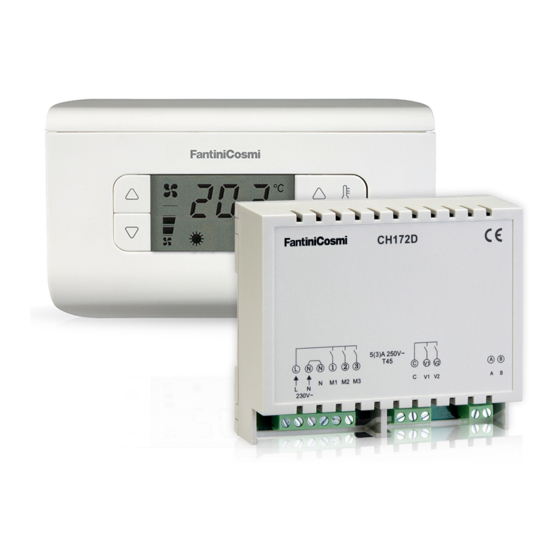

Introduction This fan-coil thermostat control kit CH130ARR The settings and data are store in a permanent is made up of a CH130AR thermostat and a memory that will retain them even when the DIN bar CH172D actuator. thermostat is not connected to the CH172D.
Controls and signals Signals Controls 1. Measured temperature 1. Fan speed increase button 2. “Comfort” symbol 2. Fan speed decrease button 3. “Economy” symbol 3. Selected program temperature value 4. “Summer” symbol increase button 5. “Winter” symbol 4. Selected program temperature value 6.
User’s manual “Summer / Winter” selection To start the thermostat after the same has To switch from the “Winter” operation (i.e. heat- been installed, proceed as follows: ing system) to the “Summer” operation (i.e. cooling system), and vice versa, press the 1+2 1.
Operating modes “Economy” operating mode The CH130AR thermostat features three dif- With the “Economy” operating mode, the ther- ferent manual operating modes: “Comfort”, mostat regulates the heating or cooling system “Economy”, and the “OFF” function (OFF). operation in order to always keep the same economy temperature set.
“OFF” function (OFF) Fan speed selection The “OFF” function can be achieved by setting The fan speed can be set to three fi xed levels the fan speed to zero: in this case, the thermo- (minimum, medium, maximum) or automati- stat will carry out no heat regulation, not even cally, by pressing buttons “1”...
Maintenance Fastening the socket The thermostat is supplied complete with a The thermostat should be cleaned by using socket suitable for mounting both on the wall a soft cotton cloth. No detergent should be and to rectangular or round built-in 3-seat used.
To ensure correct operation, the socket shall Actuator connection be placed at a height of approximately 1.5 me- tres from the fl oor, far from heat sources (direct sunlight, etc.) and doors/windows. Electric connections Connect the power supply wires running from the CH172D actuator with terminals A and B, as illustrated in the fi...
Auxiliary input connection Fastening the thermostat onto the socket Insert and screw the thermostat down to the socket (make sure that the multi-pole connec- tor is engaged correctly). Fit the battery top cover back into place. Thermostat confi guration Warning! The confi guration shall be performed only by qualifi...
Page 11
The confi guration parameters are represented Index Parameter Values Preset by an index (P01, P02…) on the display and by pressing buttons “1” and “2”, the parameter indexes will be scrolled through. Press button Type of system “3” to enter the displayed parameter. External probe 1-2-3-4-5 To modify the current parameter, press buttons...
Page 12
P01: Type of system Index Parameter Values Preset 1 two-tube system: the thermostat will drive only the valve (ON/OFF type) used for heat- ing both during the heating and the cooling: in “Summer” lower 2 °C – 40°C 5,0 °C fact, the valve will control both hot water and (step 1°C) limit set-point...
Page 13
set to 2) will be shown on the display, yet the P05: “Winter” valve type changeover temperature will not be shown. 1 normally open: in this case, the water fl ow 3 minimum window/thermostat contact: when is normally open and will be closed when the the contact is open, the thermostat will carry valve is fed.
Page 14
P07: ambient temperature correction fort” and “Economy”) in the cooling mode. It can be adjusted from –4.0 to 4.0°C. This pa- P11: “Summer” upper limit set-point tem- rameter is used to correct the acquired ambient perature temperature. As a matter of fact, the ambient It can be adjusted from 2.0 to 40.0°C.
Technical features of the thermostat Reference temperature 4 K/h gradient Power supply By means of the Actuator cable max. 100m CH172D actuator length Outputs Actuator controls Conforming to the 2006/95/CE, 2004/108/ directives CE, 1993/68/CE Inputs Auxiliary input, external probe input Complying with the EN60730-1, EN60730- standards...
Fastening and connecting Operation check The unit has been designed to be built in (in- Refer to the specifi c user manual for the in- side fan-coils, special panels or other suitable struction on how to use the CH130AR thermo- housings).
Electric connections Connecting several actuators with a ther- mostat A CH130AR is able to control up to fi ve fan- CH130R coils at the same time, by making use of only V p. supply two cables to get connected with the actuators. E.V.
Input Thermostat controls standards Relay output fea- 5(3)A250 V~ tures Fantini Cosmi S.p.A. reserve the right to make Voltage-free switch- 2 valve outputs any necessary technical and construction ing contacts modifi cation without any obligation to give prior Network voltage 3 motor contact outputs notice.
Page 19
DISPOSAL OF PRODUCTS The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005.
Page 20
