Auxiliary input connection

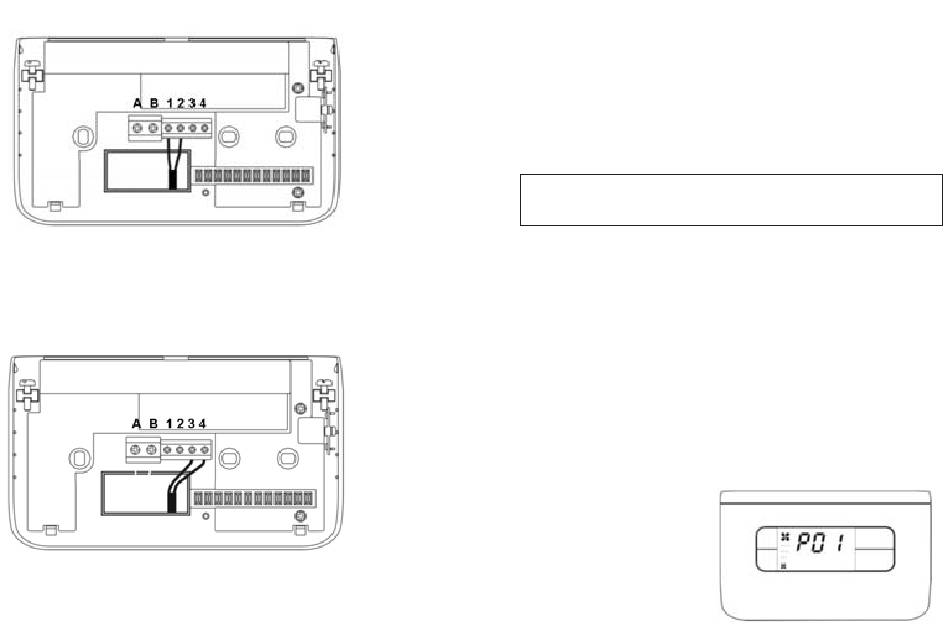

Connect the two auxiliary input wires with
screwed terminals "1" and "2", as illustrated in
the fi gure.
External probe connection
Connect the two external probe wires with
screwed terminals "3" and "4", as illustrated in
the fi gure.

Fastening the thermostat onto the socket

Insert and screw the thermostat down to the
socket (make sure that the multi-pole connec-
tor is engaged correctly). Fit the battery top
cover back into place.
Thermostat confi guration
Warning! The confi guration shall be performed
only by qualifi ed personnel.
The thermostat confi guration allows you to
customize the device operation parameters.
To access the confi guration program, proceed
as follows:
1. Press the "Reset" button and also button 3
(with the thermostat ON).
2. Release the "Reset" button, then keep but-
ton "3" depressed for at least 3 seconds.
3. Release button "3".
