Fantini Cosmi CH193WIFI Manual

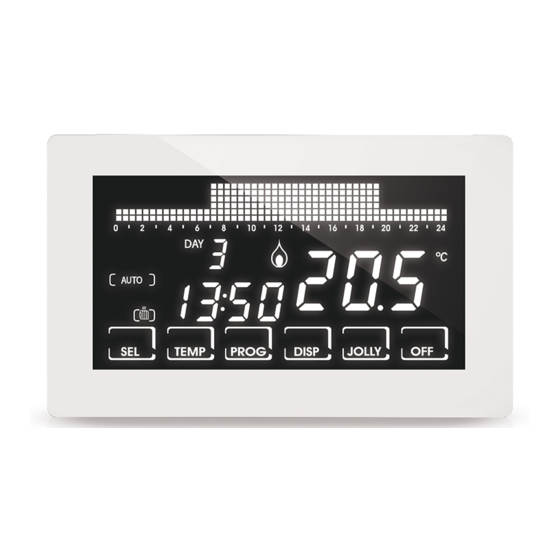

Wifi weekly programmable thermostat with touchscreen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WIFI WEEKLY PROGRAMMABLE THERMOSTAT
WITH TOUCHSCREEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH193WIFI and is the answer not in the manual?

Questions and answers

Related Manuals for Fantini Cosmi CH193WIFI

Summary of Contents for Fantini Cosmi CH193WIFI

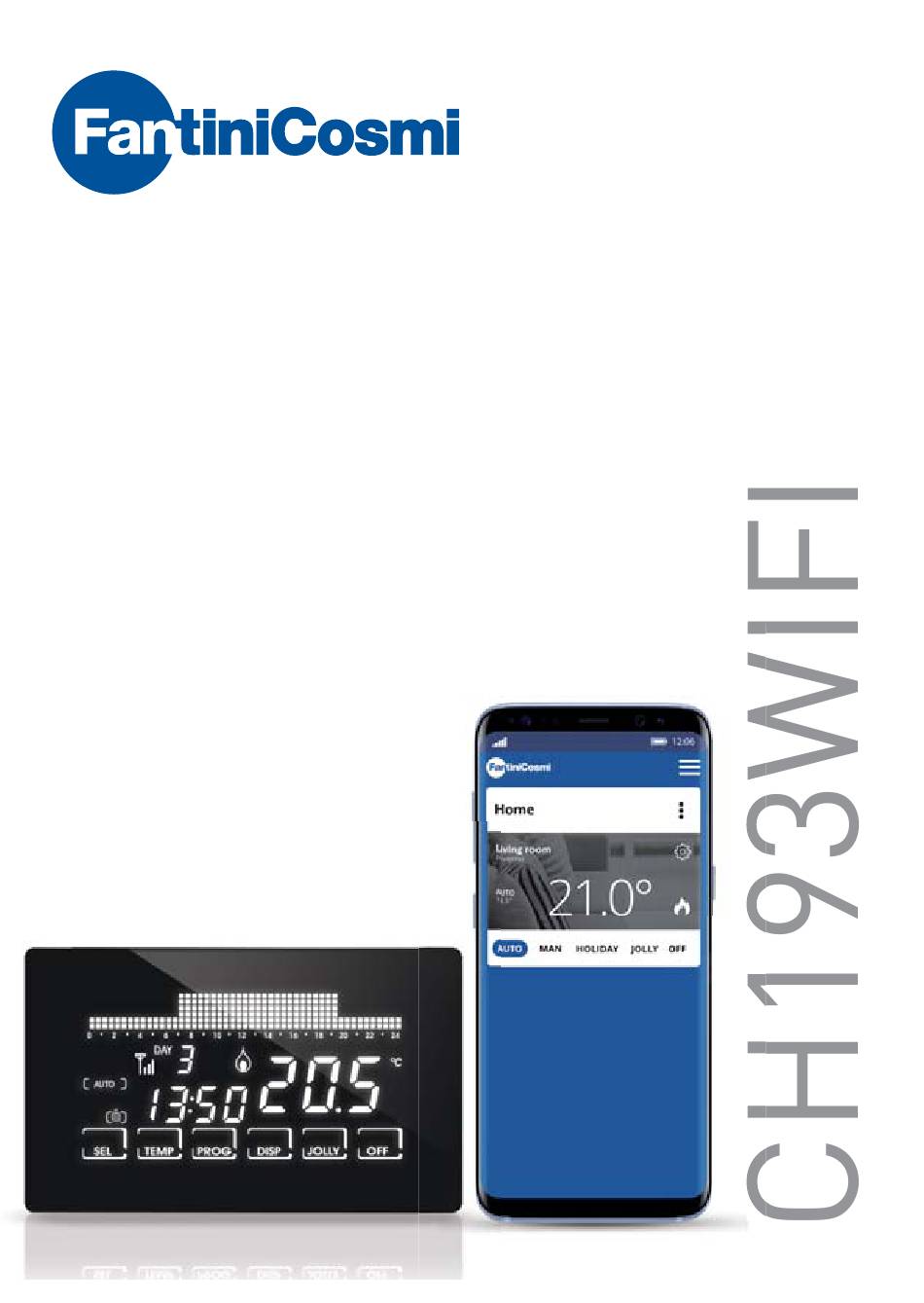

  • Page 1 WIFI WEEKLY PROGRAMMABLE THERMOSTAT WITH TOUCHSCREEN...

  • Page 2: Table Of Contents

    Intellicomfort INDICE INSTALLATION ELECTRICAL CONNECTIONS BUFFER BATTERY FUNCTION MAINTENANCE INSTALLING APP QUICK GUIDE FOR PROGRAMMING description of keys/display setting time and date operating programs settable temperatures setting operating programs FUNCTIONS IN DETAIL available programs settable temperatures advanced keys and functions TECHNICAL FEATURES CONTENTS OF PACKAGE 1 chronothermostat...

  • Page 3: Installation

    Intellicomfort CH193WIFI INSTALLATION The CH193WIFI chronothermostat must be installed in a 3-module recessed box, in the middle of the apartment, preferably 1.5 m off the ground. PERFORM THE FOLLOWING OPERATIONS: Act on the master switch on the electric panel to cut power to the electrical system;...

  • Page 4: Electrical Connections

    Intellicomfort ELECTRICAL CONNECTIONS ATTENTION: installation must be carried out by qualified personnel. N.B. When CH193WIFI is disconnected, the boiler contact remains in its current boiler caldaia CH193WIFI position. Unscrew the lid to connect the auxiliary probe. Probe Sonda Use compatible Fantini Cosmi...

  • Page 5: Maintenance

    Intellicomfort CH193WIFI MAINTENANCE Use only a soft cotton cloth to clean the chronothermostat without any detergent. Do not use paper tissue to clean the screen. KEYBOARD BLOCK To make sure you don’t change any settings on the chronothermostat unintentionally while cleaning, enable the keyboard block by pressing the middle of the display for 5 seconds.

  • Page 6: Installing App

    Intellicomfort INSTALLING APP The programmable thermostat comes with a WiFi interface which allows remote control of the device via APP Intelliclima +, available for free on the Google Play Store and Apple App Store. Intelliclima+ The programmable thermostat must be installed at a distance from the router so that ensure good radio signal quality.
  • Page 7 Intellicomfort CH193WIFI Create a new home by pressing the key , type the desired name and press the key At first power on, the programmable thermostat is ready for connection to the WiFi network. In this mode, the icon is blinking. To activate the pairing mode later, press the...
  • Page 8 Intellicomfort On the APP, start the installation wizard by pressing the key On the APP, start the ins stallation n wizard by pres ssing the e key At the end of the procedure, the new thermostat is displayed inside the home. re, the new thermostat is displa...

  • Page 9: Quick Guide For Programming

    Intellicomfort CH193WIFI QUICK GUIDE FOR PROGRAMMING DESCRIPTION OF KEYS/DISPLAY The chronothermostat is equipped with 6 keys, the function of which varies depending on the situation. It is described by the symbol which appears on the display next to the key.

  • Page 10: Setting Time And Date

    Pressing allows you to go back to the previous page. To exit the Setup menu, press ENTER . OPERATING PROGRAMS The CH193WIFI chronothermostat has different operating modes, called programs: “AUTO” WEEKLY PROGRAM:  one of the four programmable temperatures can be associated to each half hour for each day of the week.

  • Page 11: Settable Temperatures

    Intellicomfort CH193WIFI “JOLLY” TEMPORARY PROGRAM:  you may choose to hold a certain temperature for a certain number of hours, after which it will go back to JOLLY the previously active program. “MAN” MANUAL PROGRAM:  the chronothermostat maintains a fixed temperature, for an unlimited amount of time until another program is selected.

  • Page 12: Setting Operating Programs

    Intellicomfort SETTING OPERATING PROGRAMS PROGRAM SELECTION  press to select, in cyclical sequence, the different operating programs: AUTO -> MAN -> OFF -> HOLIDAY. PLEASE NOTE: the JOLLY temporary program is not included in the program sequence, but can be selected directly by pressing the JOLLY key.
  • Page 13 Intellicomfort CH193WIFI CUSTOMISATION OF WEEKLY “AUTO”  PROGRAMMING AND DAILY “HOLIDAY” PROGRAMMING Keep the key pressed until the text 0 00 PROG “Config” is displayed. This menu allows you to COPY program the weekly profiles (AUTO program) and PROG daily profiles (HOLIDAY program) and to set the advanced functions (see the following paragraphs for their description).
  • Page 14 Intellicomfort “JOLLY” PROGRAM SETTING  In all programs, except MAN, pressing the key selects the temporary JOLLY program: this program allows you to define the desired temperature and its duration in hours (up to a maximum of 240, so to say 10 days). For example, you may want to keep a lower temperature during the entire weekend when no one is home.

  • Page 15: Functions In Detail

    Intellicomfort CH193WIFI FUNCTIONS IN DETAIL AVAILABLE PROGRAMS CH193WIFI has several operating modes (programs): “AUTO” weekly program  “HOLIDAY” daily program  “JOLLY” temporary program  “MAN” manual program  system off or with antifreeze “OFF”program  “AUTO” WEEKLY PROGRAM ...
  • Page 16 Intellicomfort The value of the 4 temperatures can be summer program Monday-Friday °C programmed using the TEMP function. T3 28 The temperature profile (hourly variation) T2 26 can be programmed using the PROG T1 24 function. 18.30 22.30 24h For summer mode (air conditioning), the default program is that shown in the figure.

  • Page 17: Settable Temperatures

    Intellicomfort CH193WIFI MANUAL  MAN mode allows you to set a fixed T1 temperature settable from 2 to 40°C temperature manually (Tman), ranging °C from +2.0 to +40.0 degrees, without T3 21 expiring and without needing to modify the weekly or daily program.

  • Page 18: Advanced Keys And Functions

    Intellicomfort ADVANCED KEYS AND FUNCTIONS USING THE  The SEL key allows you to select the operating mode of the chronothermostat, according to the following programs: HOLIDAY  AUTO  MANUAL   To change the selected program, press SEL in sequence (cyclical). The first 3 statuses are signalled with a small text on the left of the display, while the OFF status appears in the graphical area at the top.
  • Page 19 Intellicomfort CH193WIFI Hours HH : MM/PAG2/SEt  pressing cyclically increases the hours while decreases them. press to change page and press ENTER to exit PROG . Min. HH:MM /PAG3/SEt  pressing cyclically increases the minutes while decreases them. press to change page and press ENTER to exit PROG .
  • Page 20 Intellicomfort Pressing moves forward a half hour Pressing moves up or down from tA to t1 to t2 to t3. Press PROG (briefly) to change the day (1, 2, 3, 4, 5, 6, 7, H). After H you go to page1 (Correction). Press COPY to copy the temperature profile of the current day on the following day.
  • Page 21 Press to go to page 8 and ENTER to exit. CH193WIFI vX.Y/--/PG08  Displays the software version of the CH193WIFI chronothermostat. Press to go to the next page and ENTER to exit. EXT IN: ---/PG12  Allows you to modify management mode of the auxiliary input using keys...
  • Page 22 Intellicomfort This function deactivates the system when the temperature read by the external probe is lower than the set temperature. Connecting a voltage-free contact allows you to set: ALR C : views an alarm in presence of closed contact. With this function active, you may also enable a buzzer by pressing the key followed by ALR 0 : views an alarm in presence of an open contact.
  • Page 23 Intellicomfort CH193WIFI DISP USING THE  The DISP key allows you to view windows with different information regardless of the operating status, only when in AUTO or HOLIDAY modes. The following windows may be viewed: Profile of the day / hour:min / Tamb ...
  • Page 24 Intellicomfort The antifreeze temperature (Ta) can be programmed by pressing TEMP, from OFF (boiler always off) to an interval between 2.0 and 7.0°C, using the arrow keys . The following window is displayed: Ta=x.x° / hour:min / Tamb  To go back to the OFF window, press the arrow key Pressing OFF again sends you back to the previous operating status.
  • Page 25 Intellicomfort CH193WIFI WASTE DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. They will be separated at the recycling facilities.

  • Page 26: Technical Features

    Intellicomfort TECHNICAL FEATURES Temperature adjustment scale 2-40 ÷ 0,1 °C, increase 0.1°C Measurement scale/room T display -35 +60 °C Power supply 230V 50Hz Maximum absorbed power 3 screw clamps (closed + Connection to boiler open) Contact range 5(3)A / 250 Vac Type of action 1.B.U (micro disconnection) Software...
  • Page 27 Intellicomfort CH193WIFI...
  • Page 28 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 Fax +39 02 95307006 | info@fantinicosmi.it EXPORT DEPARTMENT Ph +39 02 95682229 export@fantinicosmi.it www.fantinicosmi.com...
