Summary of Contents for Fantini Cosmi CH191

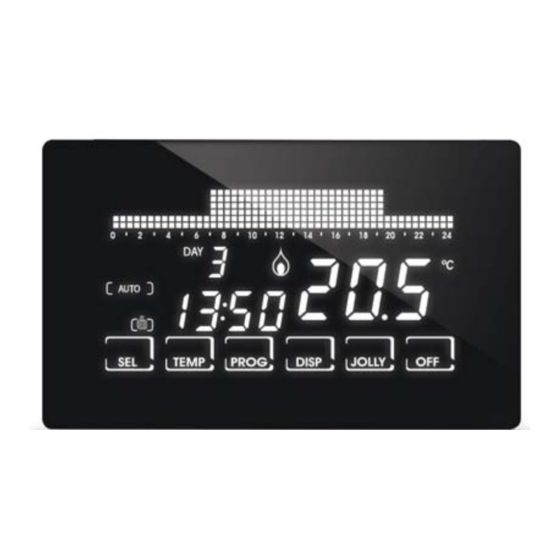

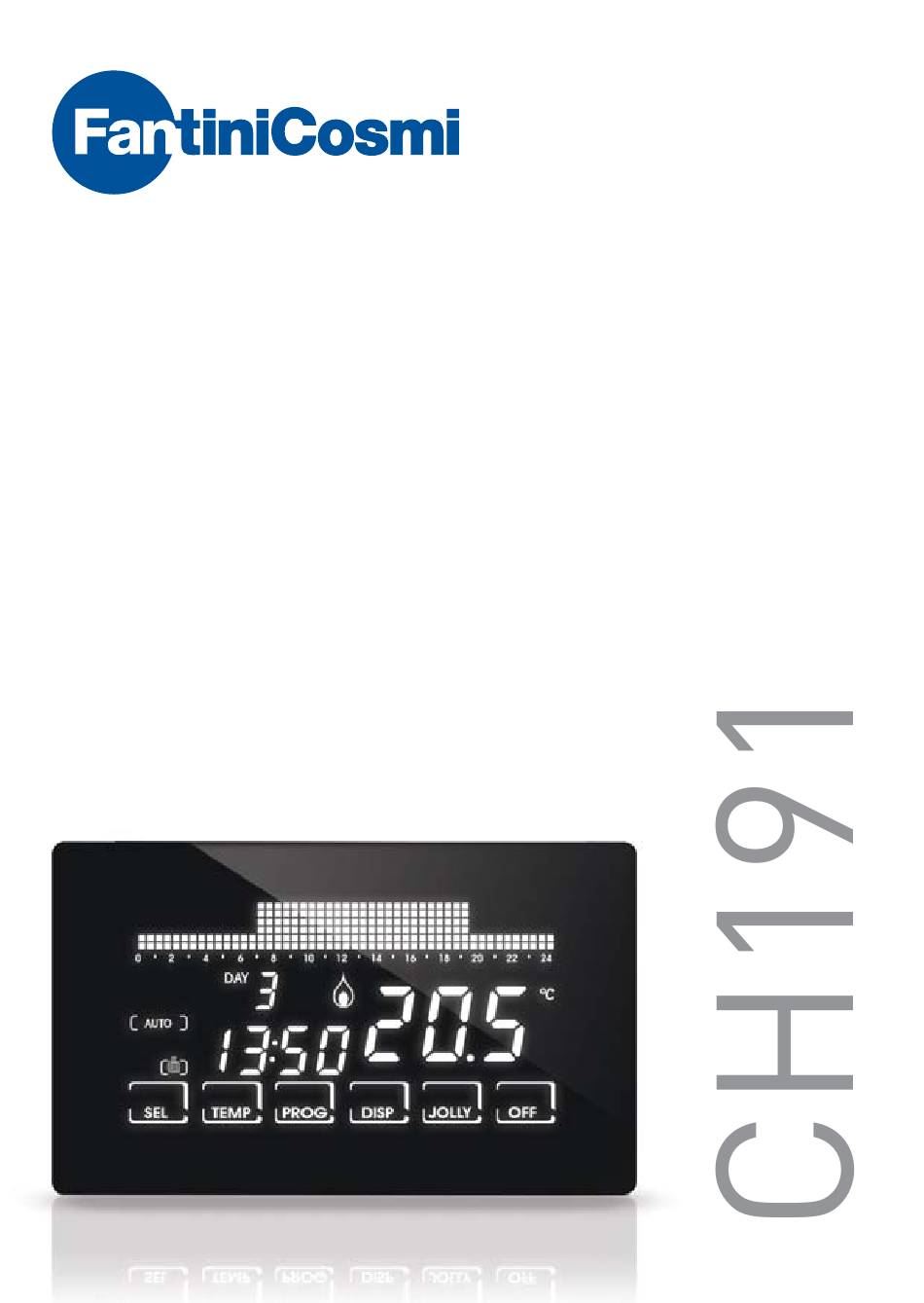

- Page 1 WEEKLY PROGRAMMABLE THERMOSTAT WITH TOUCHSCREEN...
-
Page 2: Table Of Contents
Intellicomfort INDEX INSTALLATION .................. p. 3 ELECTRICAL CONNECTIONS ............p. 4 INSERTION AND REPLACEMENT OF BATTERIES ......p. 4 MAINTENANCE ................. p. 5 QUICK GUIDE FOR PROGRAMMING ..........p. 5 description of keys/display ............p. 5 setting time and date ............... p. -
Page 3: Installation
Intellicomfort CH191 INSTALLATION The CH191 chronothermostat must be installed in a 3-module recessed box, in the middle of the apartment, preferably 1.5 m off the ground. PERFORM THE FOLLOWING OPERATIONS: Act on the master switch on the electric panel to cut power to the electrical system;... -
Page 4: Electrical Connections
(switching off the system) and the display reads ”REPLACE BATTERIES”, until the batteries are replaced. To remove the batteries, extract CH191 from its housing pulling it upwards. When you disconnect the chronothermostat, the text “Disconnected” is displayed for one minute as well as the symbol of the battery flashing (the battery symbol also flashes, but differently, when the batteries are charged, signalling that the body of the chronothermostat is disconnected from the base). -
Page 5: Maintenance
Intellicomfort CH191 MAINTENANCE Use only a soft cotton cloth to clean the chronothermostat without any detergent. Do not use paper tissue to clean the screen. KEYBOARD BLOCK To make sure you don’t change any settings on the chronothermostat unintentionally while cleaning, enable the keyboard block by pressing the middle of the display for 5 seconds. -
Page 6: Setting Time And Date
Pressing allows you to go back to the previous page. To exit the Setup menu, press ENTER . OPERATING PROGRAMS The CH191 chronothermostat has different operating modes, called programs: “AUTO” WEEKLY PROGRAM: one of the four programmable temperatures can be associated to each half hour for each day of the week. -
Page 7: Settable Temperatures
Intellicomfort CH191 “JOLLY” TEMPORARY PROGRAM: you may choose to hold a certain temperature for a certain number of hours, after which it will go back to JOLLY the previously active program. “MAN” MANUAL PROGRAM: the chronothermostat maintains a fixed temperature, for an unlimited amount of time until another program is selected. -
Page 8: Setting Operating Programs
Intellicomfort SETTING OPERATING PROGRAMS PROGRAM SELECTION press to select, in cyclical sequence, the different operating programs: AUTO -> MAN -> OFF -> HOLIDAY. PLEASE NOTE: the JOLLY temporary program is not included in the program sequence, but can be selected directly by pressing the JOLLY key. - Page 9 Intellicomfort CH191 CUSTOMISATION OF WEEKLY “AUTO” PROGRAMMING AND DAILY “HOLIDAY” PROGRAMMING 0 00 Keep the key pressed until the text PROG “Config” is displayed. This menu allows you to COPY program the weekly profiles (AUTO program) and PROG daily profiles (HOLIDAY program) and to set the advanced functions (see the following paragraphs for their description).
- Page 10 Intellicomfort “JOLLY” PROGRAM SETTING In all programs, except MAN, pressing the key selects the temporary JOLLY program: this program allows you to define the desired temperature and its duration in hours (up to a maximum of 240, so to say 10 days). For example, you may want to keep a lower temperature during the entire weekend when no one is home.
-
Page 11: Functions In Detail
Intellicomfort CH191 FUNCTIONS IN DETAIL AVAILABLE PROGRAMS CH191 has several operating modes (programs): “AUTO” weekly program “HOLIDAY” daily program “JOLLY” temporary program “MAN” manual program system off or with antifreeze “OFF”program “AUTO” WEEKLY PROGRAM ... - Page 12 Intellicomfort The value of the 4 temperatures can be summer program Monday-Friday °C programmed using the TEMP function. T3 28 The temperature profile (hourly variation) T2 26 can be programmed using the PROG T1 24 function. 18.30 22.30 24h For summer mode (air conditioning), the default program is that shown in the figure.
-
Page 13: Settable Temperatures
Intellicomfort CH191 MANUAL MAN mode allows you to set a fixed T1 temperature settable from 2 to 40°C temperature manually (Tman), ranging °C from +2.0 to +40.0 degrees, without T3 21 expiring and without needing to modify the weekly or daily program. -
Page 14: Advanced Keys And Functions
Intellicomfort ADVANCED KEYS AND FUNCTIONS USING THE The SEL key allows you to select the operating mode of the chronothermostat, according to the following programs: HOLIDAY AUTO MANUAL To change the selected program, press SEL in sequence (cyclical). The first 3 statuses are signalled with a small text on the left of the display, while the OFF status appears in the graphical area at the top. - Page 15 Intellicomfort CH191 Hours HH : MM/PAG2/SEt pressing cyclically increases the hours while decreases them. press to change page and press ENTER to exit PROG . Min. HH:MM /PAG3/SEt pressing cyclically increases the minutes while decreases them. press to change page and press ENTER to exit PROG .
- Page 16 Intellicomfort Pressing moves forward a half hour Pressing moves up or down from tA to t1 to t2 to t3. Press PROG (briefly) to change the day (1, 2, 3, 4, 5, 6, 7, H). After H you go to page1 (Correction). Press COPY to copy the temperature profile of the current day on the following day.
- Page 17 Press to go to page 8 and ENTER to exit. CH191 vX.Y/--/PG08 Displays the software version of the CH191 chronothermostat. Press to go to the next page and ENTER to exit. EXT IN: ---/PG12 Allows you to modify management mode of the auxiliary input using keys...
- Page 18 Intellicomfort This function deactivates the system when the temperature read by the external probe is lower than the set temperature. Connecting a voltage-free contact allows you to set: ALR C : views an alarm in presence of closed contact. With this function active, you may also enable a buzzer by pressing the key followed by ALR 0 : views an alarm in presence of an open contact.
- Page 19 Intellicomfort CH191 DISP USING THE KEYThe DISP key allows you to view windows with different information regardless of the operating status, only when in AUTO or HOLIDAY modes. The following windows may be viewed: Profile of the day / hour:min / Tamb ...
- Page 20 Intellicomfort (boiler always off) to an interval between 2.0 and 7.0°C, using the arrow keys . The following window is displayed: Ta=x.x° / hour:min / Tamb To go back to the OFF window, press the arrow key Pressing OFF again sends you back to the previous operating status.
- Page 21 Intellicomfort CH191 WASTE DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. They will be separated at the recycling facilities.
-
Page 22: Technical Features
Intellicomfort TECHNICAL FEATURES Temperature adjustment scale 2-40 ÷ 0,1 °C, increase 0.1°C Measurement scale/room T display -35 +60 °C Power supply 2AA 1.5V alkaline batteries Battery duration approximately 1 year * Connection to boiler 3 screw clamps (closed + open) Contact range 5(3)A / 250 Vac Type of action... - Page 23 Intellicomfort CH191...
- Page 24 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 Fax +39 02 95307006 | info@fantinicosmi.it EXPORT DEPARTMENT Ph +39 02 95682229 export@fantinicosmi.it www.fantinicosmi.com...
