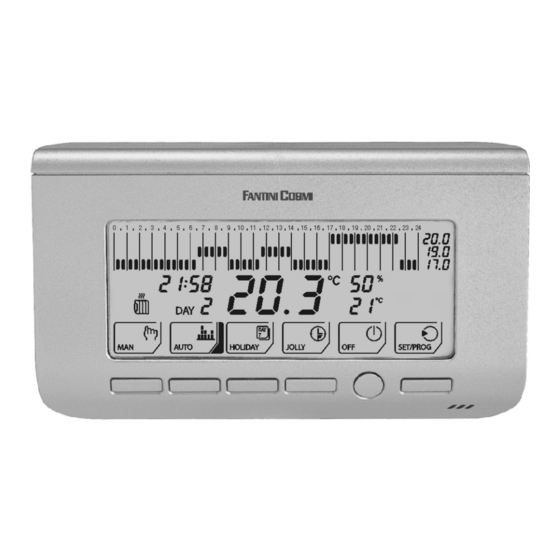

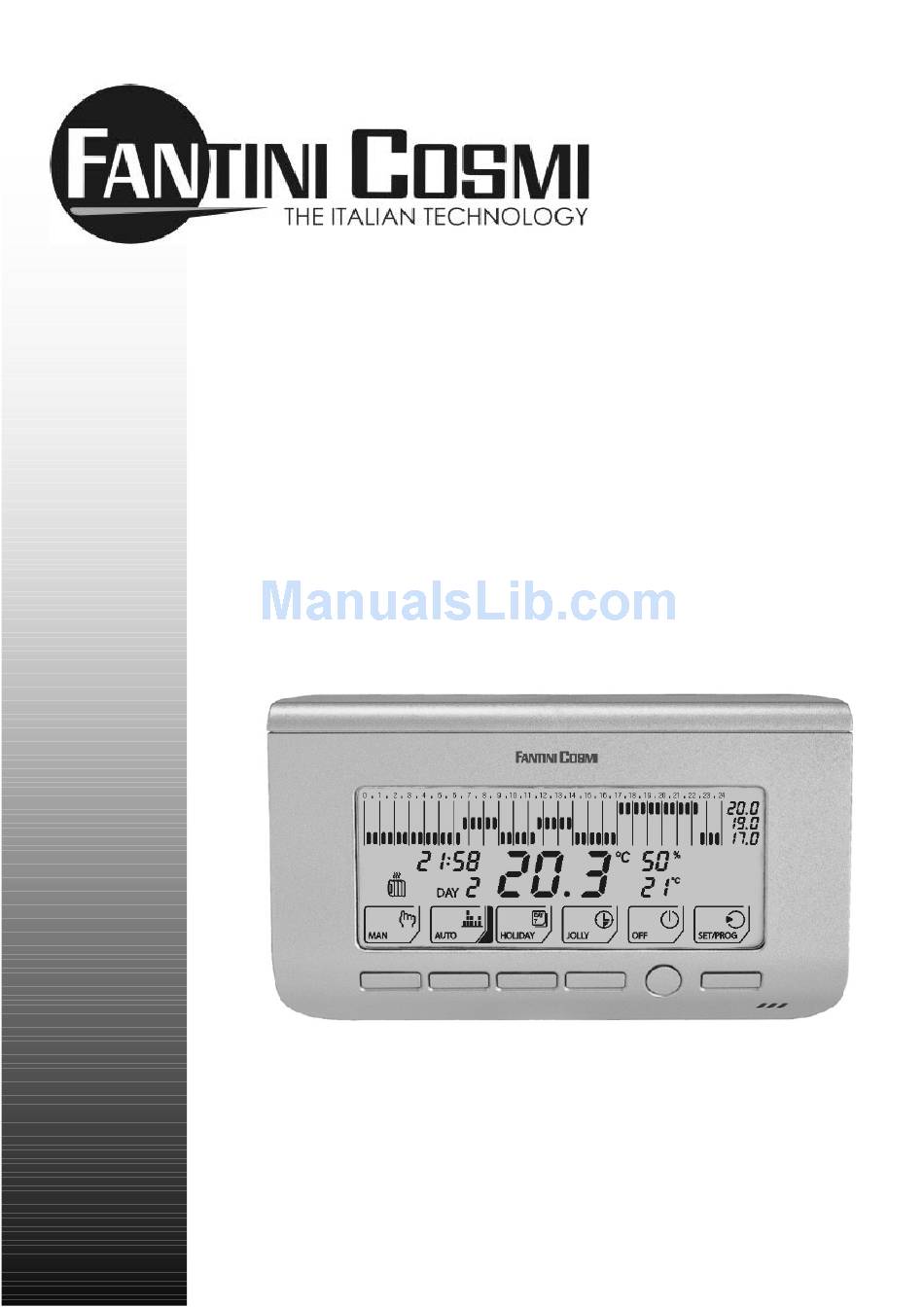

- Page 1 Weekly Chronothermostat CH150 / CH151 / CH152 CH150-16 / CH151-16 / CH152-16...
-
Page 2: Table Of Contents
CONTENTS Introduction..........................2 Controls and signals ........................3 Controls ..........................3 Signals ........................... 3 User Manual..........................4 Set the day and the time....................... 4 Summer / Winter Selection....................5 Modes of operation ....................... 6 Manual mode of operation....................6 Automatic Mode of Operation....................6 Holiday Mode of Operation.................... -
Page 3: Introduction
• CH150 Chronothermostat with 5 A relay. • CH150-16 Chronothermostat with 16 A relay For chronothermostats CH150 and CH150-16 the following external interfaces are available: • Separate temperature probe; • Telephone activator for fixed phone line; this allows remote control from a DTMF (multitone) keyboard;... -
Page 4: Controls And Signals
Controls and signals Controls Signals 13 12 9 8 7 6 1. Time 1. Key to select Manual mode of 2. Temperature pattern operation, or to increase a value (▲) 3. Temperature T1 or duration in days of the Jolly mode of operation 2. -
Page 5: User Manual
User Manual To bring the chronothermostat into operation after it has been installed, perform the following operations in order: 1. Set the day of the week and the time of day. 2. Select Summer or Winter operation. 3. Select the mode of operation. Set the day and the time To enter the current time and day, proceed as follows: 1. -
Page 6: Summer / Winter Selection
4. Change the day with the key ▲ and press the ENTER key to return to the main page of the programming menu. 5. Press ENTER again to exit the programming menu. The chronothermostat returns to the mode of operation briefly interrupted. Summer / Winter Selection To change from Winter (heating system) to summer (cooling system) operation and vice... -
Page 7: Modes Of Operation
Modes of operation The chronothermostat CH150/151/152 has 4 different modes of operation — Manual, Automatic, Holiday and Jolly — and OFF mode. Manual mode of operation In the Manual mode of operation, the chronothermostat regulates the operation of the heating or cooling plant to maintain the same temperature always. To select Manual, press the key MAN. -
Page 8: Holiday Mode Of Operation
Holiday Mode of Operation In the Holiday mode of operation, the chronothermostat CH150 regulates the operation of the heating or cooling system following a single temperature pattern which is the same each day. To select Holiday mode, press the HOLIDAY key. -
Page 9: Jolly Mode Of Operation
«Programming the chronothermostat». Jolly Mode of Operation In the Jolly mode of operation, the chronothermostat CH150 interrupts its current mode and regulates operation of the heating or cooling system to maintain the “Jolly” temperature during the whole time entered (from 1 hour to 99 days and 23 hours, in one hour steps). -
Page 10: Off Mode
To set the hours («h») of duration of Jolly operation, central rotary selector switch. The hours can be set in the range from 0 to 23. To set the days («d») of duration of Jolly operation, use the top rotary selector switch. -
Page 11: Preset Programmes
The plant switches off completely and the wording OFF appears on the display, with no temperature pattern. Preset Programmes The chronothermostat CH150 is supplied with two preset programmes, one winter and the other summer, so that it can be put into operation quickly. Winter programme – weekdays (Monday to Friday) Winter programme –... -
Page 12: Programming The Chronothermostat
Programming the chronothermostat It is possible to personalise the temperature patterns for Automatic and Holiday modes to bring them into line with one’s personal requirements. To enter new temperature patterns, proceed as follows. 1. Enter the main page of the programming menu; the current mode of operation is temporarily interrupted. -
Page 13: Display Of The Temperature Detected By The Separate Probe
5. Press the ENTER key to move to the next day and repeat the steps from point 2 for the other days of the week; the Holiday pattern is indicated as DAY 8. To return to the main page of the programming menu, use the ENTER key to scroll all the eight days or keep the ENTER key pressed for 3 seconds. -
Page 14: Statistics
Statistics The chronothermostat CH150 provides a set of statistical data on operation of the plant. To access these data proceed as follows: 1. Enter the main page of the programming menu. The mode of operation in use is temporarily interrupted. Select the statistics function. -
Page 15: Maintenance
5. Page 4: maximum temperature reached during the current day and the hour when it was reached (in the diagram 22.5 °C at time 21.08). 6. Press the ENTER key twice to return to the mode of operation previously in use. Maintenance To clean the chronothermostat, a soft cotton cloth with no detergent is recommended. -
Page 16: Installation
Installation Note. Installation should be performed only by qualified personnel, complying scrupulously with current regulations. Installation of the chronothermostat comprises the following stages. • Fixing of the base • Electrical connection. • Insertion of the batteries. • Fixing the chronothermostat to the base. •... -
Page 17: Electrical Connection
Electrical connection Before making the connections, remove shield protecting terminals, conserving it with its cross-headed fixing screw. Shield fixing screw Connection of the heating or cooling plant Connect the two wires of the heating or cooling plant to terminal clamps 1 and 2, as shown in the figure. -
Page 18: Inserting The Batteries
Terminal board CTx 1 2 3 Separate temperature sensor Terminal board CH150 Inserting the batteries Insert two long life 1.5V alkaline AA batteries in the back of the chronothermostat, with the positive and negative in the directions shown. When the batteries have been inserted, the... -
Page 19: Fixing The Chronothermostat To The Base
Fixing the chronothermostat to the base Fix the chronothermostat to the base by manual pressure, making sure that the multi-pole connector is inserted correctly. The chronothermostat connection is snap-in. Configuring the chronothermostat Note: Configuration must be performed only by qualified personnel. By configuring the chronothermostat one can personalise its operating parameters. - Page 20 Number Parameter Writing Values Preset Type of board connected rEL / rAd / --- none Temperature scale CELS °C / °F °C or FHAr Type of regulation Std or Std / ProP ProP Thermal differential DIFF HI / LO Regulation band bAnd 1 °C –...
- Page 21 Period of regulation Imposes the duration of the regulation cycle (period on + period off) when the proportional temperature regulation mode is chosen. Select 5 minutes for low inertia plants (such as fan coils), 10 minutes for medium inertia plants (such as aluminium radiators), 20 minutes for high inertia plant (such as cast iron radiators).
-
Page 22: Technical Specifications
Display of relative humidity 20% - 90% The device Chronothermostat CH150 conforms to standards CEI EN 60730-1 and second parts. Fantini Cosmi S.p.A. reserves the right to make all the technical and construction changes it considers necessary, with no obligation to advance notice. - Page 23 NOTES: --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------...
- Page 24 Fantini Cosmi S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala MI tel. 02 956 821 - fax 02 9530 7006 e-mail: info@fantinicosmi.it http://www.fantinicosmi.it Technical support: supportotecnico@fantinicosmi.it...
