Maintenance

The thermostat should be cleaned by using
a soft cotton cloth. No detergent should be
used.

Installation

Warning! The thermostat shall be installed only
by qualifi ed personnel, in strict compliance with
the law regulations in force.
The thermostat installation involves carrying
out the following operations:

• Fastening the socket;

• Making the electric connections;
• Fastening the thermostat onto the socket;
• Confi guring the thermostat parameters.
Fastening the socket
The thermostat is supplied complete with a
socket suitable for mounting both on the wall
and to rectangular or round built-in 3-seat
boxes (503).

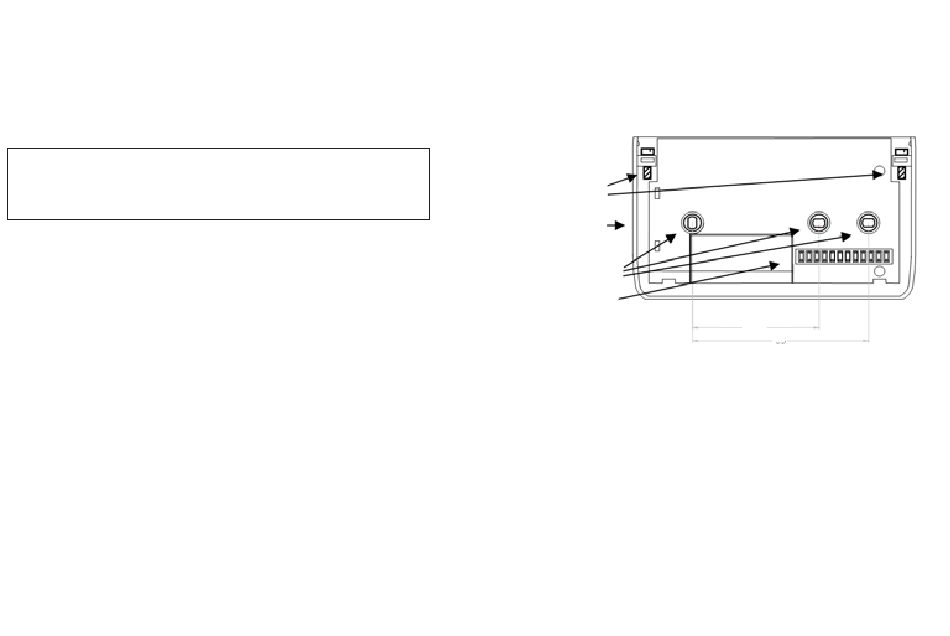

SCREWS
SOCKET
FASTENING
HOLES
MULTI-POLE CON-
NECTOR
Remove the thermostat top cover.
Separate the thermostat socket and front by
removing the screw by means of a suitable tool
and taking the front part off.
Fasten the socket to the desired surface by
means of the special fastening holes; make
sure that the socket is properly engaged, with
no deformation, and that the connecting multi-
pole connector is located in the right bottom
corner.
8
60.0
83
DRILLING CENTERS
