Toilet connection
/

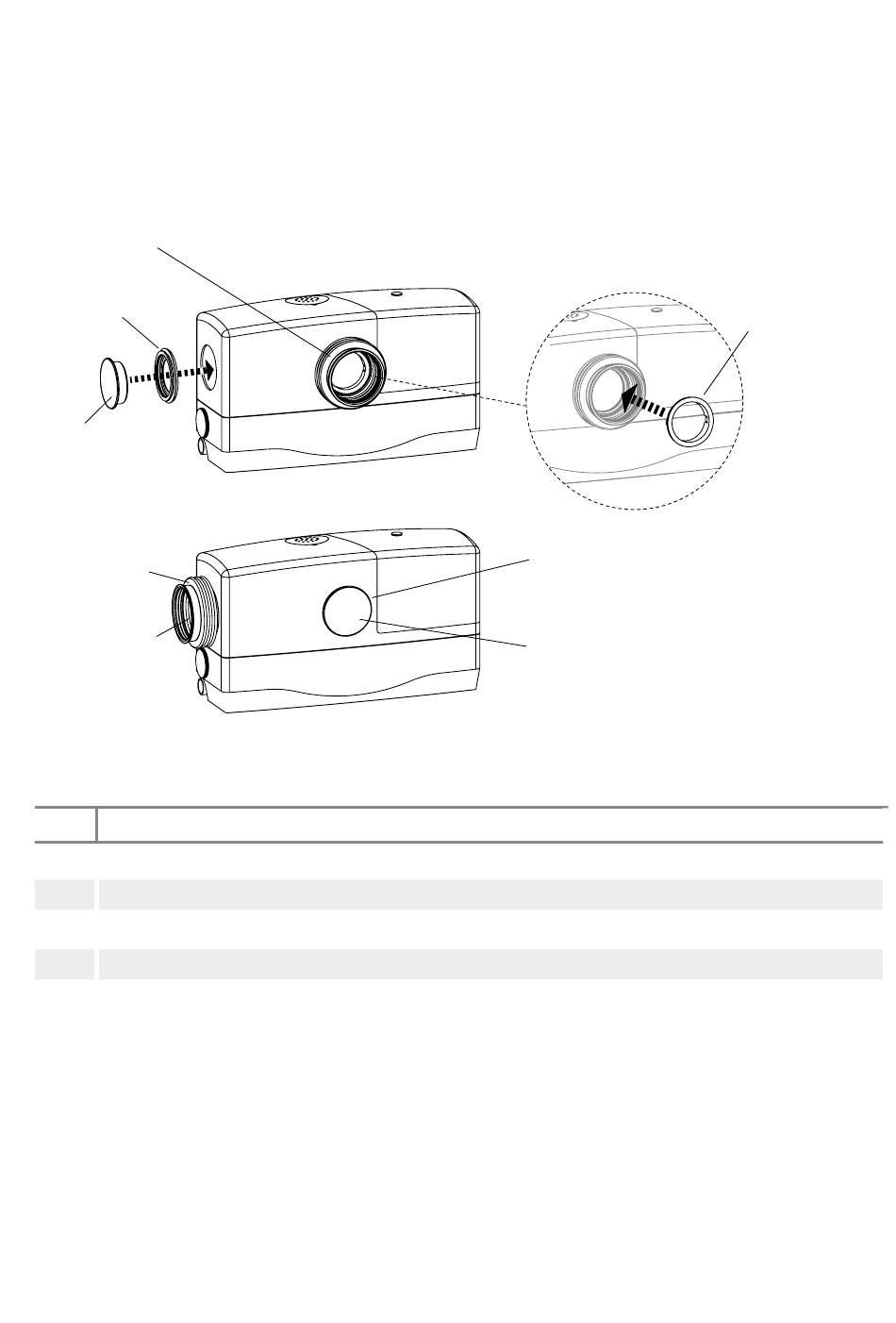

FLOWCB is designed both for direct connection to the front of the unit when installed directly
behind the toilet (set up A), or for side connection to a sewage pipe when installed behind a
partition (set up B).
/
The unused inlet is sealed using the push-fit sealing cap (4) and seal (3).
/
The sealing sleeve (1) is attached to the unit by the clip-on ring clamp (2).
1
3
4
1
2
Pos Description
1
DN 100 sealing sleeve
2
Clamp ring
3
Seal
4
Sealing cap
ATTENTION!
When installed behind a partition the unit should be vented externally using a vent pipe (see page 38,
figure 5).
If not possible a special venting kit is available (see page 43, chapter 14).
