PROFINET:
The connection of PROFINET in the HD67446 device must be made with at least a Category 5E cable. The maximum length of the cable
should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device
to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross
cable.
The connection of PROFINET in the HD67446-E4x-xx device must be made with RJ45 connector.

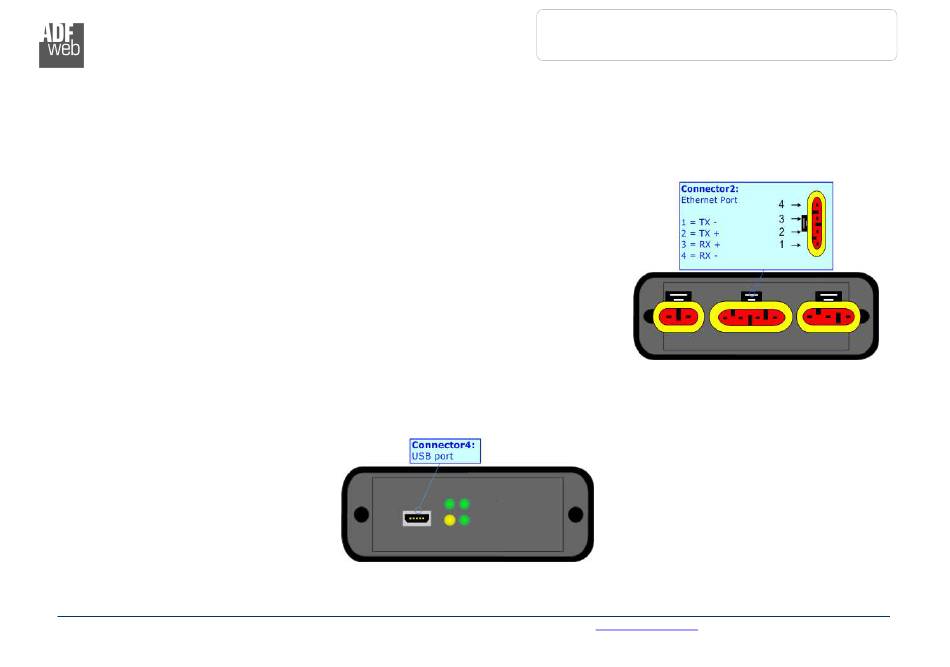

The connection of the PROFINET in the HD67446-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of the
page.
USB:
The USB port is used to start the converter in Boot Mode. It is necessary to use a Micro USB type B cable.
