ADF Web HD67420 User Manual

Snmp agent / can – converter
Hide thumbs Also See for HD67420:

Advertisement

Quick Links

Download this manual

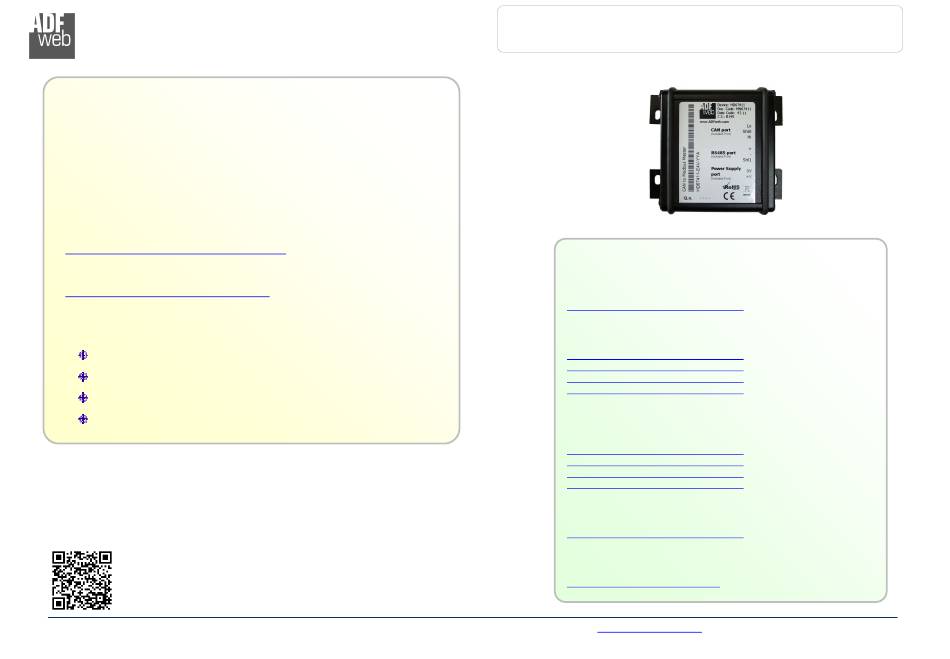

Industrial Electronic Devices
User Manual
Revision 1.000
English
SNMP Agent / CAN – Converter
(Order Code: HD67420)
For Website information:
www.adfweb.com?Product=HD67420
For Price information:
www.adfweb.com?Price=HD67420
Benefits and Main Features:
Wide supply input range
Electrical isolation
Industrial temperature range:
-40°C / 105°C (-40°F / 221°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual SNMP Agent / CAN - Converter
Document code: MN67420_ENG
Revision 1.000 Page 1 of 34
Page 1 of 34
For others Gateways / Bridges:
J1939 to Modbus
See also the following links:
www.adfweb.com?Product=HD67212
CANopen to Modbus
See also the following links:
www.adfweb.com?Product=HD67001
www.adfweb.com?Product=HD67002
www.adfweb.com?Product=HD67004
www.adfweb.com?Product=HD67005
For others Gateways / Bridges:
For CAN bus 2.0A and/or CAN bus 2.0B to Modbus
See also the following links:
www.adfweb.com?Product=HD67011
www.adfweb.com?Product=HD67012
www.adfweb.com?Product=HD67014
www.adfweb.com?Product=HD67015
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
(Modbus RTU)
(Modbus RTU Master)
(Modbus RTU Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(Modbus RTU Slave)
(Modbus RTU Master)
(Modbus TCP Slave)
(Modbus TCP Master)
Phone +39.0438.30.91.31

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD67420 and is the answer not in the manual?

Questions and answers

Related Manuals for ADF Web HD67420

Summary of Contents for ADF Web HD67420

  • Page 1 Revision 1.000 Page 1 of 34 Page 1 of 34 Industrial Electronic Devices User Manual Revision 1.000 English SNMP Agent / CAN – Converter (Order Code: HD67420) For Website information: www.adfweb.com?Product=HD67420 For others Gateways / Bridges: For Price information: J1939 to Modbus www.adfweb.com?Price=HD67420 See also the following links: www.adfweb.com?Product=HD67212...
  • Page 2 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 2 of 34 Page 2 of 34 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX...
  • Page 3 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 3 of 34 Page 3 of 34 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
  • Page 4 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 4 of 34 Page 4 of 34 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 5 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 5 of 34 Page 5 of 34 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67420-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 6 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 6 of 34 Page 6 of 34 Industrial Electronic Devices Figure 1b Connection scheme for HD67420-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 7 Industrial Electronic Devices CHARACTERISTICS: The “HD67420” series are rugged devices used to interface CAN devices with SNMP network. With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
  • Page 8 POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67420-Exx-xx Consumption at 24V DC: Device W/VA HD67420-Exx-xx Caution: Not reverse the polarity power HD67420-E4x-xx HD67420-E7x-xx ADFweb.com Srl –...
  • Page 9 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 9 of 34 Page 9 of 34 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below.
  • Page 10 Female connector. The pinout of Male Mini-Fit connector of the board is at right side of the page. The connection of CAN in the HD67420-E7x-xx device must be made with a AMP SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of the page.
  • Page 11 ETHERNET: The connection of Ethernet in the HD67420 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
  • Page 12 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 12 of 34 Page 12 of 34 Industrial Electronic Devices USE OF COMPOSITOR SW67420: To configure the Converter, use the available software that runs with Windows called SW67420. It is downloadable on the site www.adfweb.com and its operation is described in this document.
  • Page 13 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 13 of 34 Page 13 of 34 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “SNMP Agent / CAN - Converter”...
  • Page 14 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 14 of 34 Page 14 of 34 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
  • Page 15 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 15 of 34 Page 15 of 34 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
  • Page 16 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 16 of 34 Page 16 of 34 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, CAN and SNMP. By Pressing the “Set Communication”...
  • Page 17 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 17 of 34 Page 17 of 34 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67420 (Fig. 2) the “Receive CAN Frames” window appears (Fig. 4). The COB-IDs inserted in this table contain the output data of SNMP.
  • Page 18 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 18 of 34 Page 18 of 34 Industrial Electronic Devices INFO RECEIVE: By pressing the “Info Receive” button from the main window for SW67420 (Fig. 2) the “Receive CAN Frames Info” window appears (Fig. In the column “COB ID”...
  • Page 19 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 19 of 34 Page 19 of 34 Industrial Electronic Devices SEND FRAMES: By pressing the “Send Frames” button from the main window for SW67420 (Fig. 2) the “Send CAN frames” window appears (Fig. 6). The COB-IDs inserted in this table contain the input data of SNMP.
  • Page 20 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 20 of 34 Page 20 of 34 Industrial Electronic Devices INFO SEND: By pressing the “Info Send” button from the main window for SW67420 (Fig. 2) the “Send CAN Frames Info” window appears (Fig. 7): In the column “COB ID”...
  • Page 21 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 21 of 34 Page 21 of 34 Industrial Electronic Devices SET SNMP ACCESS: By pressing the “Set SNMP Access” button from the main window for SW67420 (Fig. 2) the “Set SNMP Access” window appears (Fig. 8). In this section, it is possible to create the OIDs for SNMP side to read or write using GET and SET commands or to be sent as TRAP messages.
  • Page 22 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 22 of 34 Page 22 of 34 Industrial Electronic Devices The data of the columns in the “SNMP Write” have the following meanings: If the field “Enable” is checked, the SNMP OID is enabled;...
  • Page 23 Normal Mode. Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67420 device. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com...
  • Page 24 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67420 device. Warning: If Fig. 10 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
  • Page 25 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 25 of 34 Page 25 of 34 Industrial Electronic Devices SENDING ASYNCHRONOUS CAN MESSAGES FROM ETHERNET The converter allows to send asynchronous CAN messages (for example a NMT message) directly from Ethernet to CAN. The Ethernet message to send to the converter must have this structure: Byte Number Description...
  • Page 26 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 26 of 34 Page 26 of 34 Industrial Electronic Devices If the option “Send Back CAN messages” is not activated, it is possible to enable/disable it by sending the following UDP messages to the Tunneling Port: Byte 0 Byte 1...
  • Page 27 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 27 of 34 Page 27 of 34 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 28 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 28 of 34 Page 28 of 34 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 29 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 29 of 34 Page 29 of 34 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 30 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 30 of 34 Page 30 of 34 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
  • Page 31 Page 31 of 34 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67420 – E y z – s f Fixing lugs A: Type A B: Type B C: Type C...
  • Page 32 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 32 of 34 Page 32 of 34 Industrial Electronic Devices ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –...
  • Page 33 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 33 of 34 Page 33 of 34 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
  • Page 34 User Manual SNMP Agent / CAN - Converter Document code: MN67420_ENG Revision 1.000 Page 34 of 34 Page 34 of 34 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
