UPDATE DEVICE:

By pressing the "Update Device" button it is possible to load the created Configuration into the
device; and also the Firmware, if is necessary.
If you don't know the actual IP address of the device you have to use this procedure:
Connect the USB cable;
Connect the Ethernet cable;
Insert the IP "192.168.2.205";
Turn on the device;
Press the "Ping" button, must appear "Device Found!";
Press the "Next" button;
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK", the updating is done;
Remove the USB cable.
If you know the actual IP address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the "Ping" button, must appear "Device Found!";
Press the "Next" button;
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK" the device automatically goes at Normal Mode.
ADFweb.com Srl – IT31010 – Mareno – Treviso
firmware" button to start the upload.
firmware" button to start the upload;
User Manual PROFINET / J1939 - Converter
Document code: MN67446_ENG Revision 1.002

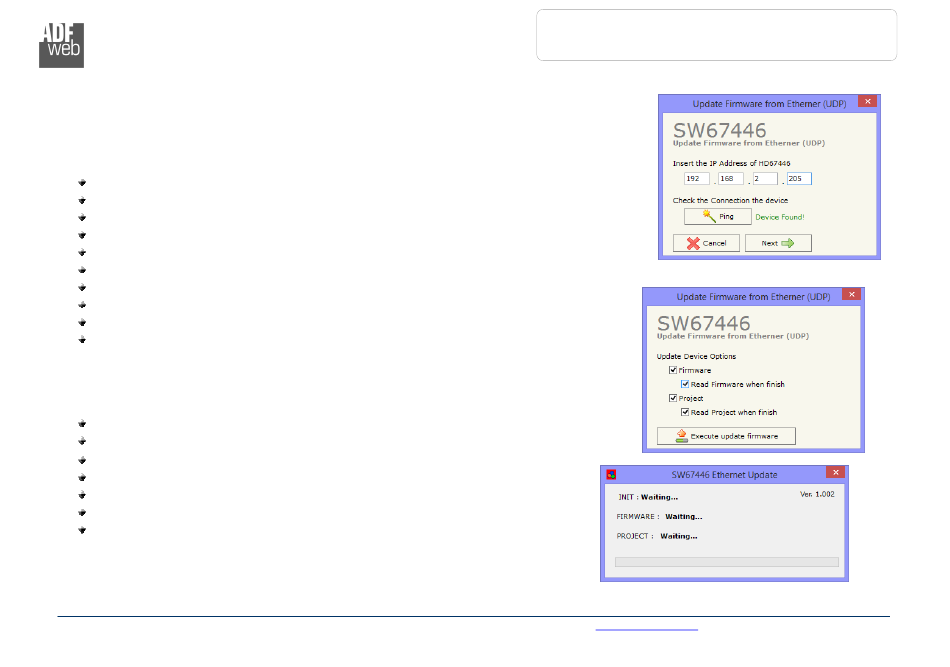

Figure 6: "Update device" windows
