User Manual IEC 61850 Server / PROFINET Slave
Document code: MN67752_ENG
Revision 1.000
Page 10 of 28
Industrial Electronic Devices
ETHERNET:

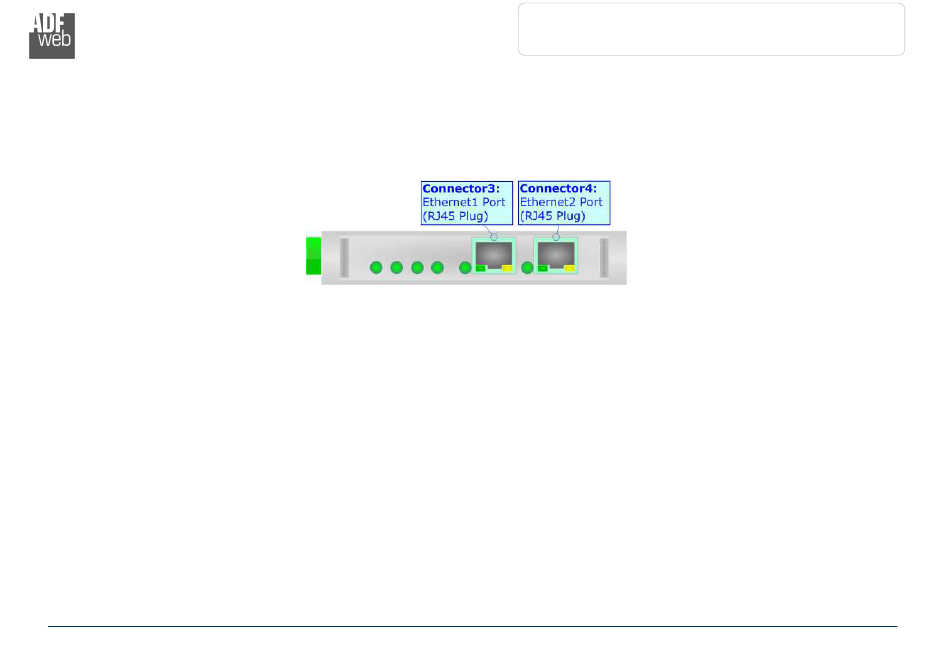

IEC 61850 connection, PROFINET connection and the updating of the converters must be made using Connector3 and/or Connector4 of the
HD67752-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the
T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight
cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
