FUNCTION MODES:

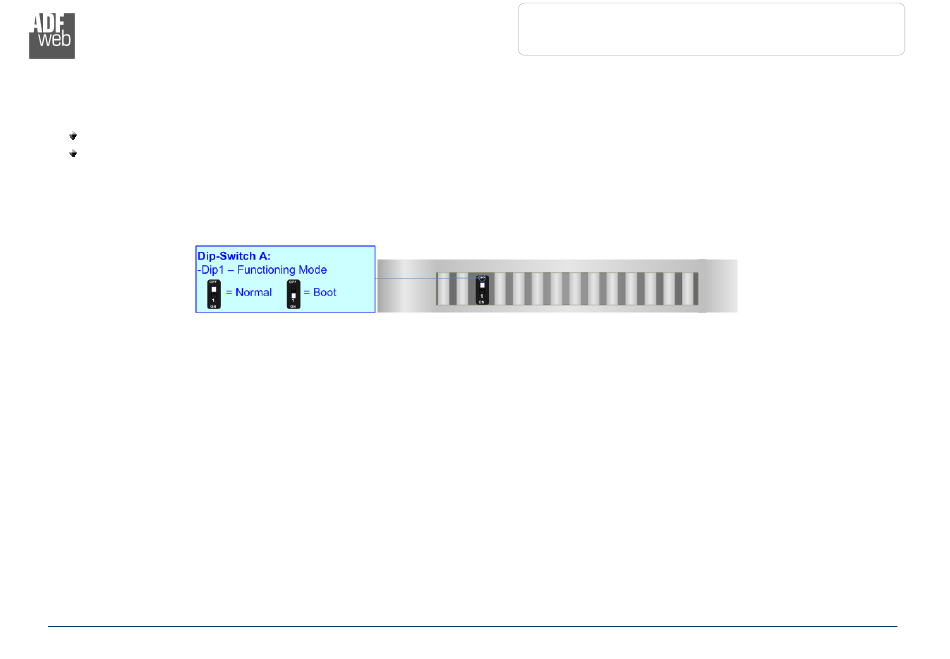

The device has got two function modes depending on the position of the 'Dip1 of Dip-Switch A':
The first, with 'Dip1 of Dip-Switch A' at "OFF" position, is used for the normal working of the device.
The second, with 'Dip1 of Dip-Switch A' at "ON" position, is used for uploading the Project and/or Firmware.
For the operations to follow for the updating, see 'UPDATE DEVICE' section.
According to the functioning mode, the LEDs will have specific functions, see 'LEDS' section.
ADFweb.com S.r.l.
User Manual IEC 61850 Server / PROFINET Slave
Document code: MN67752_ENG
Revision 1.000
Page 8 of 28
