OPERATION OF THE CONTROL

8 Operation of the Control

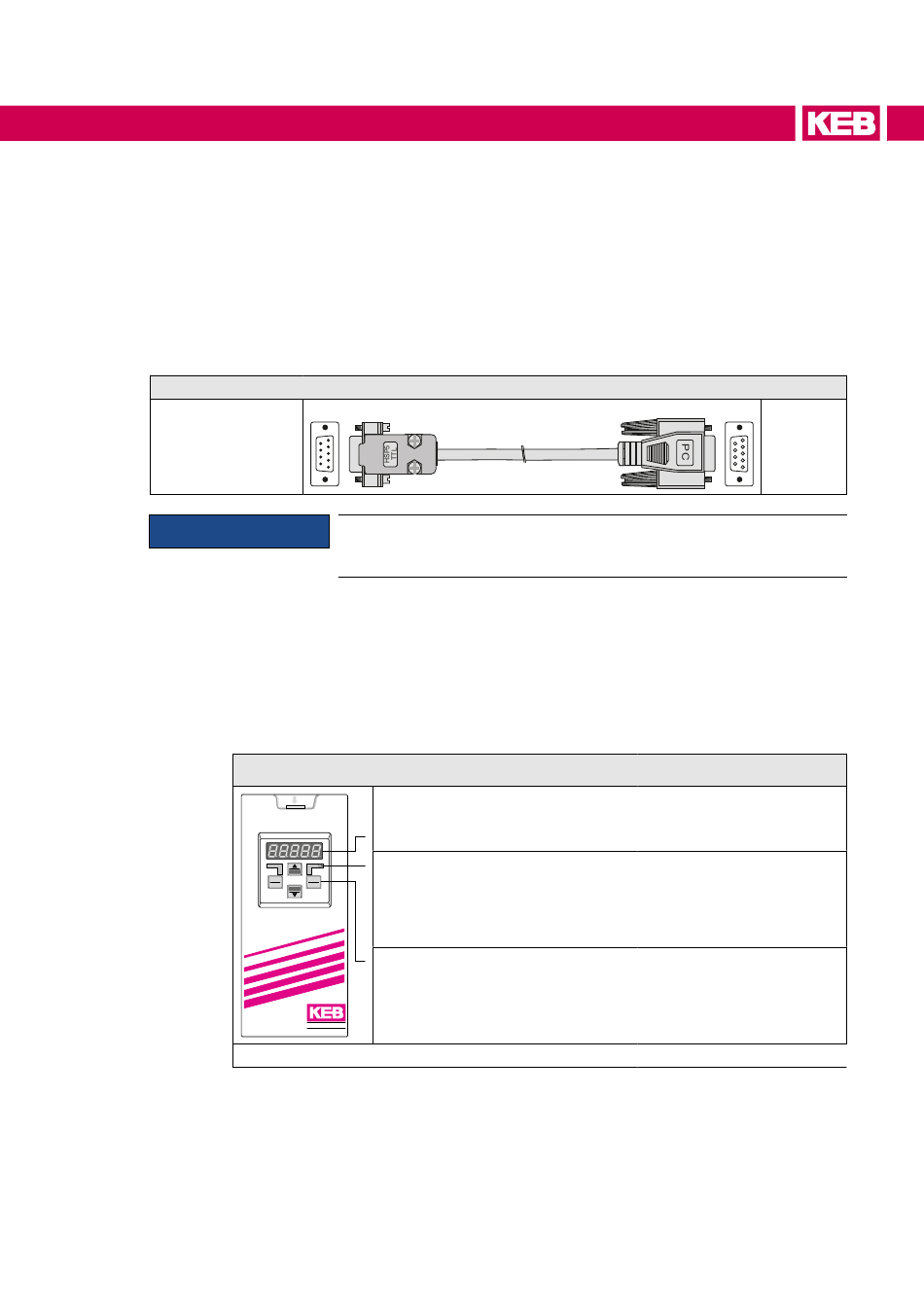

8.1 Operation without operator

A special HSP5 cable (material number 00F50C0-0010) is available for operating the
COMBIVERT without operator. The cable is connected between HSP5 interface X4A
and serial RS232 PC interface (COM1 or COM2). Operation occurs via the program
COMBIVIS 5. The KEB-USB converter or the Port-Expander is required for COMBIVIS 6.
RS232-HSP5 converter
Drive converter
X4A
NOTICE

8.2 Operation with digital operator

A digital operator is available as an accessory for local operation of the COMBIVERT. To
prevent malfunctions, the drive converter must be brought into status nOP before con-
necting / disconnecting the operator (open control release terminal). When starting the
drive converter, it is started always with the last stored values or factory setting.
Digital operator (Mat.No. 00F5060-1000)
ENTER
X6C
Figure 22:
1
6
9
5
The RS232-HSP5 service cable has an integrated level converter. The
connection of a serial standard cable would destroy the PC interface.
5-digit 7-segment display
Operating/error display
START
FUNC.
F/R SPEED
Normal "LED on"
STOP
Error "LED blinks"
Double function keyboard
C O M B I V E R T
X6D
Operation with digital operator
00F50C0-0010
PC
5
9
COM-Port
6
1
