CONNECTION OF THE CONTROL

7.1.7 Relay outputs

In case of inductive load on the relay outputs a protective circuit must be provided (e.g.
free-wheeling diode)!

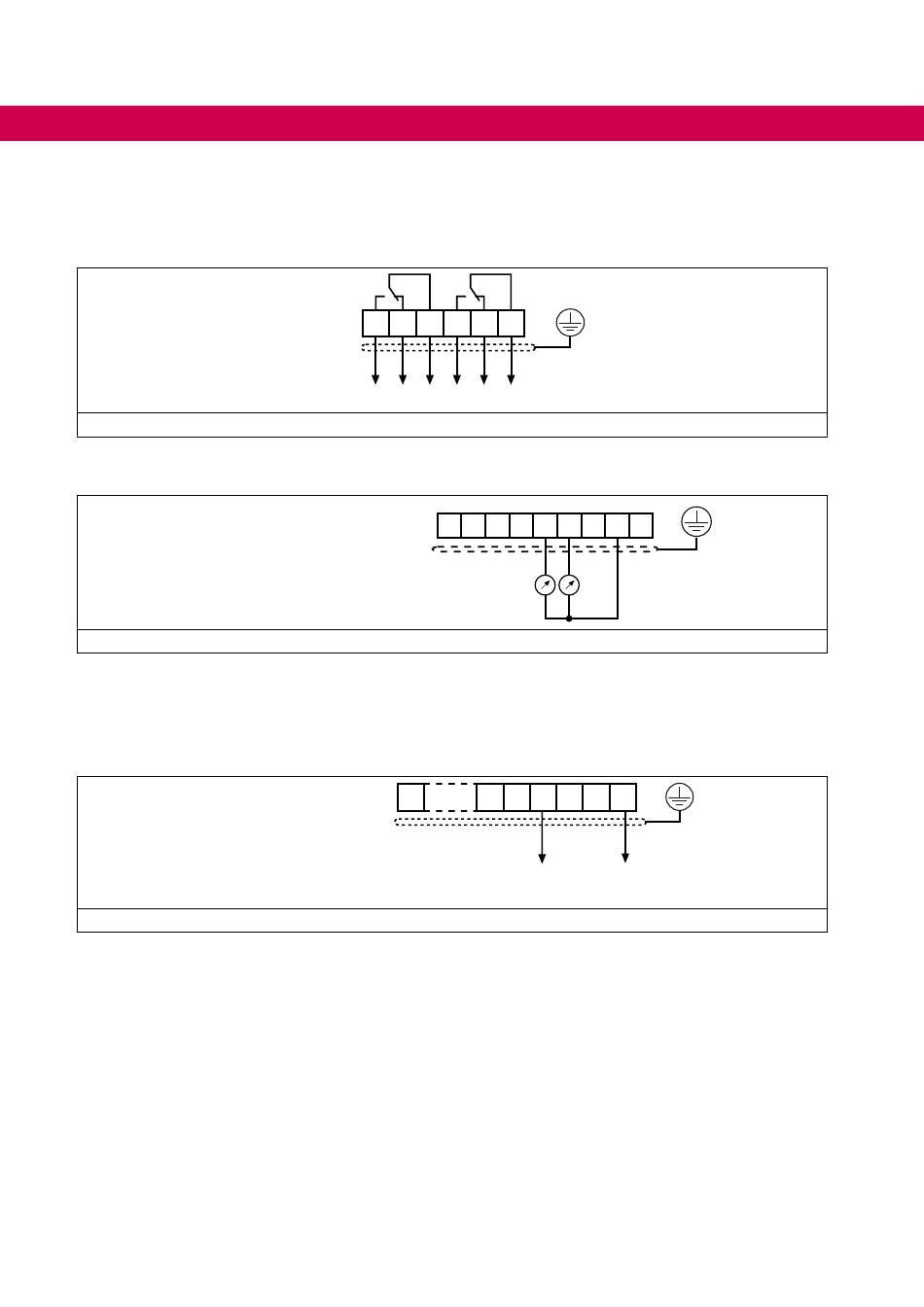

Figure 19: Relay outputs

7.1.8 Analog outputs

Figure 20: Analog outputs

7.1.9 Voltage output

The voltage output is used to control the digital inputs and for the supply of external
control elements. The maximum output current of 100 mA mA may not be exceeded.
Figure 21: Voltage output
52
X2A
24 25 26 27 28 29
max. 30 V DC / 1 A
X2A 1 2 3 4 5 6 7 8 9
: 0...±10 V DC
U
out
: 10 mA
I
max
X2A
10 18 19 20 21 22 23
+ -
ca. 24V DC / max. 100 mA
