CONNECTION OF THE CONTROL

7.1.4 Analog inputs

Connect not connected setpoint inputs to the analog ground to avoid setpoint changes !
Analog setpoint setting external
Ri = 55 k
X2A
1 2 3 4 5 6 7 8 9
+
0...±10 V DC

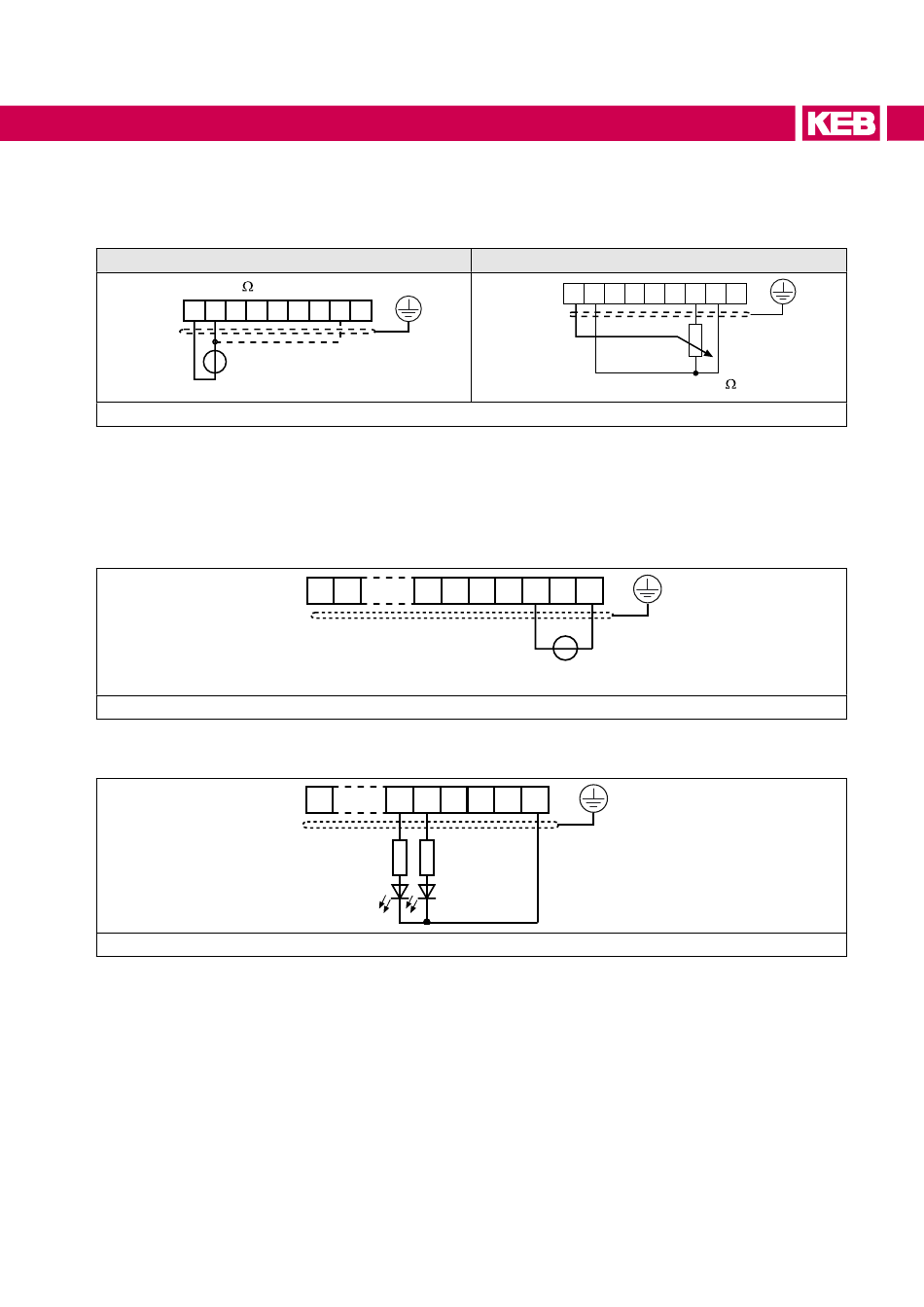

Figure 16: Analog inputs

7.1.5 Voltage input external power supply

When the power unit is switched off the control remains in operation by an external
voltage supply of the control board. To prevent undefined conditions at external power
supply, generally the supply unit and then the AIC unit should be switched on.
X2A
Figure 17: Voltage input external power supply

7.1.6 Digital outputs

X2A
Figure 18: Digital outputs
PE
10 11 17 18 19 20
20...30 V ±0 % / 1 A DC smoothed
10 18 19 20 21 22 23
Analog setpoint setting internal
X2A
1 2 3 4 5 6 7 8 9
R = 3...10 k
21 22 23
+
max. 50 mA DC for both outputs
51
