Pin assignment of the connections

5.3

Connecting the supply voltage

8021879.ZZG2 | SICK
Subject to change without notice
NOTE
Layout of data cables
Use shielded data cables with twisted-pair wires.
■
Implement the shielding design correctly and completely.
■
To avoid interference, e.g., from switching power supplies, motors, clocked drives,
■
and contactors, always use cables and layouts that are suitable for EMC.
Do not lay cables over long distances in parallel with voltage supply cables and
■
motor cables in cable channels.
The IP enclosure rating for the device is only achieved under the following conditions:
The cables plugged into the connections are screwed tight.
■
Any electrical connections that are not being used must be fitted with protective
■
caps that are screwed tight (as in the delivery condition).
Any other lids present must be closed and lie flush on the device.
■
If these instructions are not complied with, the IP enclosure rating for the device is not
guaranteed!

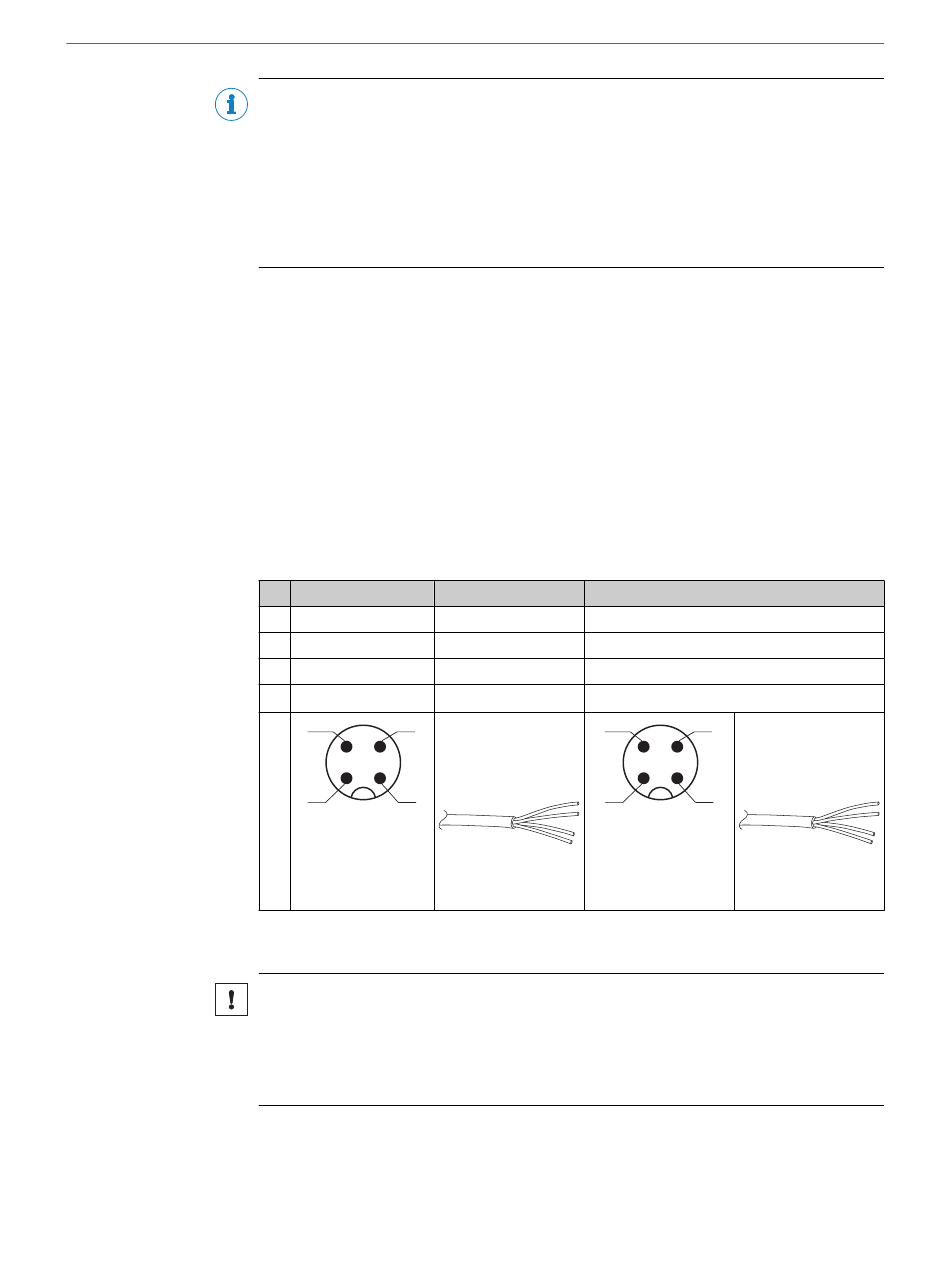

Overview of pin assignment
Table 1: M12-Stecker, 4-polig
-2X329x
1 +(L+)
2
Q
3 -(M)
4 Q
4 3
1 2
NOTICE
Risk of damage to the device!
The device can become damaged if it is connected to a voltage supply that is already
switched on.
•
Only connect the device when the supply cable is de-energized.
The device must be connected to a power supply unit with the following properties:
• Supply voltage DC 10.8 V – 28.8 V (SELV/PELV as per currently valid standards)
•
Electricity source with at least 3 W power
To ensure protection against short-circuits/overload in the customer's supply cables,
the wire cross-sections used must be appropriately selected and protected.
ELECTRICAL INSTALLATION
-2X119x
+(L+)
Q
-(M)
Q
1 = BN
4
2 = WH
3 = BU
4 = BK
1
0.09 mm
2
AWG 28
5
C-2Xxx9xAxx
+(L+)
MF
-(M)
Q /C
1
1 = BN
3
2 = WH
3 = BU
4 = BK
2
0.09 mm
2
AWG 28
