INSTALLATION OF CONTROL SENSOR AND FILTER

The profile of both profile flange seals must point towards the rotary flange fitting!
If this is not observed, the sealing may not be perfect resulting in water escaping.
This could result in water damage to the home and furnishings and equipment.
Installation of the control sensor including bayonet adapter on the rotary flange fitting
/ Insert the heads of the four flange screws of the control sensor through the bayonet holes on the ro-
tary flange fitting (see fig. 4 I).
/ Screw the control sensor fully home in a clockwise direction (see fig. 4 I).
/ Tighten the four flange screws uniformly (see fig. 4 II).
Select the tightening torque (about 4 Nm) so that the seal is effective and the con-
trol sensor is not damaged or strained!
Installation of the backwashing filter or the domestic water station at the control sensor
/ Insert the heads of the four flange screws of the backwashing protection filter or the domestic water
station through the bayonet holes on the control sensor (see fig. 4 III).
/ Screw the filter fully home in a clockwise direction (see fig. 4 III).
/ Repeatedly tighten the two screws on the front side in an alternating manner (see fig. 4 IV).
Select the tightening torque (about 6 Nm) so that the seal is effective and the
backwashing protection filter or the domestic water station is not damaged or
strained!
I
1.
2.
III
1.
2.

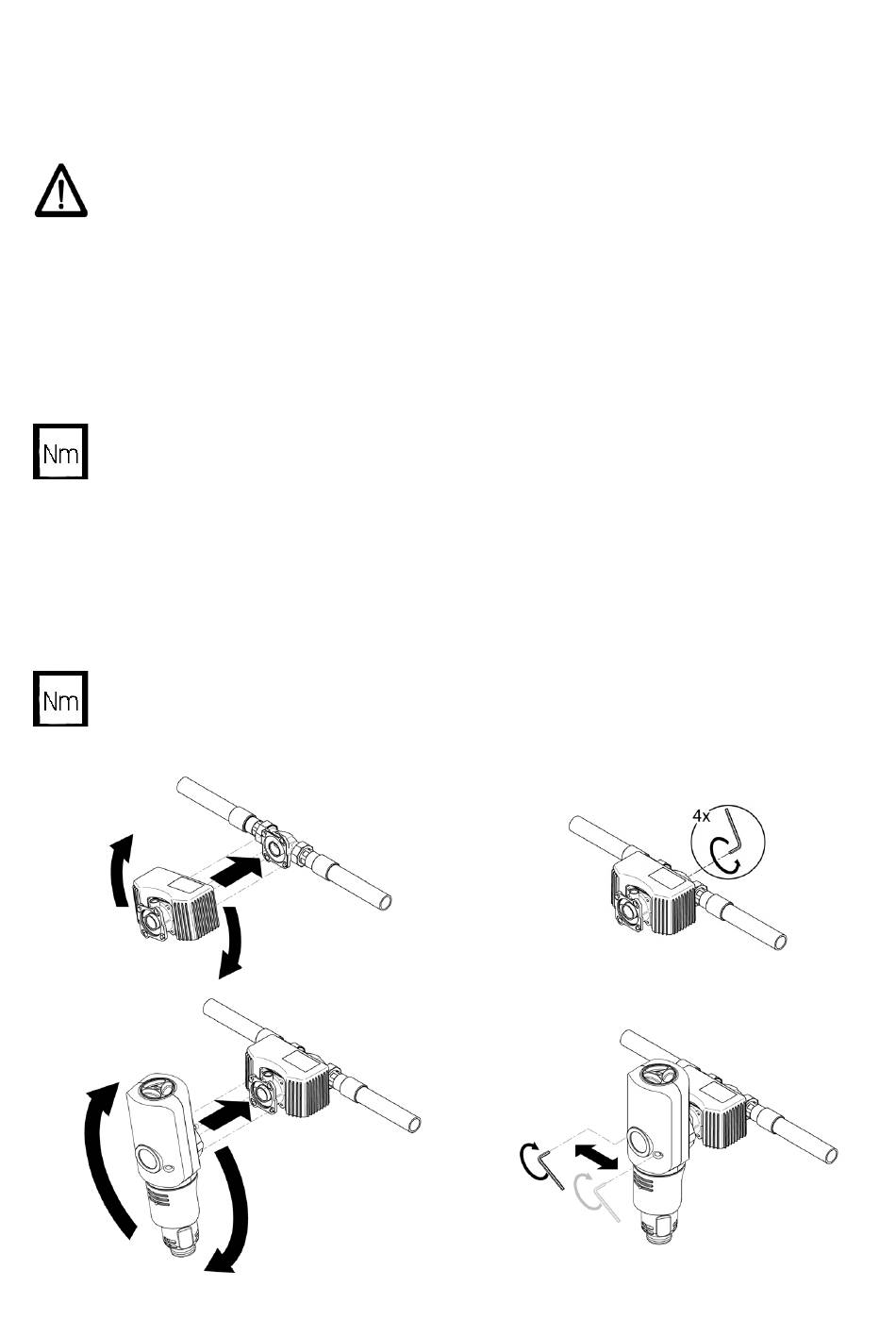

Fig. 4: Installation of control sensor and filter
35
