The mains voltage must not be interrupted (e.g. via a light switch).
If the control sensor does not have a permanent power connection,
/ a possible leak may not be identified,
/ the control sensor cannot close in the event of a leak.
5.4

INSTALLATION DIMENSIONS

The control sensor can be installed in horizontal or vertical pipes.
Installation dimensions for
combination
of the control sensor
with the following filters
B: Device width
E: Depth to pipe middle
F: Waste water connector middle
to pipe middle
All dimensions in [mm]

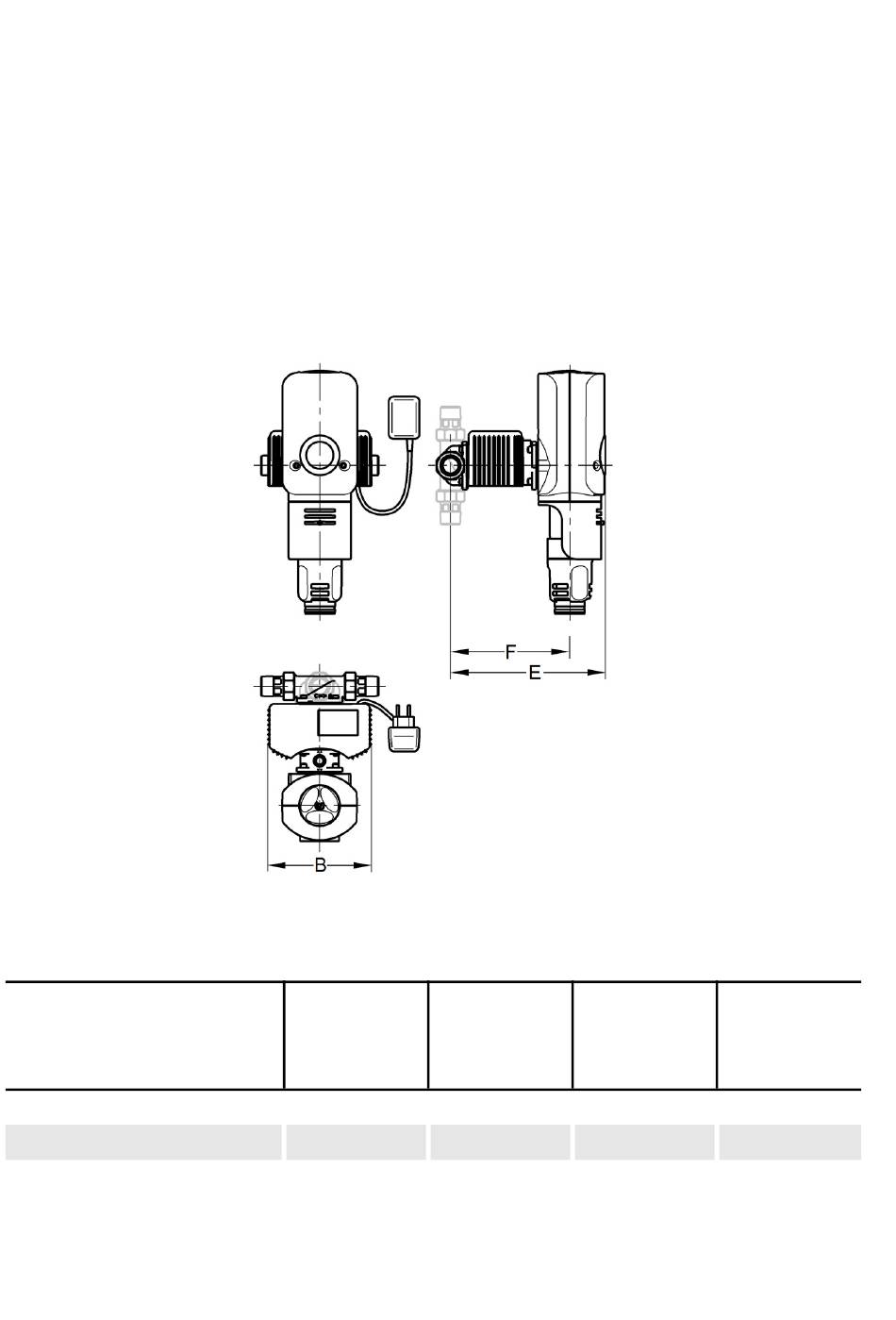

Fig. 3: Installation dimensions
CLEAR 2.0 K CLEAR 2.0 K
CLEAR 2.0 KD CLEAR 2.0 KD
¾" - 1" 1¼"
173 173
257 262
-- --
CLEAR 2.0 R CLEAR 2.0 R
CLEAR 2.0 RD CLEAR 2.0 RD
¾" - 1" 1¼"
173 173
257 262
197 202
