Relay Outputs Wiring
The following diagrams show typical use of the relay. A DC power
source is recommended whenever possible. Transient clamping must be
provided to protect the contacts and to reduce EMI emission. Use
sufficiently large wires for the load current to avoid voltage loss.
S I
ETUP NFORMATION
Jumper Description
J1 RS-485 termination, install in first and last units only
J2 Factory Use Only
J3 Two-wire/four-wire select, install in 2W position only
J4 - J9 Factory Use Only

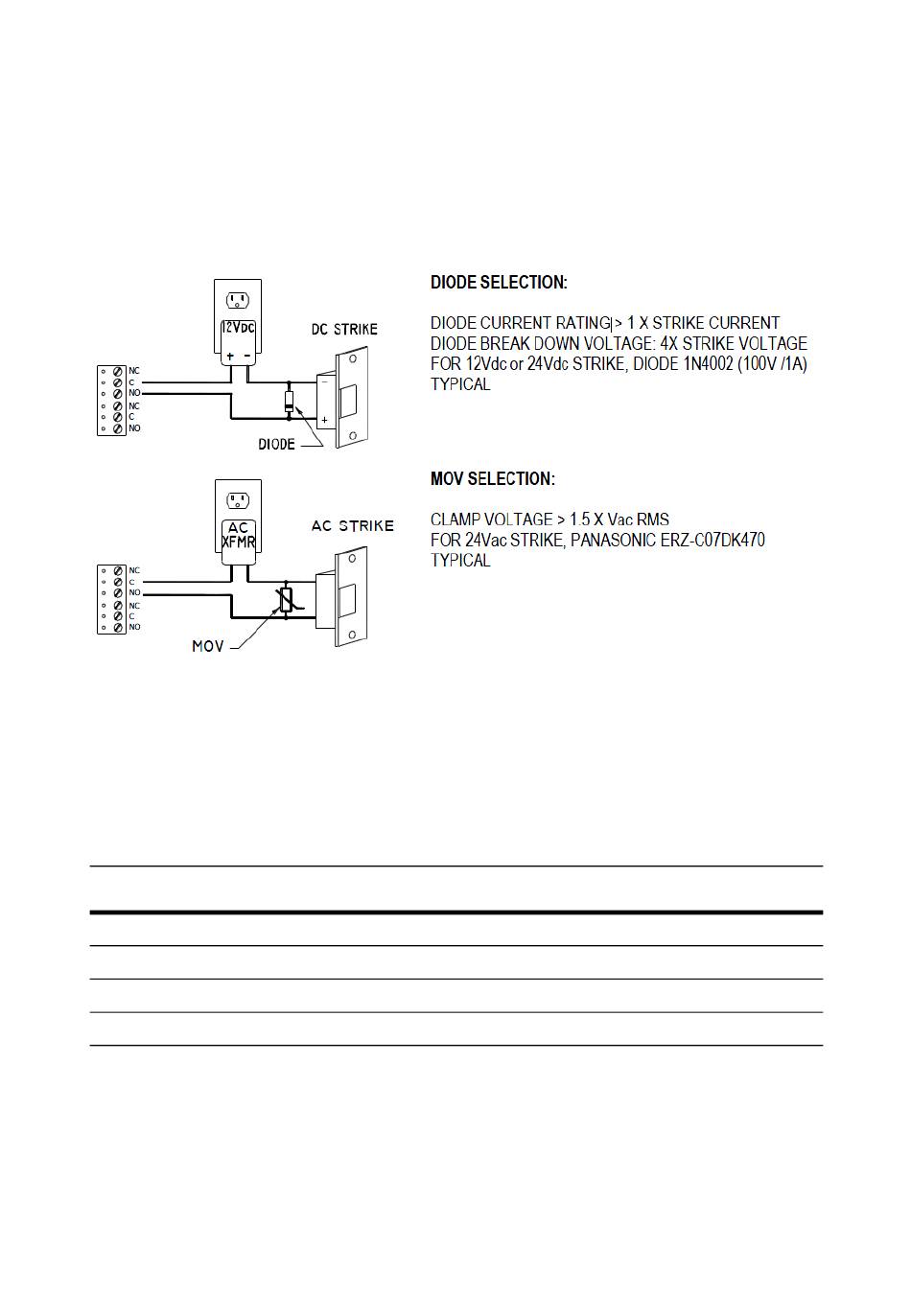

Figure 5: CKM-MR16OUT Relay Outputs Wiring
Table 1: Jumpers
