Johnson Controls P2000 Hardware Installation Instructions

P2000 Security Management System
Comark Server Hardware Installation Instructions
Introduction
This manual provides instructions for installing the P2000
Security Management System (SMS) server (product code
P2K-311-UL). A typical P2000 system consists of a Comark
server computer loaded with the required operating system,
database server, prerequisites, and P2000 software.
Additional system hardware and software are purchased
separately.
Qualification for Installation
While these instructions are intended to guide you completely
through the installation process, the technician installing these
machines should possess a reasonable level of experience
with server hardware and software, which should include
networks and networking principles, network communication,
cabling, and computer component installation.
This level of experience is necessary to determine if steps are
mistakenly omitted, completed incorrectly, or in situations
where requirements of a particular site call for system
configuration other than what is described in this manual.
Technical Support
Technical assistance is provided to Johnson Controls
authorized dealer representatives from 5 a.m. PT to 5 p.m. PT
Monday through Friday. System users can get answers to
operator questions by calling the local Johnson Controls Inc.
sales/service office.
The authorized dealer representatives can also provide you
with information on the maintenance contracts and the on-site
field service.
Package Contents and Warranty Information
Inspect the shipping containers as soon as they are received.
If any damage is observed, have the delivery agent note the
damage on the shipping document. Some shippers may wish
to be present when a damaged container is opened.
Closely examine the equipment. If the equipment is damaged
in any way, notify the carrier and a Johnson Controls®
representative immediately. Check the purchase order
against the equipment received to ensure that the order is
complete. Retain all packaging materials for possible
reshipment.
Johnson Controls-labeled products are sold with a three year
parts and shop labor warranty. Liability is limited to repair or
replacement at the discretion of Johnson Controls, Inc.

Hardware Installation

This section describes how to install the Comark server. All
boards and devices are factory installed. (Computer
configuration may differ slightly, at the manufacturer's
discretion. Adjust any installation steps or settings, as
necessary).
To install the Comark server:
1. Unpack the equipment and check for damage. See
Package Contents and Warranty Information on page 1.
Refer to the
P2000 Security Management System Comark Server Hardware Installation Instructions
QuickLIT Web site for the most up-to-date version of this document.
2. If mounting the server in a rack, install the rails with the
hardware provided. Then, mount the server in an
appropriately sized mounting rack. See Figure 1 for
dimensions.
7 in
(18 cm)
Behind the Door:
• 2 USB Ports
• Reset Switch

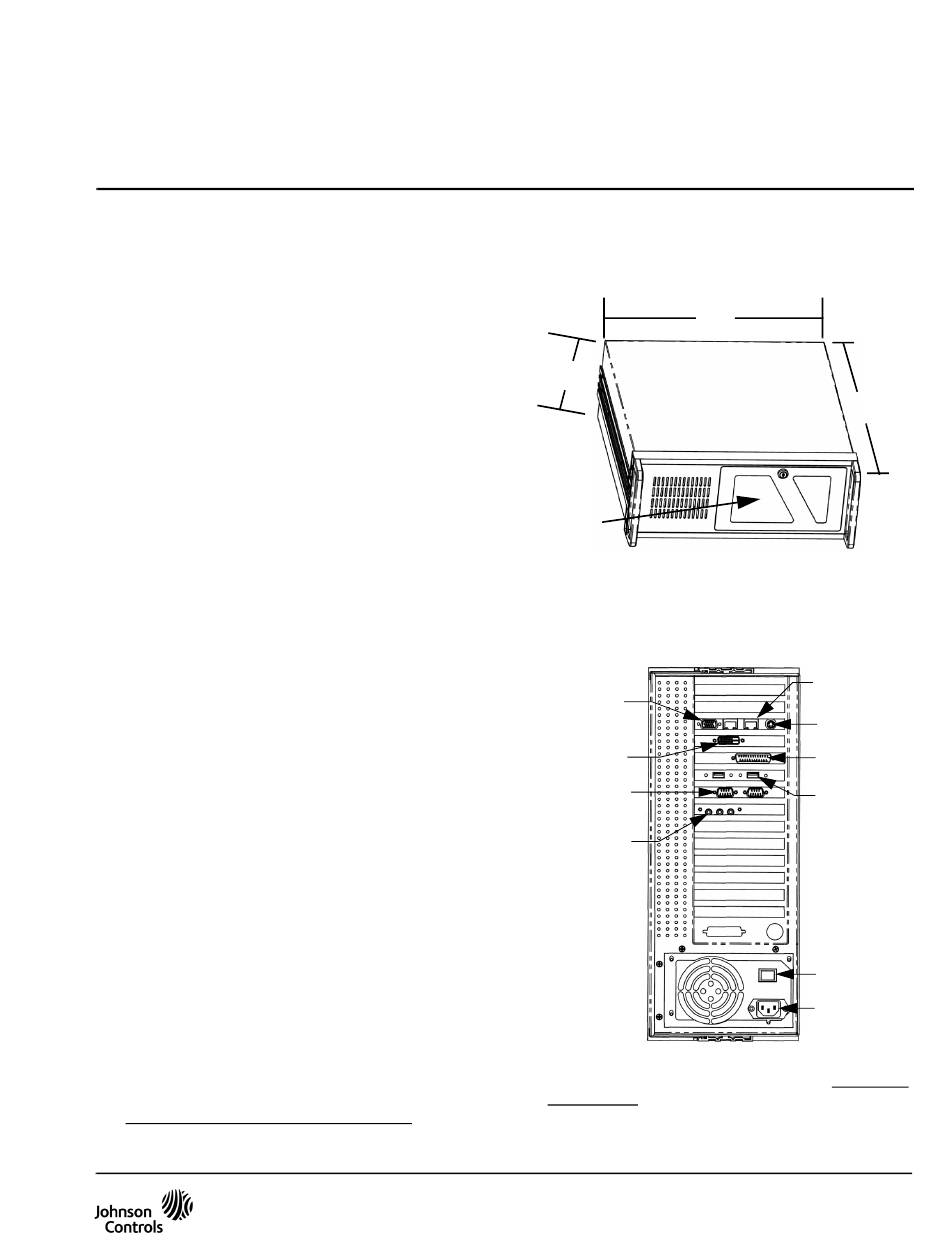

Figure 1: Dimensions and Front Panel Components
3. Connect the server to the LCD monitor using the VGA or
DVI cable provided. See Figure 2 for component
connections on the server.
VGA Connector
DVI Connector
Serial
Connector (2)
Audio Connector
Figure 2: Server Rear Panel Components
4. Connect the LCD monitor power cable. See Line Power
Requirements on page 2.
Part No. 24-10618-112, Rev. A
Issued April 20, 2012
19 in
(48 cm)
17.7 in
(45 cm)
Rear Panel
RJ-45
Connector (2)
Key/MS
Connector
Parallel Port
Connector
USB
Connector (2)
On/Off Switch
Power Cord
Connector
1
