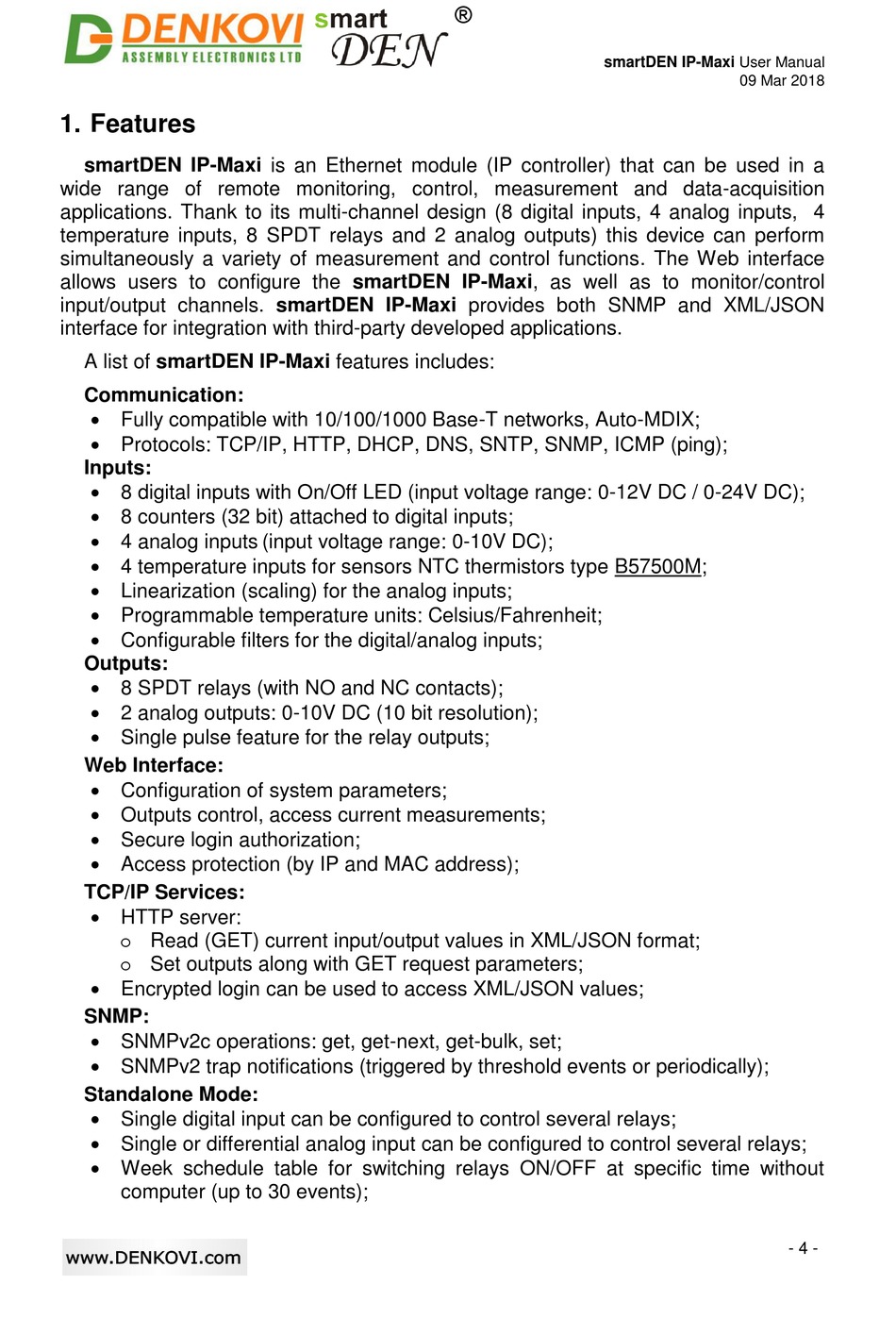

1. Features

smartDEN IP-Maxi is an Ethernet module (IP controller) that can be used in a
wide range of remote monitoring, control, measurement and data-acquisition
applications. Thank to its multi-channel design (8 digital inputs, 4 analog inputs, 4
temperature inputs, 8 SPDT relays and 2 analog outputs) this device can perform
simultaneously a variety of measurement and control functions. The Web interface
allows users to configure the smartDEN IP-Maxi, as well as to monitor/control
input/output channels. smartDEN IP-Maxi provides both SNMP and XML/JSON
interface for integration with third-party developed applications.
A list of smartDEN IP-Maxi features includes:
Communication:
 Fully compatible with 10/100/1000 Base-T networks, Auto-MDIX;
 Protocols: TCP/IP, HTTP, DHCP, DNS, SNTP, SNMP, ICMP (ping);
Inputs:
 8 digital inputs with On/Off LED (input voltage range: 0-12V DC / 0-24V DC);
 8 counters (32 bit) attached to digital inputs;
 4 analog inputs (input voltage range: 0-10V DC);
 4 temperature inputs for sensors NTC thermistors type B57500M;
 Linearization (scaling) for the analog inputs;
 Programmable temperature units: Celsius/Fahrenheit;
 Configurable filters for the digital/analog inputs;
Outputs:
 8 SPDT relays (with NO and NC contacts);
 2 analog outputs: 0-10V DC (10 bit resolution);
 Single pulse feature for the relay outputs;
Web Interface:
 Configuration of system parameters;
 Outputs control, access current measurements;
 Secure login authorization;
 Access protection (by IP and MAC address);
TCP/IP Services:
 HTTP server:
o Read (GET) current input/output values in XML/JSON format;
o Set outputs along with GET request parameters;
 Encrypted login can be used to access XML/JSON values;
SNMP:
 SNMPv2c operations: get, get-next, get-bulk, set;
 SNMPv2 trap notifications (triggered by threshold events or periodically);
Standalone Mode:
 Single digital input can be configured to control several relays;
 Single or differential analog input can be configured to control several relays;
 Week schedule table for switching relays ON/OFF at specific time without
computer (up to 30 events);
®
