smartDEN IP-Maxi User Manual
09 Mar 2018
5.3. Connecting inputs

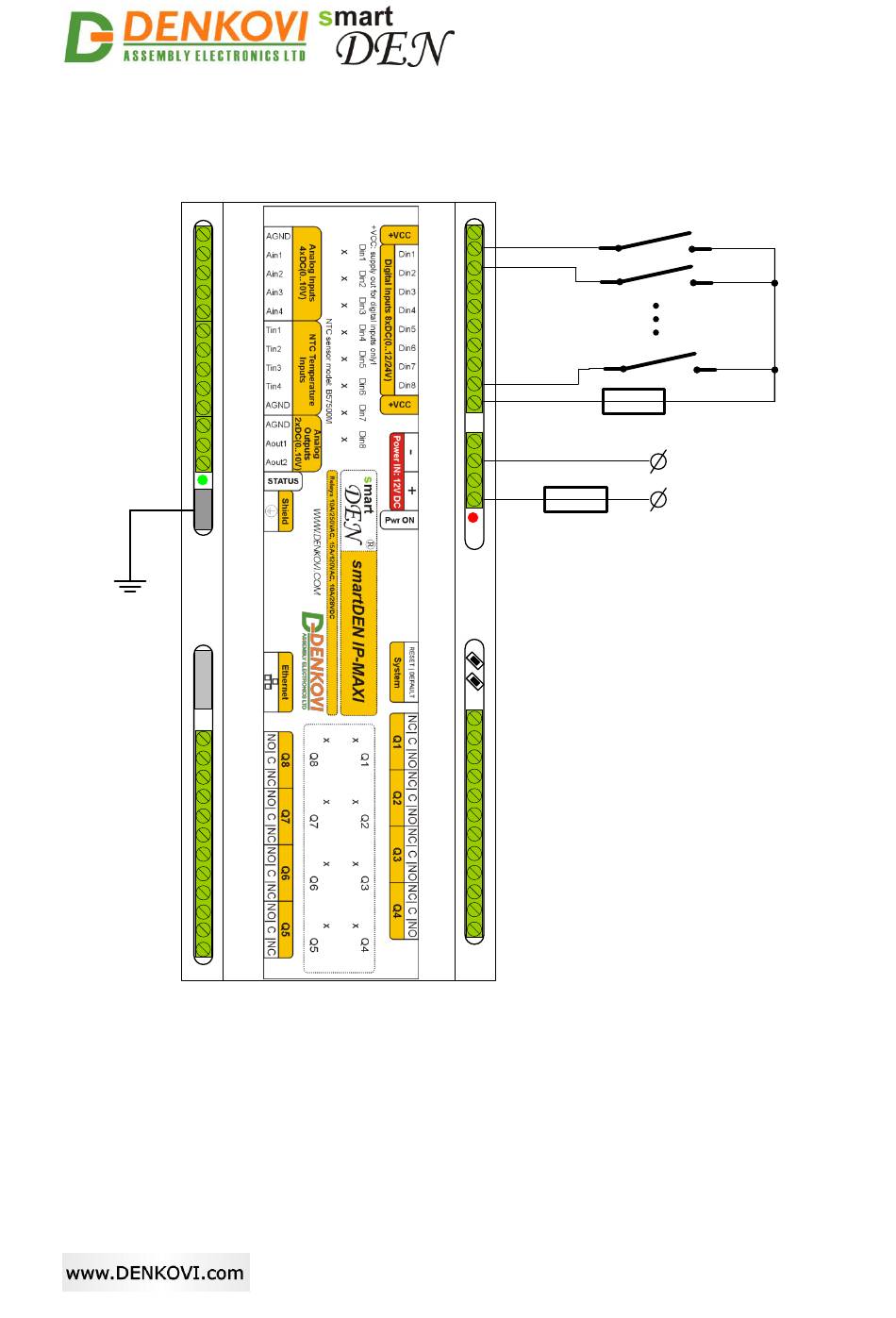

Fig. 5.3 shows the typical connection of dry contact sensors, switches, buttons,
door sensors etc. to the Digital Inputs.
Sw1
Sw2
Sw8
Fuse: 0.5A
-
12V+
Fuse: 1.5A
Figure 5.3. Connecting SPST NO output (dry contact)
sensors, switches, buttons, door sensors etc. to the Digital Inputs
- 20 -
