5. Installation

 This device must be installed by qualified personnel;
 This device must not be installed directly outdoors;
 Installation consists of mounting the device, connecting to an IP network,
connecting sensors, providing power and configuring via a web browser.
5.1. Box mounting
smartDEN IP-Maxi can be mounted to a standard (35 mm by 7.55 mm) DIN rail
(Fig. 5.1). Attach the module to the DIN rail by hooking the hook on the back of the
enclosure to the DIN rail and then snap the bottom hook into place.

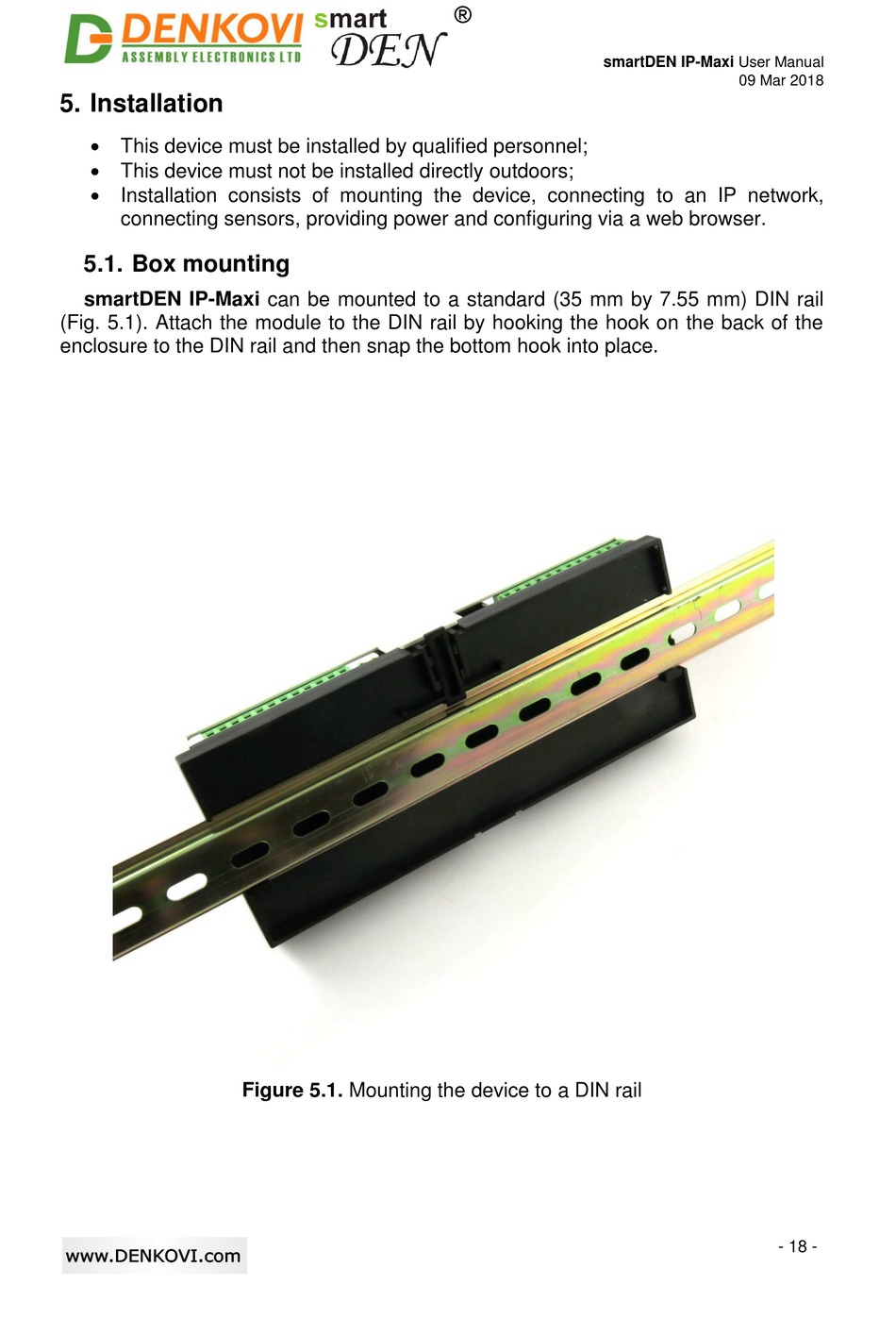

Figure 5.1. Mounting the device to a DIN rail
®
