2.4. Events counter
smartDEN IP-Maxi provides 8 x 32-bit Counters (from 0 up to 2
the Digital Inputs that can be used to count various events - for example detect when
a person enters in a shop through the door (Fig. 2.4). Upon detecting the specified
edge/level condition smartDEN IP-Maxi increments the corresponding Counter. With
suitable software and database one could easily organize a simple monitoring and
statistic system.

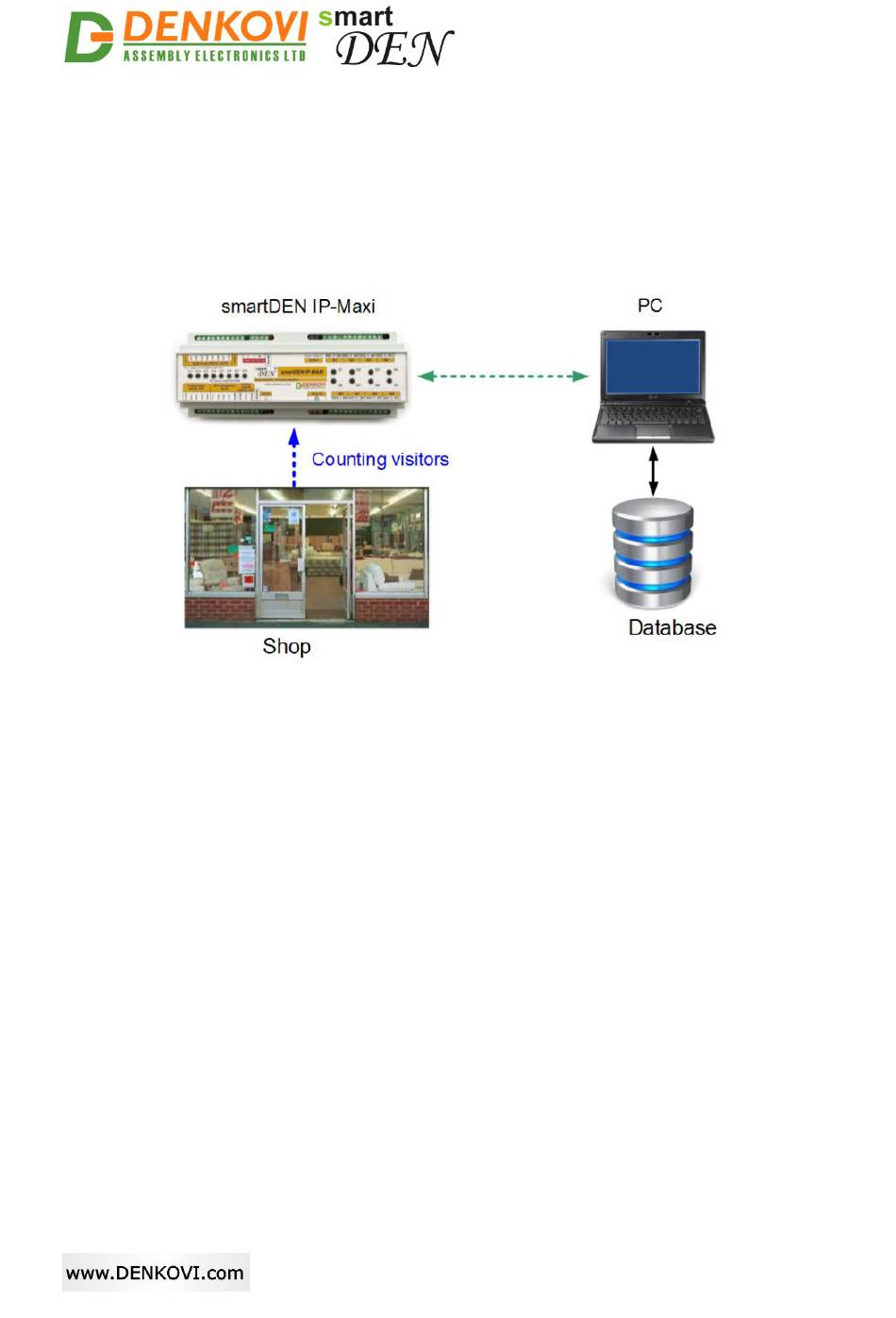

Figure 2.4. Counting visitors in a shop
®
smartDEN IP-Maxi User Manual
09 Mar 2018
32
-1) attached to
- 9 -
