Denkovi DAEnetIP2 v2 User Manual

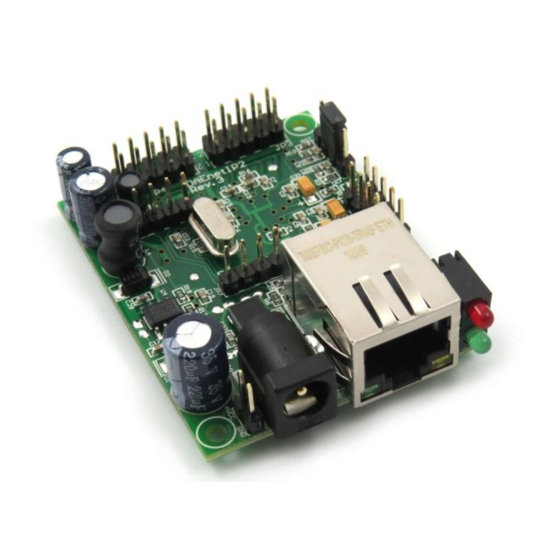

Web enabled ip controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

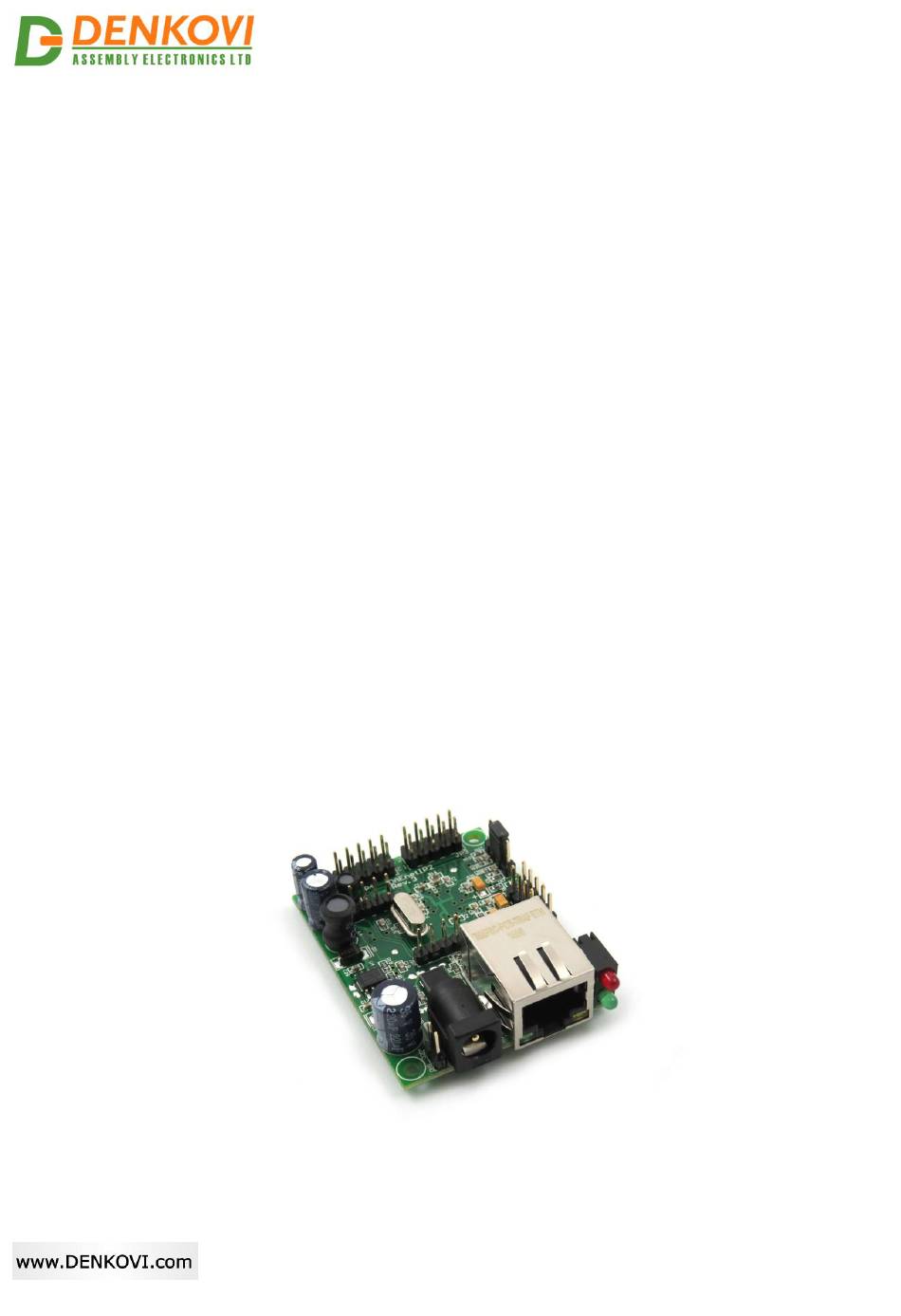

DAEnetIP2 v2 User Manual
21 Apr 2020
DAEnetIP2 v2
Web enabled IP Controller
User Manual
Date: 21 Apr 2020
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAEnetIP2 v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denkovi DAEnetIP2 v2

Summary of Contents for Denkovi DAEnetIP2 v2

  • Page 1 DAEnetIP2 v2 User Manual 21 Apr 2020 DAEnetIP2 v2 Web enabled IP Controller User Manual Date: 21 Apr 2020 - 1 -...

  • Page 2: Table Of Contents

    10. Appendix 1. Power supply ..................... 33 11. Appendix 2. DAEnetIP2 v2 installation .................. 34 12. Appendix 3. Install and power on DAEnetIP2 v2 + denkovi relay board (kit) ......36 13. Appendix 4. Port forwarding - for advanced users ..............43 14.

  • Page 3: Features

    21 Apr 2020 1. Features DAEnetIP2 v2 is a multifunctional Ethernet device (IP controller) for management and control. It could be used for industrial and home automation, access control, fire and security systems or embedding in other systems. It is also suitable for controlling relay boards and tracking different sensors via internet.

  • Page 4: Technical Parameters

    DAEnetIP2 v2 User Manual 21 Apr 2020 2. Technical parameters Table 2.1. Technical parameters Parameter Value Size 43x55mm Power supply voltage 7.5 - 25VDC CPU power supply (output level 3.3VDC) 3.3V Digital I/O count Analog inputs count 8 (10bit ADC, Vref=3.3V)

  • Page 5: Application Examples

    DAEnetIP2 v2 User Manual 21 Apr 2020 3. Application examples 3.1. Remote control Figure 3.1. Example 1 3.2. Data acquisition Figure 3.2. Example 2 - 5 -...
  • Page 6 DAEnetIP2 v2 User Manual 21 Apr 2020 3.3. Watchdog function Figure 3.3. Example 3 - 6 -...

  • Page 7: Default Settings

    4.1. Table with default settings These are the default (factory) settings of DAEnetIP2 v2. When you buy the module, you will receive it with these settings. If not, you can load the default settings (see point 4.2). Table 4.1. Default settings...
  • Page 8 DAEnetIP2 v2 User Manual 21 Apr 2020 4.2. Steps for loading default settings In case the access of the module is lost, factory (default settings) may be applied and the module parameters will be returned back as those in point 4.1 from the current document.

  • Page 9: Connectors And Ports

    DAEnetIP2 v2 User Manual 21 Apr 2020 5. Connectors and ports 5.1. DAEnetIP2 v2 ports Figure 5.1. DAEnetIP2 v2 ports - 9 -...
  • Page 10 DAEnetIP2 v2 User Manual 21 Apr 2020 5.2. DAEnetIP2 v2 ports description Table 5.1. I/O Ports Port JP3 (P3) Port JP4 (P5) Port JP5 (P6) digital outputs digital outputs (digital/analog inputs) Pin N Func Func Func Free Free Free Free...

  • Page 11: Web Access

    6. Web access Figure 6.1. Web access To access the setup pages, run a web browser (Internet Explorer, Mozilla Firefox or similar), and enter the DAEnetIP2 v2 IP address, for example: http://192.168.1.100 Figure 6.2. Open via browser Note: You will need to have JavaScript enabled in your browser.
  • Page 12 6.1. Figure 6.3. Login page Enter the password and click "Login" button. This will bring you to the DAEnetIP2 v2 main configuration page which contains details for the current firmware version and build date and provides buttons and links to obtain further details.
  • Page 13 DAEnetIP2 v2 User Manual 21 Apr 2020 Menu 6.2. The main menu consists of the following items, located in the left window frame: Figure 6.4. Navigation Menu - 13 -...
  • Page 14 DAEnetIP2 v2 User Manual 21 Apr 2020 6.3. General Settings Figure 6.5. General Settings  Inputs Pull-ups - enable pull-up resistors for P3/P5 ports when they are configured as digital inputs; SNMP: cfgPortPullUps.0  Save Outputs - when checked, each time the relays state is changed, it will be saved in non-volatile memory (EEPROM), so after reboot/restart it will be restored;...
  • Page 15 IP address; SNMP: Change its bit in cfgNewMode.0  IP address - This is the IP address of the DAEnetIP2 v2. It needs to be manually assigned only if DHCP is disabled. With DHCP enabled, this field displays the currently assigned address;...
  • Page 16  Password - the password used for web login authentication (max 12 symbols);  Access MAC Address 1/2 - DAEnetIP2 v2 has MAC protection. This means that if it is enabled it can be accessed from one/two MAC addresses. To disable the MAC protection, the MAC Address 1/2 must be 000000000000;...
  • Page 17 When using MAC filtering please note that while accessing from external networks to the DAEnetIP2 v2 module arrive packets with MAC address of the Default Gateway. In this way it must be always one of the both protected MAC addresses.
  • Page 18 6.6.1. SNMP Agent These settings let you configure the SNMPv1 (Simple Network Management Protocol) (Version 1) access to the DAEnetIP2 v2:  Agent Port - UDP port number the SNMP agent receives requests on (default port is 161). The port must be 161 or in the range from 1025 up to 65535;...
  • Page 19 SNMP trap is UDP based message and the receiving is not guaranteed. 6.7. I/O Ports Settings DAEnetIP2 v2 has 8+8 digital I/O (P3/P5) and 8 analog inputs (P6). The analog inputs may be used also for digital inputs (software conversion). Figure 6.9. I/O Settings When Input is selected, that means this pin is an input, otherwise it is configured as output.
  • Page 20 DAEnetIP2 v2 User Manual 21 Apr 2020 6.8. I/O Ports Labels Figure 6.10. I/O Ports Labels Identification string (max 7 chars) for all the I/O ports. - 20 -...
  • Page 21 If several events are generated, DAEnetIP2 v2 sends their traps in order they have been generated. The controller generates traps each 2-3 seconds when it is in alarm zone. This is because the SNMP trap is UDP based message and the receiving is not guaranteed.
  • Page 22 DAEnetIP2 v2 supports two-way (incoming/outgoing) mode for monitoring via receiving/sending ICMP echo request and ICMP echo reply packets. With this function, the DAEnetIP2 v2 module can be used as a device for active monitoring of networks and networks devices. The DAEnetIP2 v2 module performs also restart pulse if there is not answer.
  • Page 23  Port P5 Restart Pins - bit mask to select some of P5 pins as external device restart pins. Pins must be outputs in cfgP5Dir; SNMP: cfgP5DupRST.0  Reset I/O Ports on Restart - if this option is enabled DAEnetIP2 v2 will set in logical "0" all the outputs P3 and P5; SNMP: Change its bit in cfgNewMode.0...
  • Page 24 DAEnetIP2 v2 User Manual 21 Apr 2020 6.11. I/O Ports Figure 6.13. I/O Ports Control P3 and P5 are configurable digital I/O port (0-3.3VDC). It is possible to be configured by the user for its own purposes - digital inputs or outputs.

  • Page 25: Digital Outputs Setting Priorities

    DAEnetIP2 v2 User Manual 21 Apr 2020 7. Digital outputs setting priorities DAEnetIP2 v2 digital outputs can be controlled in the following ways:  Manual (via SNMP, web browser)  Using two ICMP monitoring modes  Analog events The ICMP monitoring modes have the highest priority. If there is a manual setting request, it will be ignored.

  • Page 26: Http Api

    DAEnetIP2 v2 User Manual 21 Apr 2020 8. HTTP API DAEnetIP2 v2 i/o lines can be controlled/accessed via HTTP API commands and basic access authentication is required to do that. 8.1. Control the digital outputs P3/P5 http://admin:admin@device.ip.address/iochange.cgi?ref=re-io&01=00&02=FF  admin:admin - the username:password ...

  • Page 27: Snmp Access

    OIDs. Other commands (snmpwalk for instance) are not supported. Because of the specific of the SNMP protocol supported by DAEnetIP2 v2 (it is not possible to access several OIDs), the initial setting of IP/MASK/Gateway must be done via Web. Otherwise, the DAEnetIP2 v2 module may become not reachable, because of the limitation of only one OID accessing per a time via snmp.
  • Page 28 DAEnetIP2 v2 User Manual 21 Apr 2020 Restart_on_incoming_pi ng_timeout _BIT4 Restart_TargetRST _BIT6 Disable_Digital_filter_for _ADC _BIT7 x.9.1.10.0 cfgReset read-only Read of this OID causes INTEGER rest of DAEnetIP2 v2 module x.9.1.11.0 cfgNewMode read-write Contains additional bit INTEGER(0..255) flags for DAEnetIP2 v2...
  • Page 29 DAEnetIP2 v2 User Manual 21 Apr 2020 listen port for Web INTEGER(0..65535) server. Allowed values 80 and >1024 x.9.1.23.0 cfgSNMPport read-write (fw>=4.094) Defines INTEGER(0..65535) listen port for SNMP server. Allowed values 161 and >1024 x.9.1.25.0 cfgP3Dir read-write Bit mask with direction INTEGER(0..255)
  • Page 30 DAEnetIP2 v2 User Manual 21 Apr 2020 x.9.1.122.10.0 atrPin5High read-write Pin high threshold INTEGER(0..1023) x.9.1.122.11.0 atrPin6Low read-write Pin low threshold INTEGER(0..1023) x.9.1.122.12.0 atrPin6High read-write Pin high threshold INTEGER(0..1023) x.9.1.122.13.0 atrPin7Low read-write Pin low threshold INTEGER(0..1023) x.9.1.122.14.0 atrPin7High read-write Pin high threshold INTEGER(0..1023)
  • Page 31 DAEnetIP2 v2 User Manual 21 Apr 2020 pin when voltage is compared to thresholds x.9.1.121.9.0 aevPin1Inv read-write Invert respective pin INTEGER { None(0), for P5 on analog Inverted(1) } event x.9.1.121.10.0 aevPin2Inv read-write Invert respective pin INTEGER { None(0), for P5 on analog...
  • Page 32 DAEnetIP2 v2 User Manual 21 Apr 2020 byte 9.5. Control port P5 (Digital outputs) Table 9.5. Control port P5 Name Access Description Syntax x.9.2.2.1.0 pctrlP5pin1 read-write Port5 pin1 data INTEGER { High(1), Low(0) } x.9.2.2.2.0 pctrlP5pin2 read-write Port5 pin2 data INTEGER { High(1), Low(0) } x.9.2.2.3.0...

  • Page 33: Appendix 1. Power Supply

    The voltage polarity is tip "center positive"! The device does not protection against reverse polarity voltage! Other supply voltages than described may damage the device! Figure 10.1. Power supply polarity Figure 10.2. DAEnetIP2 v2 power supply jack - 33 -...

  • Page 34: Appendix 2. Daenetip2 V2 Installation

    11. Appendix 2. DAEnetIP2 v2 installation Note these steps are for power on only DAEnetIP2 v2. For installation DAEnetIP2 v2 + relay board (kit), first you must do the steps from Appendix 3 and then do the steps from point 11.1 or point 11.2.
  • Page 35 3. Click submit and wait about 5 seconds 4. Power off the device 5. Now you may disconnect the UTP crossover cable from the DAEnetIP2 v2 and your computer 6. Connect the DAEnetIP2 v2 module and the network router with UTP straight cable.

  • Page 36: Appendix 3. Install And Power On Daenetip2 V2 + Denkovi Relay Board (Kit)

    DAEnetIP2 v2 can be used successfully in combination with relay boards. Bellow are given instructions how to connect and power on kits (DAEnetIP2 v2 + cable + relay board). You can view the kits with DAEnetIP2 v2 www.denkovi.com. The steps (instructions) are valid for only for kits with DAEnetIP2 v2 + cable + relay board from Denkovi Assembly Electronics LTD without matter how many relays is the kit.
  • Page 37 Figure 12.3. Connecting UTP cable to router 3. Connect the flat cable IDC connector to DAEnetIP2 v2 ports. By default when you receive the denkovi kit you should have the DAEnetIP2 v2 connected with the cable. If not please contact with us.
  • Page 38 DAEnetIP2 v2 User Manual 21 Apr 2020 3.3. Internet/Ethernet 2 Channel relay board. The relay board is connected to P5.7 and P5.8 pins. Figure 12.6. Connecting cable for 2 channel relay board 4. Connect each "In" labeled wire into the referred screw terminal of the relay board. For example "In 1"...
  • Page 39 For example bellow it is shown 8 channel relay board. The same is for the rest relay boards. Figure 12.8. Connecting the GND wire to the relay board 6. Connecting power supply Figure 12.9. Plug the power supply jack into DAEnetIP2 v2 - 39 -...
  • Page 40 6.1. Single power supply. You can supply the kit with single power supply source. In this case it is 12VDC. If you have 24V relay board version, then you must use 24VDC single power supply source (DAEnetIP2 v2 accept from 7.5V - 25V) Power source...
  • Page 41 8. In case of success you have to see this when you power on the kit Figure 12.13. DAEnetIP2 v2 leds. The link led (top) is blinking and the bottom led by default shows the power on and it is constantly on.
  • Page 42 DAEnetIP2 v2 User Manual 21 Apr 2020 Figure 12.14. Relay board power led is on constantly. Figure 12.15. The kit in working condition. The same is for the other kits. - 42 -...

  • Page 43: Appendix 4. Port Forwarding - For Advanced Users

    SNMP port, by default 161 o HTTP port, by default 80 DAEnetIP2 v2 will accept any valid integer number for port >1025 and <65535. Port numbers from 0 to 1024 will be accepted as 161. The same is with port 80.

  • Page 44: Appendix 5. Software

    DRM Software Denkovi Relay Manager (DRM) is universal software for easy controlling all kinds of Denkovi USB, VCP and SNMP and TCP/IP relay boards. It may be used with DAEnetIP2 v2+relay board. Figure 14.1. DRM software Software web page -...
  • Page 45 Net-snmp is command line tool for accessing SNMP based network devices under windows console. By default it is not included in Windows OS. DAEnetIP2 v2 can be easily accessed by the net-snmp tool. This is very useful when the snmp commands must be executed from batch file for example.
  • Page 46 14.2.3. Example commands  SNMPGET examples Get DAEnetIP2 v2 IP address snmpget -v1 -c 000000000000 192.168.1.100 Denkovi.DAEnetIP2 v2.Configuration.cfgIP.0 snmpget -v1 -c 000000000000 192.168.1.100 .1.3.6.1.4.1.42505.9.1.1.0 Get the MAC Address snmpget -v1 -c 000000000000 192.168.1.100 Denkovi.DAEnetIP2 v2.Configuration.cfgMAC.0 snmpget -v1 -c 000000000000 192.168.1.100 .1.3.6.1.4.1.42505.9.1.2.0 Get P6.1 - This will read analog input 1 level.
  • Page 47  SNMPSET examples Set DAEnetIP2 v2 IP address snmpset -v1 -c private 192.168.1.100 Denkovi.DAEnetIP2 v2.Configuration.cfgIP.0 a 172.16.100.3 snmpget -v1 -c private 172.16.100.3 .1.3.6.1.4.1.42505.9.1.1.0 a 172.16.100.3 Set P3.1 - This will set pin 1 from digital output port P3 in '0' (Low level) snmpset -v1 -c private 192.168.1.100 .1.3.6.1.4.1.42505.9.2.1.1.0 i 0...
  • Page 48 DAEnetIP2 v2 User Manual 21 Apr 2020 14.4. Third Party Software Since DAEnetIP2 v2 supports SNMPv1 and HTTP API protocols, it is possible to be integrated in third party applications like: 14.4.1. Domoticz Figure 14.3. Domoticz OpenHAB 14.4.1. Figure 14.4. OpenHAB...
  • Page 49 DAEnetIP2 v2 User Manual 21 Apr 2020 14.4.2. Node-RED Figure 14.5. Node-RED - 49 -...

  • Page 50: Appendix 9. Digital I/O Ports (P3/P5)

    15. Appendix 9. Digital I/O ports (P3/P5) This section describes how to use DAEnetIP2 v2 P3/P5 - 8 bit TTL IO port lines. They are not buffered and you should very carefully otherwise the MCU could be damaged. They are digital inputs/outputs.

  • Page 51: Appendix 10. Using Analog Inputs Port (P6)

    However they are useless if the resistor R1 is not connected in the way shown on the figure. In order to protect each analog input and the whole DAEnetIP2 v2 it is strongly recommend to connect R1 resistor (with value 22K for example) to each analog input (P6.x). Using analog input without such resistor may cause easy overvoltage or reverse voltage and damage of the controller Figure 16.1.

  • Page 52: Appendix 11. Using Analog Temperature Sensors

    The biggest disadvantage of LM335 is the high output voltage during 25°С – 3V. As DAEnetIP2 v2 ADC works in range of 0-3.3V, actually with directly connected LM335 it is not possible to measure temperatures over 57°С. Moreover, the output of LM335Z can exceed 3.3V and damage the ADC channel.
  • Page 53 LM335. The only disadvantage is the minimal voltage is 4VDC and this makes the connection to DAEnetIP2 v2 more difficult (it cannot be connected directly with only single IDC connector to P6). The 27K resistor acts like protection of the analog input P6.X and it is strongly recommend.
  • Page 54 21 Apr 2020 17.3. MCP9700A Figure 17.3. DAEnetIP2 v2 and MCP9700A This sensor – MCP9700A works in range 2.3 – 5.5V and that allows to be supplied from 3.3V pin which is mapped to P6 jumper. Generally its parameters are better than the LM335Z and LM35DZ.

  • Page 55: Appendix 12. Mechanical Drawing

    DAEnetIP2 v2 User Manual 21 Apr 2020 18. Appendix 12. Mechanical drawing Figure 17.4. Mechanical drawing - 55 -...

  • Page 56: Appendix 12. Differences Between Daenetip2, Daenetip2 Rev2 And Daenetip2 V2

    DAEnetIP2 v2 User Manual 21 Apr 2020 19. Appendix 12. Differences between DAEnetIP2, DAEnetIP2 rev2 and DAEnetIP2 v2 Please take a look at this link: http://denkovi.com/comparison-between-daenetip2-controllers more information. - 56 -...

  • Page 57: Disclaimer

    Denkovi Assembly Electronics LTD products are not designed, authorized or warranted to be suitable for use in applications where failure or malfunction of an Denkovi Assembly Electronics LTD product can result in personal injury, death, property damage or environmental damage.
