smartDEN IP-Maxi User Manual
09 Mar 2018
Another possible application for smartDEN IP-Maxi is differential thermo-regulator
very useful in cases when solar hot water panel must be monitored and controlled
based on two temperature sensors values. The first sensor monitors the temperature
of the panel water and the second monitors the temperature from the boiler water. If
the boiler water is cooler than the panel water, the valve is opened and the hot water
from the panel comes in to the boiler.

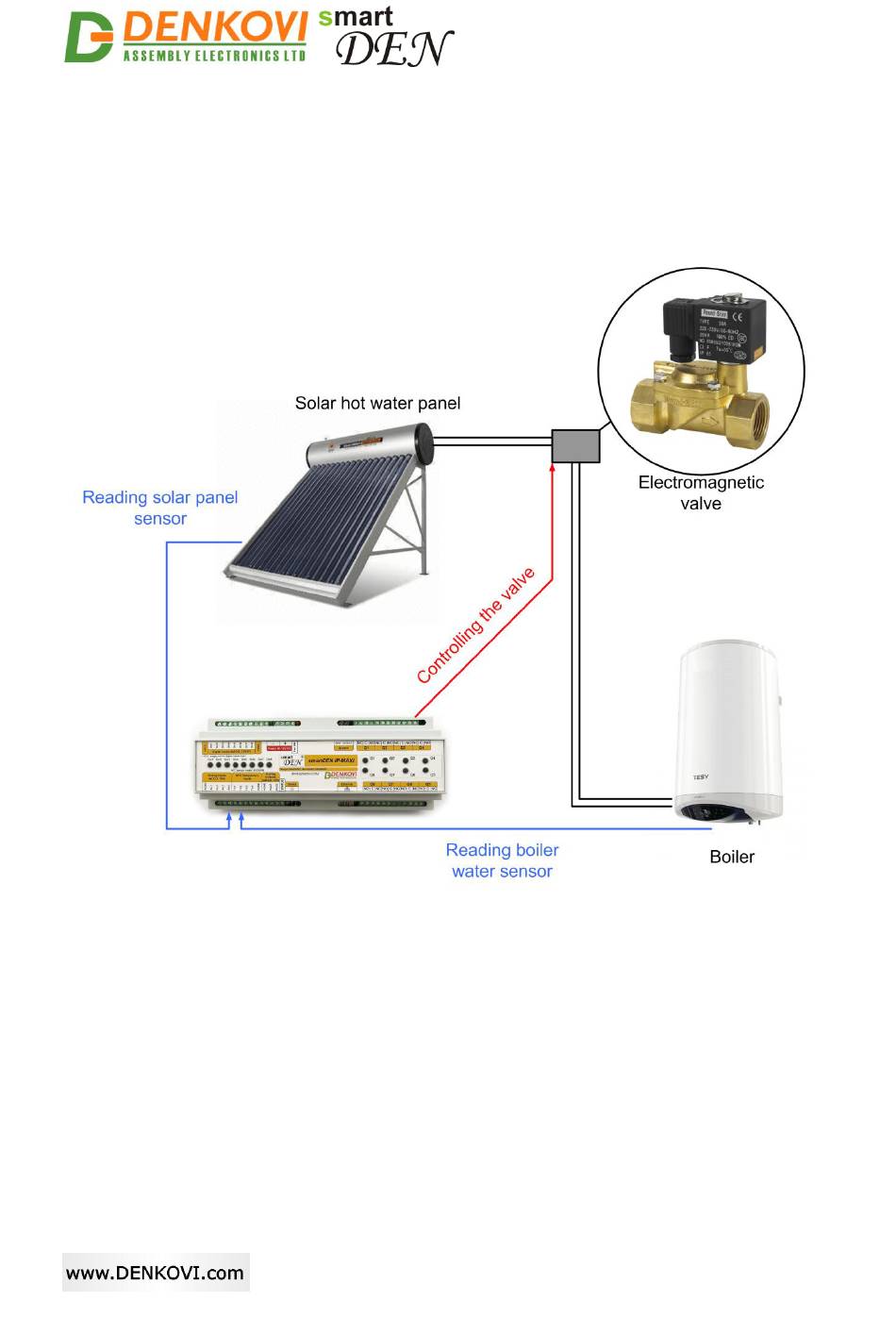

Figure 2.6. Differential thermo-regulator
- 11 -
