When connecting sensors with PNP output they can be powered from the
additional internal 12V DC power source (Fig. 5.4).

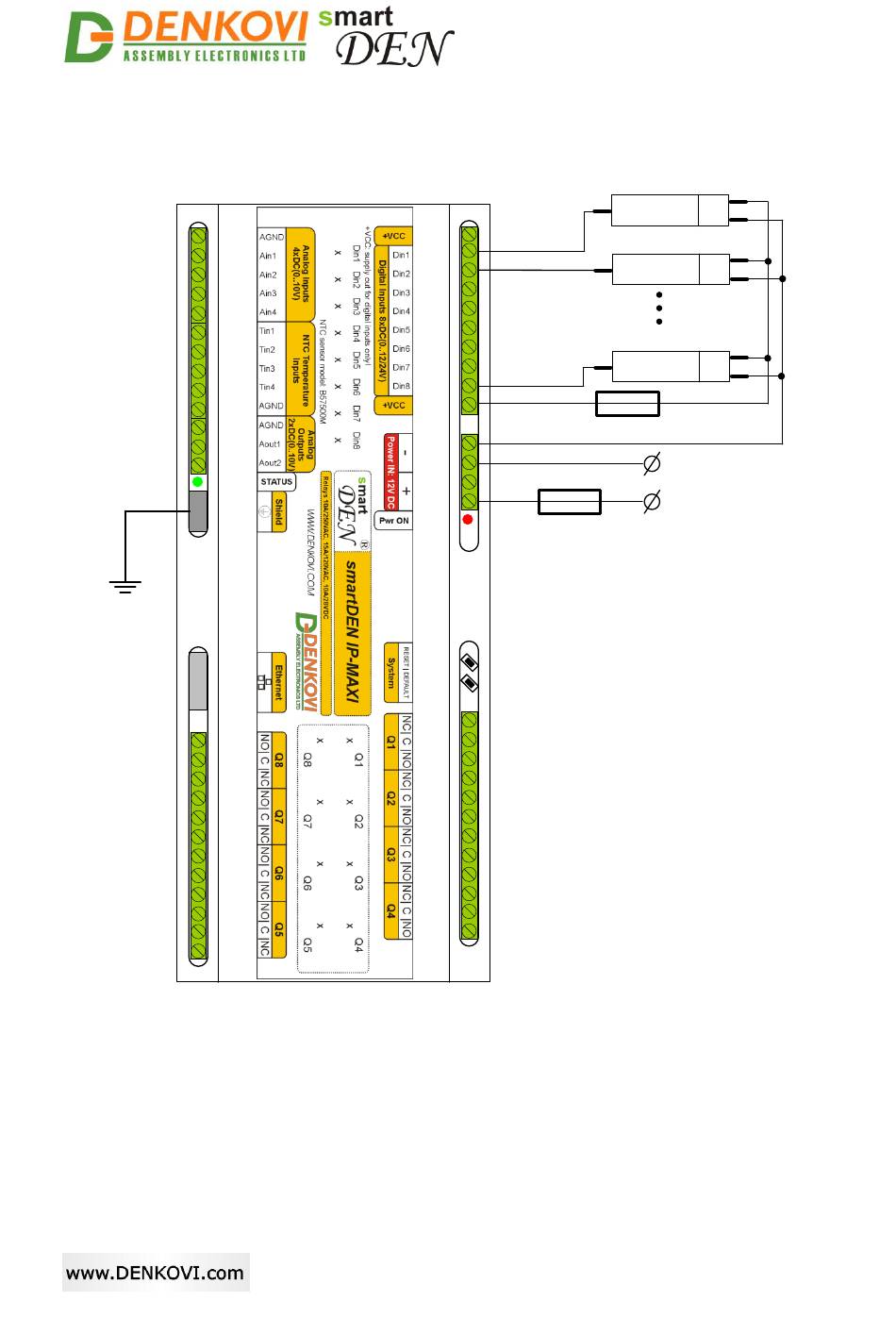

Figure 5.4. Connecting PNP output digital sensors requiring power supply voltage
®
12V DC to the Digital Inputs
smartDEN IP-Maxi User Manual
Sensor1
PNP OUT
Sensor2
PNP OUT
Sensor8
PNP OUT
Fuse: 0.5A
-
12V+
Fuse: 1.5A
09 Mar 2018
+
-
+
-
+
-
- 21 -
